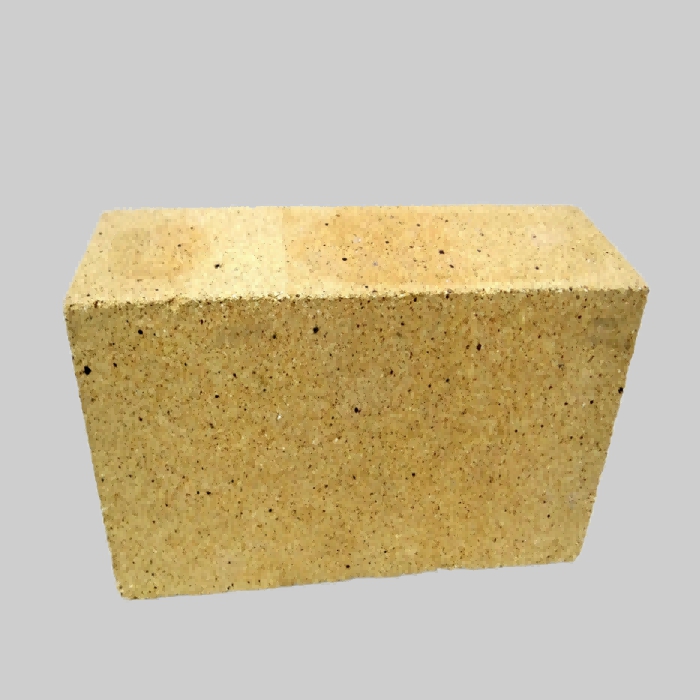

Product description
Fire clay block have strong corrosion resistance: clay and kaolin in clay refractory brick materials contain high silicate and aluminate, which can resist various acids, alkali, salt and other chemical corrosion, so it is widely used in chemical industry, metallurgy, electric power and other fields.
Advantages of fire clay block
Metallurgical industry: fire clay block can be used in iron furnaces, steel furnaces, blast furnaces, ladle, converter, electric furnaces and other metallurgical equipment lining, furnace bottom, hot air duct and other parts.
Chemical industry: fire clay block can be used in oil refining, fertilizer, ethylene and other chemical equipment lining, reactors, pipelines, heating furnaces and other parts.
Physical and chemical index of fire clay block
|
Items |
Index |
|
||||||||
|
/ |
N-1 |
N2a |
N2b |
N-3a |
N-3b |
N-4 |
N-5 |
N-6 |
||
|
Refractoriness /℃≥ |
1750 |
1730 |
1730 |
1710 |
1710 |
1690 |
1670 |
1580 |
||
|
0.2Mpa Refractoriness under load(RUL)/℃≥ |
1400 |
1350 |
/ |
1320 |
/ |
1300 |
/ |
/ |
||
|
Reheating linear change/℃(1500℃,2h) |
1400℃,2h |
+0.1 -0.4 |
+0.1 -0.5 |
+0.2 -0.5 |
/ |
/ |
/ |
/ |
/ |
|
|
1350℃,2h |
|
|
|
+0.2 -0.5 |
+0.2 -0.5 |
+0.2 -0.5 |
+0.2 -0.5 |
|
||
|
Apparent porosity/% ≤ |
22 |
24 |
26 |
24 |
26 |
24 |
26 |
28 |
||
|
CCS/Mpa ≥ |
30 |
25 |
20 |
15 |
15 |
20 |
15 |
15 |
||
Packages:

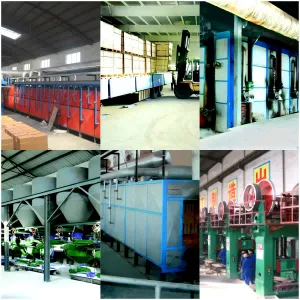

CH Refractories have advanced refractory products manufacturing process equipment and raw material preparation system, batching using electronic batching car, mixing using 750 forced mixer, molding equipment: 2 sets 1000 tons of brick press , 4 sets 630 tons of brick press, 14 sets 400 tons of brick press , 22 sets 315 tons of brick press, 2 sets 160 tons of brick press ,8 sets 60 tons of brick press . Also have a full set of refractories conventional testing equipment, can ensure the quality before sending products to customers.
01
High Quality
The production process of CH Refractories is in strict accordance with ISO9001 international quality system standards.
02
Exporting Area
Middle east, South America, Middle Asia, Southeast Asia, Africa and other regions.
03
Professional Team
More than 30 years manufacturing experience and 10 years exporting experience
04
Custom Service
Integrated factory strength to support all kinds of refractory products customization
FAQ
Q: How can I get price at soonest?
Q: Can I get sample for testing?
Q: What is MOQ of your product?
Q: How can you guarantee your products quality
Q: Which countries you mainly exporting to?
Q: How long is the production time?
Q: What payment term you can accept?
Q: Can you do OEM? Or customized packages?
Q: Can I visit your factory?
