CCM Refractories

Your Leading CCM Refractories Supplier

Zhengzhou Caihua Kiln Masonry Installation Co.,Ltd. is professional manufacturer of fire bricks, Mortar, Pre-cast, Pre shape, Insulation products, Castable, Functional Products for Iron & Steel, Cement, Glass, Power & Petrochemical Industries. We have many types of CCM refractories, including subentry nozzle, tundish shroud, ladle shroud, monolithic stopper, well blcok, etc. They play a crucial role in maintaining the quality and efficiency of the steel casting process.

Why Choose Us?

Rich Experience

CH Refractories with 40 years production and 15 years exporting experience to provide customers full supporting.

Professional Team

The company has 120 employees, including 20 professional engineers, who can provide professional product design and technical support.

Advanced Equipment

The company is equipped with two 1000-ton brick machines, ten 630-ton brick machines, two 180-meter high-temperature tunnel kilns, as well as a complete set of equipment for testing physical and chemical properties.

Broad Market

Products are exported to Germany, Korea, Indonesia, Pakistan, Malaysia, Saudi Arabia, Egypt, Russia, Uzbekistan and other countries.

Types of CCM Refractories

Ladle Shroud
The ladle shroud (or protection pipe) is used between the ladle and the tundish to protect the molten steel from secondary oxidation and prevent the steel flow from splashing. There are long spouts that can be used without baking, which are called emergency backup spouts.

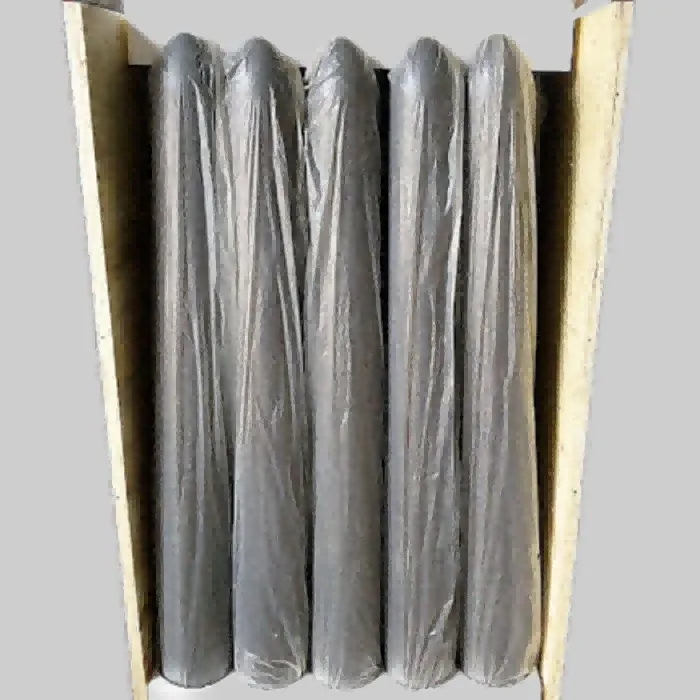

Monolithic Stopper
Monolithic Stopper is installed in the Tundish above the Sub Entry Nozzle and the gap between stopper head and Nozzle decide the throughput requirement of Molten Steel inside the Mould.

Sub Entry Nozzle
The sub entry nozzle is an important passage connecting the tundish and the crystallizer. It is called the choke point of continuous casting. It plays a connecting role and is an important part of the clean steel smelting process.

Specifications of CCM Refractories

Item		CH-JLT-A			CH-JBT
/		Body		Slag line	Body	Slag line
Al2O3≥	40	-----	45	-----
SiO2≤	20	------	15	-----
C+SiC≥	25	13	22	13
ZrO2≥	-----	70	------	75
Compression strength(MPa)≥		20		20	20	14
Cold bending strength(MPa)≥		6		5	8	5
Apparent porosity/%,≤		20		19	18	18
Bulk density(g/cm3)≥		2.2		3.4	2.3	3.55
Thermal shock(times)(1100℃water cooling)≥		5			5

Properties of CCM Refractories

01/

High Thermal Stability
CCM balls exhibit excellent thermal stability, maintaining their integrity and performance even at extreme temperatures. This property makes them suitable for use in high-temperature applications such as steelmaking and glass production.

02/

Chemical Resistance
The high purity of caustic calcined magnesite balls provides superior resistance to corrosive chemicals and slags. This resistance helps to protect equipment and prolong the lifespan of refractory linings.

03/

Low Thermal Expansion
CCM balls have minimal thermal expansion, reducing the risk of cracking or spalling under thermal stress. This characteristic is crucial for maintaining the structural integrity of refractory linings in demanding conditions.

04/

High Purity
The high purity of CCM balls ensures that they contribute minimal impurities to the molten metal or other materials they come into contact with. This purity is essential for maintaining the quality of the final product and avoiding contamination.

CCM Refractories: Surface Treatment Requirements

Surface preparation: Maintain spray gun pressure at 0.5±0.1 MPa

Preheating regime: Follow 25°C/h ramp rate with 6h holding at 800°C

Maintenance cycle: Perform working layer repairs every 10-12 heats

Application Industries of CCM Refractories

Steel Production

CCM plays a critical role in lining BOF converters, ladles, and tundishes, ensuring process efficiency and high-quality steel output.

Cement Manufacturing

Refractory linings containing CCM are essential for cement kilns, withstanding the extreme heat involved in clinker production.

Glass Industry

CCM-based refractories are used in glass furnaces, enabling efficient glass melting and shaping processes.

Certificate

productcate-1-1

Packaging & Shipping

Packaging:	Protective Film, Wooden Box, Pallet Package
Shipping:	By Logistics; by Shipping; by Air.
Payment:	Paypal, Western Union, T/T, L/C.

productcate-600-450

FAQ

Q: How does the purity of CCM affect the quality of refractories?

A: Higher purity CCM generally leads to better - quality refractories. A purer CCM means fewer impurities, which can enhance the refractory's performance in several ways.

Q: What is CCM in refractories and how is it produced?

A: CCM stands for Caustic Calcined Magnesia. It is a highly reactive form of magnesium oxide. CCM is produced by calcining crude magnesite, brucite, or magnesium hydroxide extracted from brine at temperatures between 600 °C - 1000 °C. This process results in a material with unique properties that make it suitable for various applications in refractory products.

Q: Can CCM refractories be customized for specific industrial needs?

A: Yes, CCM refractories can be customized.

Q: What is MOQ of your product?

A: Generally the MOQ is 2 tons. If the fire bricks shape is complicated and needed in small quantity, whose quantity and size can be customized.

Q: How can you guarantee your products quality

A: We can supply products SGS testing report. Welcome third party factory inspection as well.

We're well-known as one of the leading ccm refractories manufacturers in China. Please rest assured to buy customized ccm refractories at competitive price from our factory. Contact us for more cheap products.
