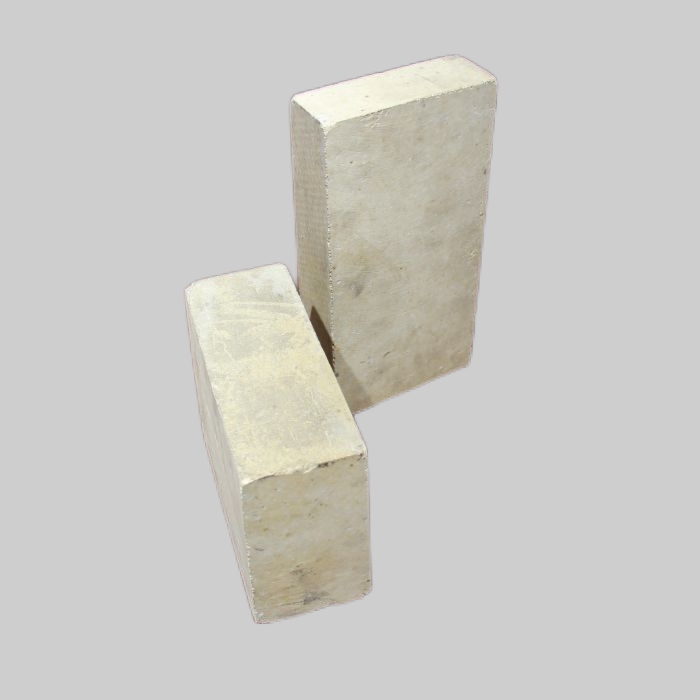

Heavy Duty Fire Brick

Heavy Duty Fire Brick

Heavy duty fire brick alumina bricks manufactured by CH Refractories with high working temperature, high strength, high bulk density. Size is customized and with free mould charges.
Send Inquiry
Description
Technical Parameters
Product description



High aluminum heavy duty fire brick is the product of high temperature forging and burning, this process is divided into several stages, the key is the removal of water and the dissolution of hydrochemical structure water at 500 ° C in the kiln, and the temperature can be accelerated. During the 500-1200℃ period, the fusion effect of the chemical agent has been lost, and the high performance liquid phase has not been converted into, and the crack of the body is low. At 1200-1400℃, solid phase reaction is generated, liquid mutual conversion, and the product is fired and formed, but the crack of the billet is still low, and the temperature increase speed is too fast. When the magnesite is processed and hardened at about 1400℃, it will produce plastic deformation and shape, at this time, the cracking is low, the kiln avoids the unique flame impact, and the temperature kiln is slow. At 1500-1600℃, the product section is calcined..

4



Advantages of superior clay firebrick



From the perspective of Heavy duty fire brick, if the aluminum content exceeds 48%, they can be called high aluminum bricks. There are also high aluminum bricks with different aluminum contents of 55%, 65%, 75%, 80%, and 85%, which can be used in furnace lining at different temperatures.

3



Physical and chemical index of heavy duty fire brick



Items

Index

/

CH-LZ75

CH-LZ65

CH-LZ55

CH-LZ48

Al2O3%≥

75

65

55

48+

CCS/Mpa ≥

54

49

44

40

Apparent porosity/% ≤

23

23

22

22

Refractoriness under load /℃ ≥

1520

1500

1470

1420

Reheating linear change(1500℃,2h)

+0.1 -0.4

+0.1 -0.4

+0.1 -0.4

+0.1 -0.4(1450℃.2h)

Refractoriness/℃≥

1790

1790

1770

1750

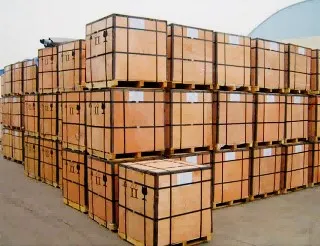

Packages:



5



Physical and chemical index of heavy duty fire brick



Items

Index

/

CH-LZ75

CH-LZ65

CH-LZ55

CH-LZ48

Al2O3%≥

75

65

55

48+

CCS/Mpa ≥

54

49

44

40

Apparent porosity/% ≤

23

23

22

22

Refractoriness under load /℃ ≥

1520

1500

1470

1420

Reheating linear change(1500℃,2h)

+0.1 -0.4

+0.1 -0.4

+0.1 -0.4

+0.1 -0.4(1450℃.2h)

Refractoriness/℃≥

1790

1790

1770

1750
