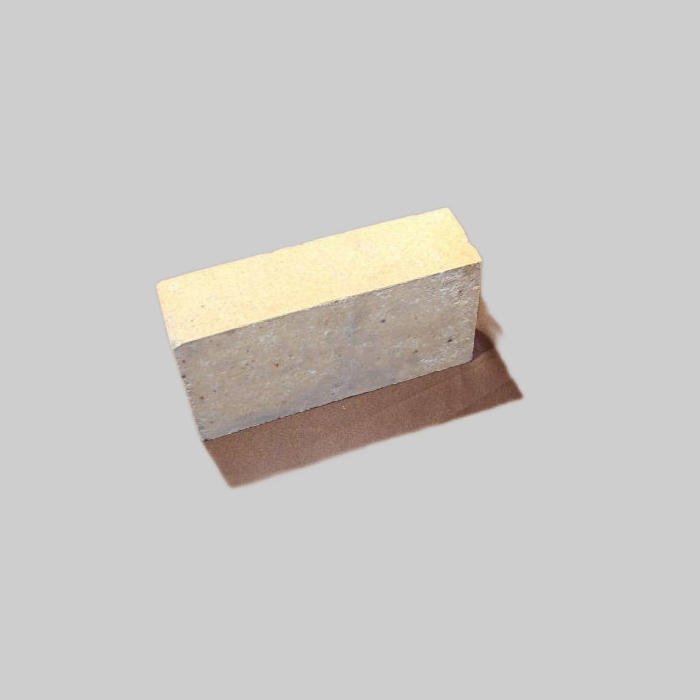

High Alumina Silica Brick

High Alumina Silica Brick

High alumina silica brick manufactured by CH Refractories with high working temperature, high strength, high bulk density. The delivery is very fast.
Send Inquiry
Description
Technical Parameters
Product description



High alumina silica brick have different production process. By adding different raw materials in the high alumina bricks can get different type high duty fire brick, if add a certain proportion of phosphoric acid and sintering at low temperature, phosphate bricks can be produced. By adding a certain proportion of silicon carbide, high-temperature sintering can produce silicon molybdenum bricks or silicon carbide bricks.

4



The use of high aluminum bricks is mainly used for wall ironmaking blast furnace, hot blast furnace, heating furnace top, blast furnace, reverberatory furnace, mechanical lining. In addition, high-aluminum bricks are also commonly used in style furnace heat storage grid bricks, plug heads for pouring management systems.

3



Physical and chemical index of high alumina silica brick



/

CH-LZ75

CH-LZ65

CH-LZ55

CH-LZ48

Al2O3%≥

75

65

55

48+

CCS/Mpa ≥

54

49

44

40

Apparent porosity/% ≤

23

23

22

22

Refractoriness under load /℃ ≥

1520

1500

1470

1420

Reheating linear change(1500℃,2h)

+0.1 -0.4

+0.1 -0.4

+0.1 -0.4

+0.1 -0.4(1450℃.2h)

Refractoriness/℃≥

1790

1790

1770

1750



Packages:



5



Physical and chemical index of high alumina silica brick



/

CH-LZ75

CH-LZ65

CH-LZ55

CH-LZ48

Al2O3%≥

75

65

55

48+

CCS/Mpa ≥

54

49

44

40

Apparent porosity/% ≤

23

23

22

22

Refractoriness under load /℃ ≥

1520

1500

1470

1420

Reheating linear change(1500℃,2h)

+0.1 -0.4

+0.1 -0.4

+0.1 -0.4

+0.1 -0.4(1450℃.2h)

Refractoriness/℃≥

1790

1790

1770

1750
