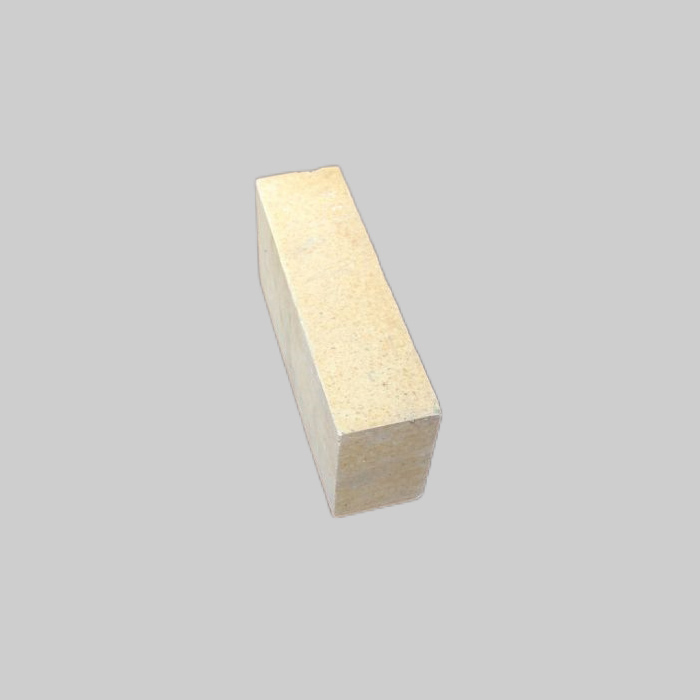

High Duty Firebrick

High Duty Firebrick

High duty firebrick manufactured by CH Refractories with high working temperature, high strength, high bulk density. Size is customized and with free mould charges.
Send Inquiry
Description
Technical Parameters
Product description



High duty firebrick is a kind of middle grade Fire brick among the stereotyped products of refractory materials. It belongs to neutral refractory materials and is used in the lining of industrial kilns.

4



There are more Al2O3 in high duty firebrick aluminum bricks, close to neutral refractory materials, which can resist the erosion of acidic slag and alkaline slag, because it contains SiO2, so the ability of anti-alkaline slag is weaker than the ability of anti-acid slag. In addition, the slag resistance of high aluminum products is also related to the stability of the products in the slag. In general, after high pressure molding and high temperature firing, products with lower porosity have higher slag resistance.

3



Physical and chemical index of high duty firebrick



Items

Index

/

CH-LZ75

CH-LZ65

CH-LZ55

CH-LZ48

Al2O3%≥

75

65

55

48+

CCS/Mpa ≥

54

49

44

40

Apparent porosity/% ≤

23

23

22

22

Refractoriness under load /℃ ≥

1520

1500

1470

1420

Reheating linear change(1500℃,2h)

+0.1 -0.4

+0.1 -0.4

+0.1 -0.4

+0.1 -0.4(1450℃.2h)

Refractoriness/℃≥

1790

1790

1770

1750



Packages:



5



Physical and chemical index of high duty firebrick



Items

Index

/

CH-LZ75

CH-LZ65

CH-LZ55

CH-LZ48

Al2O3%≥

75

65

55

48+

CCS/Mpa ≥

54

49

44

40

Apparent porosity/% ≤

23

23

22

22

Refractoriness under load /℃ ≥

1520

1500

1470

1420

Reheating linear change(1500℃,2h)

+0.1 -0.4

+0.1 -0.4

+0.1 -0.4

+0.1 -0.4(1450℃.2h)

Refractoriness/℃≥

1790

1790

1770

1750
