Product description
Ultrafine powder combined refractory castable is a cement-free refractory castable, which is developed on the basis of ultra-low cement refractory castable. Since the CaO in the castable contains less Dong, it has excellent high temperature performance. Its varieties include aluminum silicate, corundum, mullite, magnesium, aluminum magnesium, aluminum magnesium spinel, etc. Condensation hardening obtains strength through the agglomeration and combination of ultrafine powder.
Applications of lc castable:
◆Cement kiln
◆Heating furnace
◆Recirculating fluidized bed boiler
◆Chemical industry and construction industry
◆Tundish lining
Advantages of lc castable comparing with common castable
The difference between low-cement castables and high-aluminum castables is that in the raw materials of low-cement castables, the matrix is higher than that of high-aluminum castables, and the ultrafine powder used for cohesion and bonding is calcium aluminate white cement. There is also the use of ultra-fine powder technology, low calcium content of low cement castables, and high strength in the later stages of use.
Physical and chemical index of lc castable
|
Items |
High aluminum |
Mullite |
Corundum |
|
|
/ |
CH-LCC65 |
CH-LCC70 |
CH-LCC85 |
|
|
AL2O3 % ≥ |
65 |
70 |
85 |
|
|
Bulk density (110℃×24h) g/cm3 ≥ |
2.5 |
2.6 |
2.8 |
|
|
Flexural strength/ MPa ≥ |
110℃×24h |
10 |
11 |
12 |
|
1400℃×3h |
12 |
13 |
14 |
|
|
Compressive strength/MPa ≥ |
110℃×24h |
80 |
90 |
100 |
|
1400℃×3h |
90 |
90 |
100 |
|
|
PLC(1400℃×3h)/ % ≤ |
±0.5 |
±0.5 |
±0.5 |
|
|
Maximum Service temperature/℃ |
1500 |
1550 |
1600 |
|

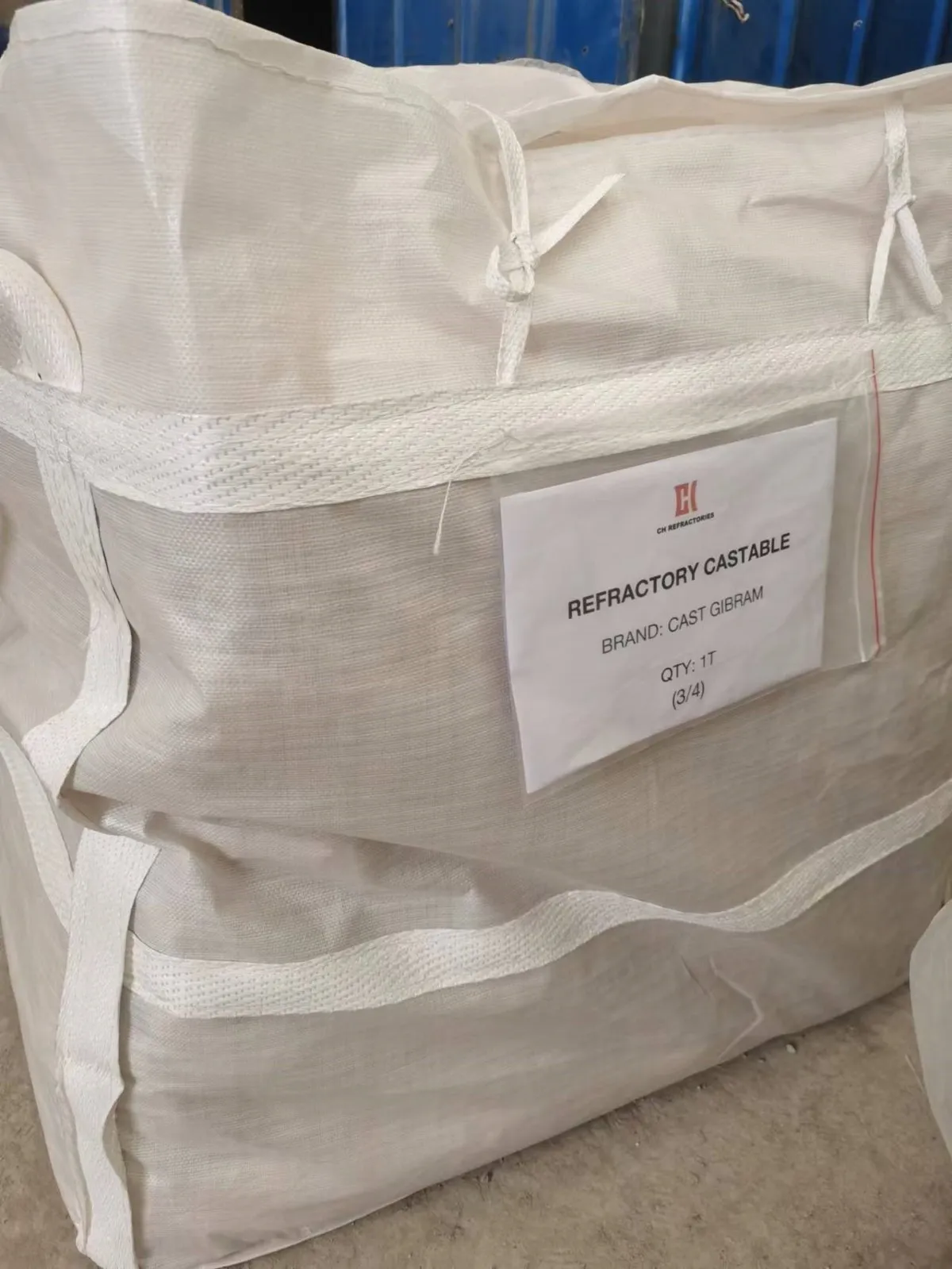

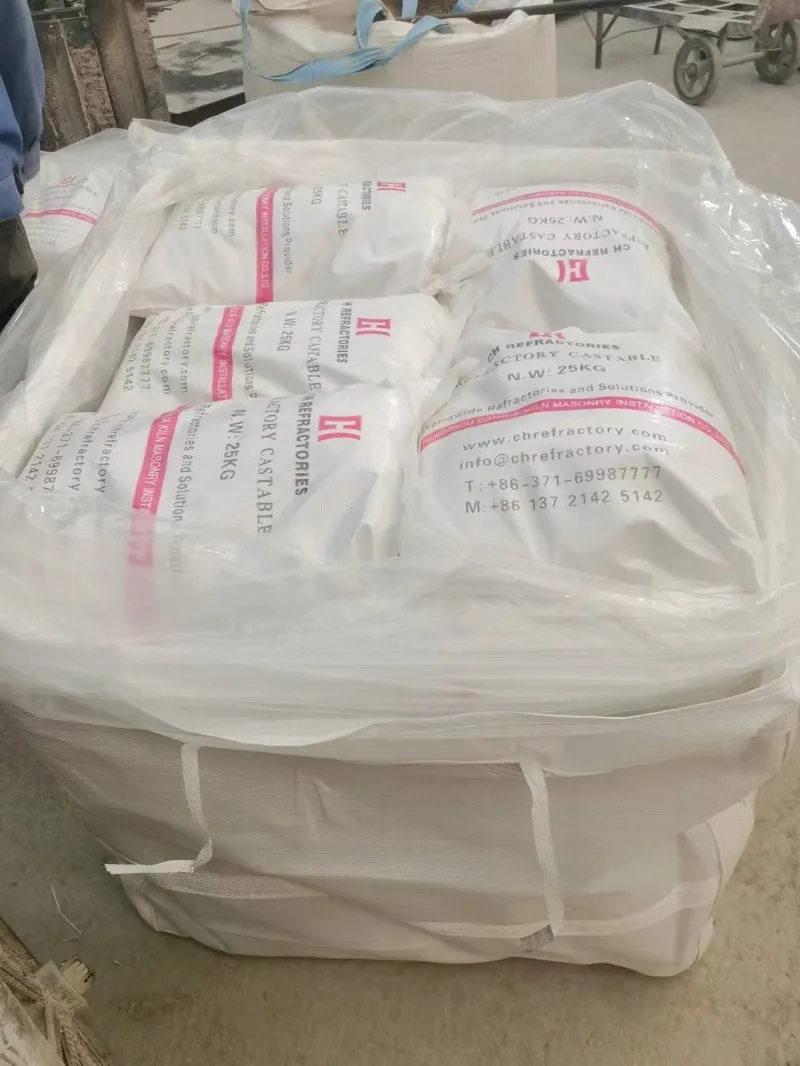

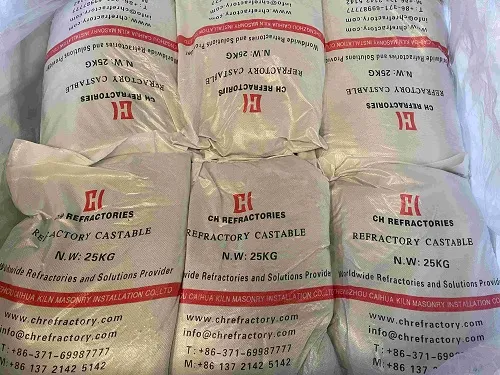

Packages
CH Refractories mainly produce refractory materials for metallurgical, coking, cement industry, electric power industry, chemical and general industrial furnaces. Annual production of a variety of shaped and unshaped refractory materials 120,000 tons. The refractory products exported to Middle east, South America, Middle Asia, Southeast Asia, Africa and other regions.
Proven Experience
CH Refractories was founded in 1984 with decades experience in producing refractory products
Professional Team
30 years manufacturing experience and 10 years exporting experience
qualified staff
ISO 9001/SGS testing report
