Product description
Mgo brick can be generally divided into sintered mgo brick (also known as fired magnesia brick) and chemically combined mgo brick (also known as non-fired magnesia brick) two categories. The magnesia brick with high purity and firing temperature is called directly bonded mgo brick because of the direct contact of the magnesia grain. The brick made of fused magnesia sand is called fused magnesia brick.
Applications of mgo brick:
◆Glass Industry glass furnace regenerator checker
◆Building field
◆lime kiln,cement kiln
◆Refractory field
◆Calcination kiln,shaft kiln and tunnel kiln
◆Non-ferrous metallurgical field
◆Converter furnace and EAF
◆Copper,nickel,lead,zinc,tin smelting furnace lining, refined copper
Physical and chemical index of mgo brick
|
Items |
CH-MZ-91 |
CH-MZ-93 |
CH-MZ-95 |
CH-MZ-97 |
|
Mgo% ≥ |
90 |
93 |
95 |
97 |
|
SiO2%≤ |
-- |
-- |
2.50 |
1.20 |
|
CaO%≤ |
3.0 |
2.50 |
2.0 |
1.50 |
|
Apparent porosity/%≤ |
20 |
18 |
18 |
18 |
|
CCS /MPa ≥ |
40 |
50 |
50 |
50 |
|
0.2 MPaRefractoriness Under Load/℃ |
1500 |
1550 |
1600 |
1650 |

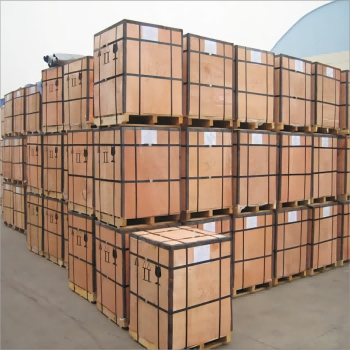

Packages

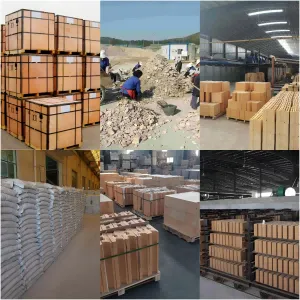

CH Refractories have advanced refractory products manufacturing process equipment and raw material preparation system, batching using electronic batching car, mixing using 750 forced mixer, molding equipment: 2 sets 1000 tons of brick press , 4 sets 630 tons of brick press, 14 sets 400 tons of brick press , 22 sets 315 tons of brick press, 2 sets 160 tons of brick press ,8 sets 60 tons of brick press . Also have a full set of refractories conventional testing equipment, can ensure the quality before sending products to customers.
01
High Quality
CH Refractories is producing products according to ISO 9001 standard and provide SGS testing report for each order
02
Proven Experience
CH Refractories was founded in 1984 with decades experience in producing refractory products
03
Professional Team
More than 30 years manufacturing experience and 10 years exporting experience
04
Custom Service
Integrated factory strength to support all kinds of refractory products customization
FAQ
Q: How can I get price at soonest?
Q: Can I get sample for testing?
Q: What is MOQ of your product?
Q: How can you guarantee your products quality
Q: Which countries you mainly exporting to?
Q: How long is the production time?
Q: What payment term you can accept?
Q: Can you do OEM? Or customized packages?
Q: Can I visit your factory?
