Product description

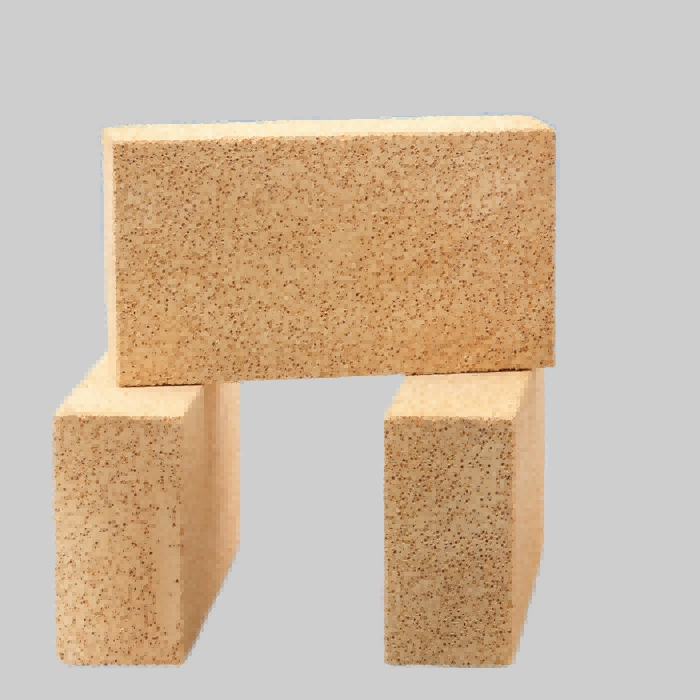

Insulating fire brick for forge is also named high-aluminium heat insulation brick, are used in building heat insulating walls or heat preserving walls, which is basically for preserving or insulation heat. Refractory insulation thermal brick contains more than 48% alumina oxide. This kind of thermal brick for sale does not directly exposed to high temperature inside kilns or furnaces, thermal brick only built closely to the kiln wall as insulations. Refractory insulation thermal brick is a good insulation refractory material, which has a high compressive strength, low thermal conductivity and good insulation quality.
Advantages of insulating fire brick for forge:
High temperature resistance:insulating fire brick for forge use high-purity alumina as the main component and have excellent high-temperature resistance. In high temperature environments, it can maintain stable physical and chemical properties, is not prone to ablation and deformation, and extends its service life.
Excellent thermal insulation properties:insulating fire brick for forge have low thermal conductivity, which can effectively isolate heat transfer inside and outside the furnace and improve energy utilization efficiency. At the same time, it can reduce the temperature rise of the outer wall, protect the furnace structure and reduce heat radiation loss.
Application of insulating fire brick for forge
Used in refractory hot surface linings and backing insulation layers of other refractory materials, Refractory insulation materials for industrial furnaces such as cracking furnace tubular heating furnaces, reforming furnaces, hot blast furnaces, ladle insulation linings, shuttle kilns, tunnel kilns, ceramic track kilns, and push plate kilns in the steel, metallurgical, and chemical industries.
Physical and chemical index of insulating fire brick for forge
|
Brands |
CH-LG-0.6 |
CH-LG-0.8 |
CH-LG-1.0 |
|
BD g/cm3 ≥ |
0.6 |
0.8 |
1 |
|
CCS /Mpa ≥ |
1.96 |
2.94 |
4 |
|
The reheating line changes by no more than 2% of the test temperature /℃≤ |
1350 |
1400 |
1450 |
|
Thermal conductivity average temperature 350±25℃(W/m.k) |
0.25 |
0.32 |
0.45 |
|
0.1MpaRUL/℃ ≥ |
1300 |
1350 |
1380 |
|
Al2O3 /%≥ |
48 |
48 |
48 |
|
Fe2O3 /% |
1.8 |
1.6 |
1.5 |
|
Maximum use temperature /℃ |
1300 |
1350 |
1380 |

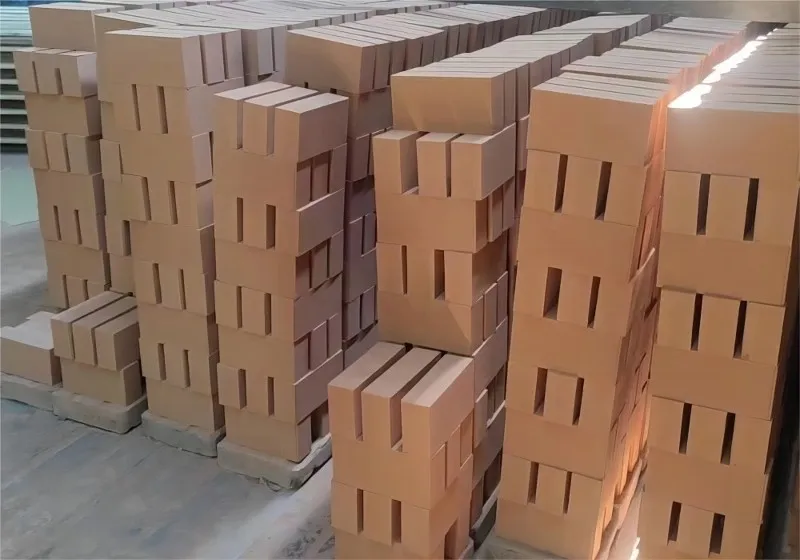

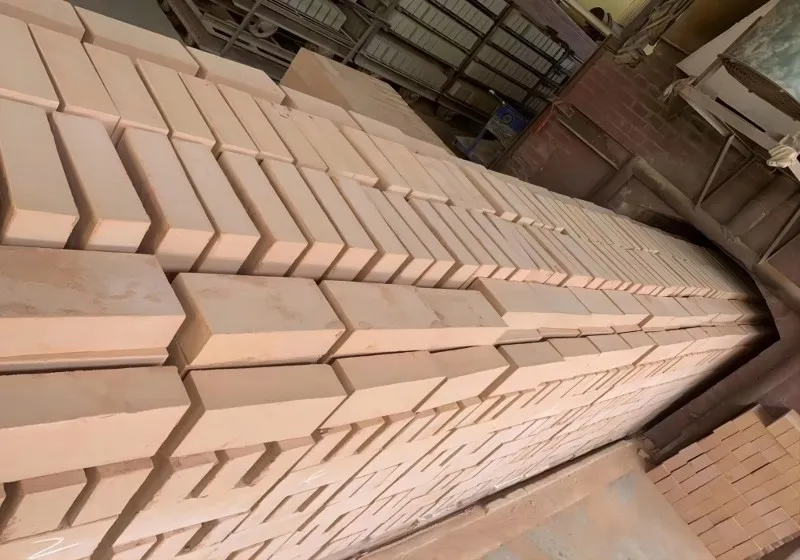

Packages and delivery:
Factory introduction

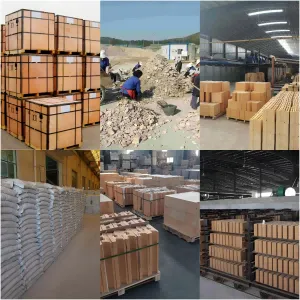

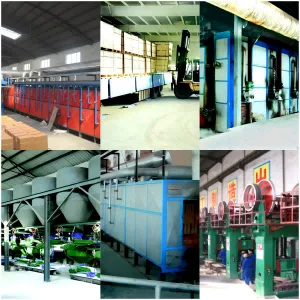

Zhengzhou Caihua Kiln Masonry Installation Co., Ltd, be called for short of CH Refractories was founded in 1984, have advanced process equipment and raw material preparation system.

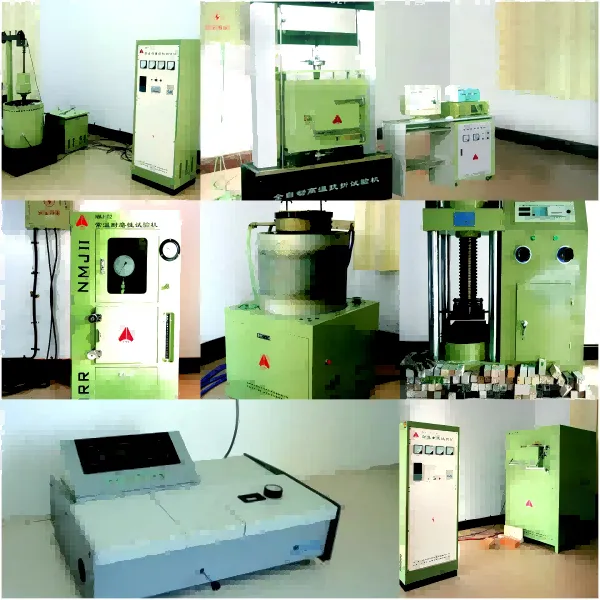

A full set of refractories conventional testing equipment, can ensure the quality before sending to customers.
CH Refractories mainly produce refractory materials for metallurgical, coking, cement industry, electric power industry, chemical and general industrial furnaces. Annual production of a variety of shaped and unshaped refractory materials 120,000 tons. The refractory products exported to Middle east, South America, Middle Asia, Southeast Asia, Africa and other regions.
FAQ
Q: What is Foreign Trade-Express?
Q: How can I get price at soonest?
Q: Can I get sample for testing?
Q: What is MOQ of your product?
Q: How can you guarantee your products quality
Q: Which countries you mainly exporting to?
Q: How long is the production time?
Q: What payment term you can accept?
Q: Can you do OEM? Or customized packages?
Q: Can I visit your factory?
