Product description

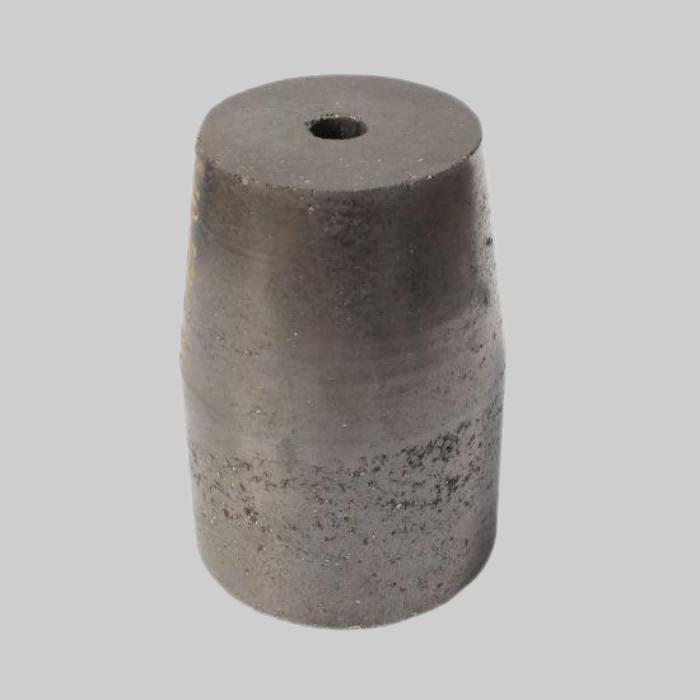

The Refractory Ladle Nozzle is a key equipment designed for high temperature working conditions such as metallurgy and casting. It is mainly used in the steel smelting process as an outlet channel for pouring metal to ensure the stable flow of molten metal.
Features
Excellent high temperature resistance
The Refractory Ladle Nozzle are made of high-quality refractory materials and can work stably in high-temperature environments up to 1700°C. Its special ceramic composite material design effectively avoids cracking or damage caused by high-temperature shock during the flow of molten metal.
Optimized fluid mechanics design
Our products adopt an advanced fluid mechanics design, which can effectively control the flow rate and injection angle of molten steel to ensure a smoother and more precise flow of metal liquid.
High stability
Our products show strong resistance to thermal shock during high-temperature cooling. Through a special heat treatment process, the nozzle can quickly adapt to temperature changes in a short time to avoid cracks or ruptures caused by thermal shock.
Chemical and physical index of Refractory ladle nozzle
|
Item |
Upper and Lower nozzle |
|||
|
Product code |
CH-SK70 |
CH-SK70 |
CH-SK70 |
CH-SK70 |
|
Al2O3/% |
≥70 |
≥75 |
≥80 |
≥85 |
|
C/% |
≥3 |
≥3 |
≥3 |
≥3 |
|
Bulk density/g.cm3 |
≥2.70 |
≥2.85 |
≥2.85 |
≥2.90 |
|
Apparent porosity/% |
≤10 |
≤10 |
≤10 |
≤10 |
Packages:
Chemical and physical index of Refractory ladle nozzle
|
Item |
Upper and Lower nozzle |
|||
|
Product code |
CH-SK70 |
CH-SK70 |
CH-SK70 |
CH-SK70 |
|
Al2O3/% |
≥70 |
≥75 |
≥80 |
≥85 |
|
C/% |
≥3 |
≥3 |
≥3 |
≥3 |
|
Bulk density/g.cm3 |
≥2.70 |
≥2.85 |
≥2.85 |
≥2.90 |
|
Apparent porosity/% |
≤10 |
≤10 |
≤10 |
≤10 |
