Description

Technical Parameters

Product description

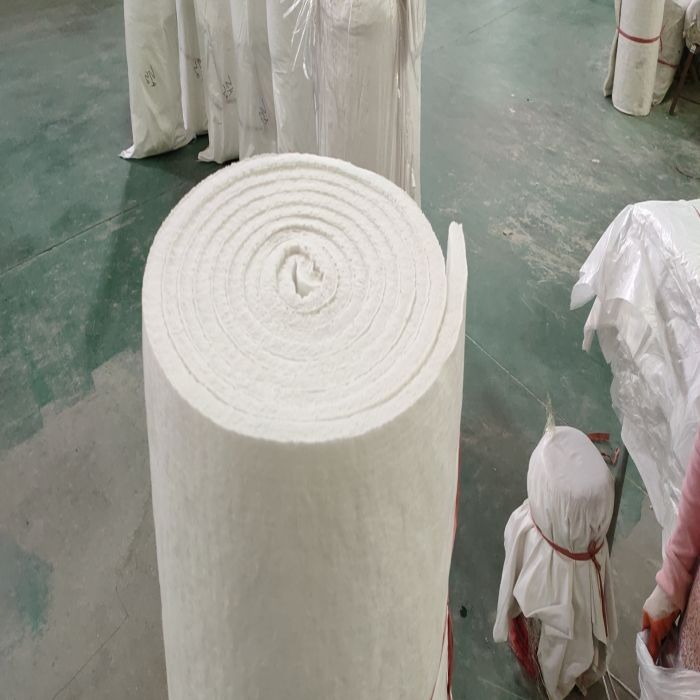

Integrating refractory, heat insulation and heat preservation, high temp ceramic insulation blanket is a refractory and heat insulating material made from aluminum silicate using resistance furnace needle punching process. It has good chemical stability, low heat capacity, good thermal stability and Thermal conductivity is low.

Application of fiber blanket insulation

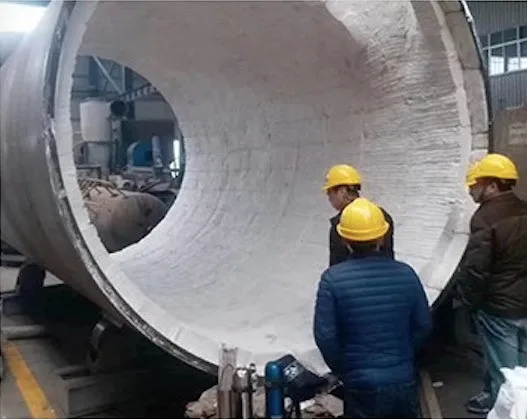

Industrial building materials kilns, heating devices, high-temperature pipe wall linings, electric boilers,
Gas turbine and nuclear power insulation chemical industry high temperature reaction equipment and heating equipment wall lining,
High-rise building fire protection, heat insulation kiln door, roof insulation, high temperature filtration material.

Advantages of high temp ceramic insulation

◆ High temperature resistance, the maximum operating temperature can reach 1300℃.
◆ Low thermal conductivity and good thermal insulation performance. When used under the same conditions, the thermal conductivity of aluminum silicate products is more than 30% lower than other insulation materials.
◆ It is not wetted by molten metal. Has good chemical stability.
◆ It has good sound absorption and sound insulation performance, and has good sound attenuation and sound insulation effect.
◆ It has good electrical insulation and high dielectric constant; it can be used as high-frequency insulating material.

Physical and chemical index of high temp ceramic insulation

Product Brand	XWT40	XWT45	XWT48	XWT50	XWTZ15
Material	Aluminum silicate			High alumina	Zirconia
Al2O3%	40-44	44-46	46-50	50-60	30-35
Al2O3+Si02%	≥94	≥96	≥97	≥97	≥987(+Zr02)
ZrO2%	-	-	-	-	≥15
Fe2O3%	≤1. 2	≤1.0	≤0.8	≤0.5	≤0.5
Na2O+K2O%	≤0.5	≤0.5	≤0.2	≤0.2	≤0.2
Service temperature/℃	≤1000	≤1000	≤1100	≤1200	≤1350
Volume density /kg.m3	95~160	95~160	95~160	95~160	95~160
Thermal conductivity /W(m.k)	≤0.14 (600℃) ≤0.18 (800℃)	≤0.14 (600℃) ≤0.18 (800℃)	≤0.18 (800℃) ≤0.22 (1000℃)	≤0.18 (800℃) ≤0.22 (1000℃)	≤0.22 (1000℃) ≤0.28 (1200℃)
Heating shrinkage ／％	≤3 (800℃,24h)	≤3 (1000℃,24h)	≤3 (1100℃,24h)	≤3 (1200℃,24h)	≤3 (1300℃,24h)
General size	7200mmX600mmX12(20,25,40,50)mm

Packages and delivery:

FAQ

Q: What is Foreign Trade-Express?

A: Foreign Trade Express is a one-stop intelligent foreign trade network marketing SaaS system platform.

Q: How can I get price at soonest?

A: Please send WhatsApp message to +8619903978071 or send email to sales03@chrefractory.com

Q: Can I get sample for testing?

A: Sure, welcome to ask free sample. Kindly please pay freight charges from China to your country only

Q: What is MOQ of your product?

A: Generally the MOQ is 2 tons. If the fire bricks shape is complicated and needed in small quantity, whose quantity and size can be customized.

Q: How can you guarantee your products quality

A: We can supply products SGS testing report. Welcome third party factory inspection as well.

Q: Which countries you mainly exporting to?

A: Our mainly markets including Asia, Middle East, South America and Europe. More than 50 countries.

Q: How long is the production time?

A: For standard fire bricks and unshaped refractory products, the manufacturing capacity is 100 tons one day. Complicated shape bricks need around 20 days manufacturing time.

Q: What payment term you can accept?

A: L/C, T/T, payment against copy of BL

Q: Can you do OEM? Or customized packages?

A: Sure! We can print packages according to your requirements

Q: Can I visit your factory?

A: Welcome at any time!

Hot Tags: 2 inch ceramic fiber blanket, China 2 inch ceramic fiber blanket manufacturers, factory, fire brick with good thermal conductivity, metallurgical dust collectors, metallurgical insulating materials, fire brick for kiln, metallurgical poisons, metallurgical smoke suppressants
