Product description

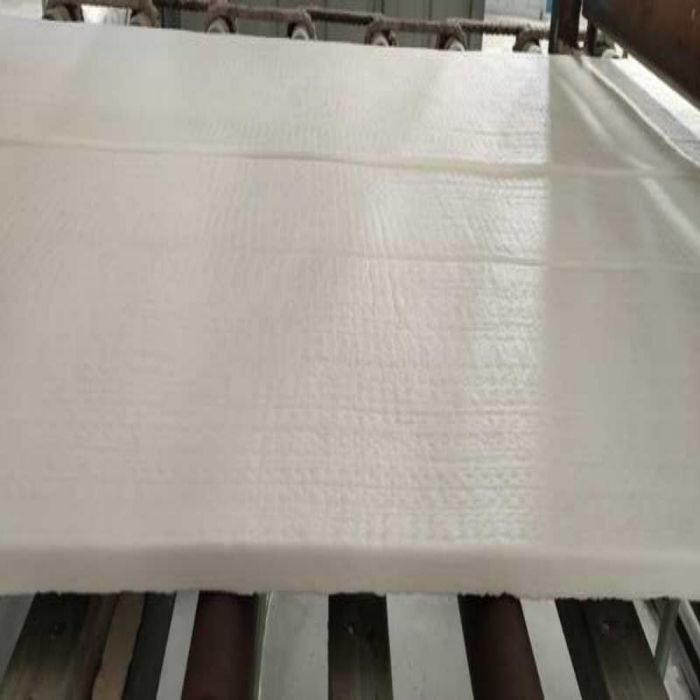

Integrating refractory, heat insulation and heat preservation, fiber blanket for kiln needle punched blanket is a refractory and heat insulating material made from aluminum silicate using resistance furnace needle punching process. It has good chemical stability, low heat capacity, good thermal stability and Thermal conductivity is low.

Application of fiber blanket for kiln

◆Industrial building materials kilns, heating devices, high-temperature pipe wall linings, electric boilers,
◆Gas turbine and nuclear power insulation chemical industry high temperature reaction equipment and heating equipment wall lining,
◆High-rise building fire protection, heat insulation kiln door, roof insulation, high temperature filtration material

Advantages of fiber blanket for kiln

◆ Lightweight material and easy installation
◆ Class A1 fire protection, permanently non-combustible
◆ Low thermal conductivity and strong thermal insulation performance
◆ Low hygroscopicity, stable physical properties
◆ Resistant to extrusion and strong impact resistance
The process is controlled at all levels and the whole process can be traced
Factory supplier, better prices

24-hour non-stop production factory to ensure on-time delivery

Physical and chemical index of fiber blanket for kiln

Product Brand	XWT40	XWT45	XWT48	XWT50	XWTZ15
Material	Aluminum silicate			High alumina	Zirconia
Al2O3%	40-44	44-46	46-50	50-60	30-35
Al2O3+Si02%	≥94	≥96	≥97	≥97	≥987(+Zr02)
ZrO2%	-	-	-	-	≥15
Fe2O3%	≤1. 2	≤1.0	≤0.8	≤0.5	≤0.5
Na2O+K2O%	≤0.5	≤0.5	≤0.2	≤0.2	≤0.2
Service temperature/℃	≤1000	≤1000	≤1100	≤1200	≤1350
Volume density /kg.m3	95~160	95~160	95~160	95~160	95~160
Thermal conductivity /W(m.k)	≤0.14 (600℃) ≤0.18 (800℃)	≤0.14 (600℃) ≤0.18 (800℃)	≤0.18 (800℃) ≤0.22 (1000℃)	≤0.18 (800℃) ≤0.22 (1000℃)	≤0.22 (1000℃) ≤0.28 (1200℃)
Heating shrinkage ／％	≤3 (800℃,24h)	≤3 (1000℃,24h)	≤3 (1100℃,24h)	≤3 (1200℃,24h)	≤3 (1300℃,24h)
General size	7200mmX600mmX12(20,25,40,50)mm
