Description

Technical Parameters

Product description

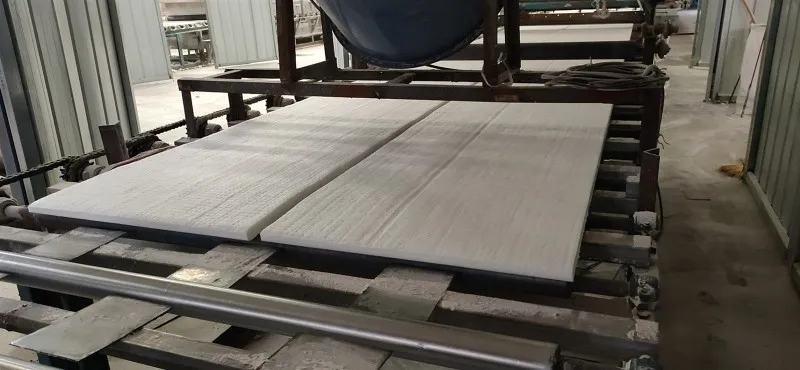

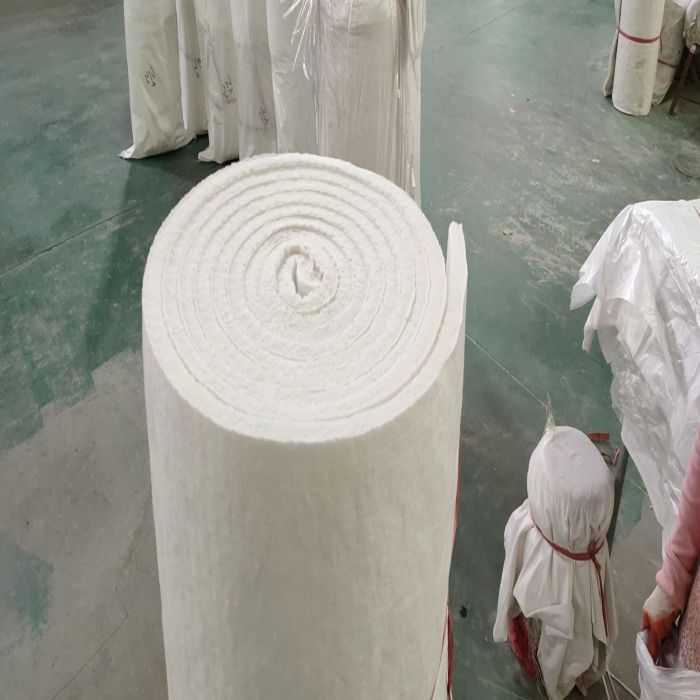

Integrating refractory, heat insulation and heat preservation, high temp ceramic insulation blanket is a refractory and heat insulating material made from aluminum silicate using resistance furnace needle punching process. It has good chemical stability, low heat capacity, good thermal stability and Thermal conductivity is low.
The characteristics of clear needle punching and large pulling force and dense needle punching effectively increase the pulling force and are not easy to break, thus improving the construction efficiency.

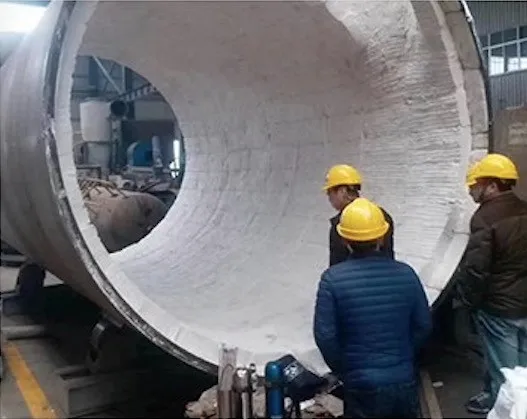

Application of fiber blanket insulation

Products are widely used in annealing furnaces, forging furnaces, bell-type furnaces, aluminum melting furnaces, sintering furnaces, carbonization furnaces, tempering furnaces, heating furnaces, ladle (cover) insulation linings, hot-dip galvanizing annealing furnaces, ring furnaces, many types Heat treatment furnaces; glass annealing furnaces, glass melting furnaces, high temperature test furnaces; roller kilns, shuttle kilns, tunnel kilns, push plate kilns, special ceramic firing kilns; cracking furnaces, reforming furnaces, hydrogen production furnaces, normal and subtractive furnaces Press furnace, coking furnace.

Advantages of high temp ceramic insulation

◆ Lightweight material and easy installation
◆ Class A1 fire protection, permanently non-combustible
◆ Low thermal conductivity and strong thermal insulation performance
◆ Low hygroscopicity, stable physical properties
◆ Resistant to extrusion and strong impact resistance

Physical and chemical index of high temp ceramic insulation

Product Brand	XWT40	XWT45	XWT48	XWT50	XWTZ15
Material	Aluminum silicate			High alumina	Zirconia
Al2O3%	40-44	44-46	46-50	50-60	30-35
Al2O3+Si02%	≥94	≥96	≥97	≥97	≥987(+Zr02)
ZrO2%	-	-	-	-	≥15
Fe2O3%	≤1. 2	≤1.0	≤0.8	≤0.5	≤0.5
Na2O+K2O%	≤0.5	≤0.5	≤0.2	≤0.2	≤0.2
Service temperature/℃	≤1000	≤1000	≤1100	≤1200	≤1350
Volume density /kg.m3	95~160	95~160	95~160	95~160	95~160
Thermal conductivity /W(m.k)	≤0.14 (600℃) ≤0.18 (800℃)	≤0.14 (600℃) ≤0.18 (800℃)	≤0.18 (800℃) ≤0.22 (1000℃)	≤0.18 (800℃) ≤0.22 (1000℃)	≤0.22 (1000℃) ≤0.28 (1200℃)
Heating shrinkage ／％	≤3 (800℃,24h)	≤3 (1000℃,24h)	≤3 (1100℃,24h)	≤3 (1200℃,24h)	≤3 (1300℃,24h)
General size	7200mmX600mmX12(20,25,40,50)mm

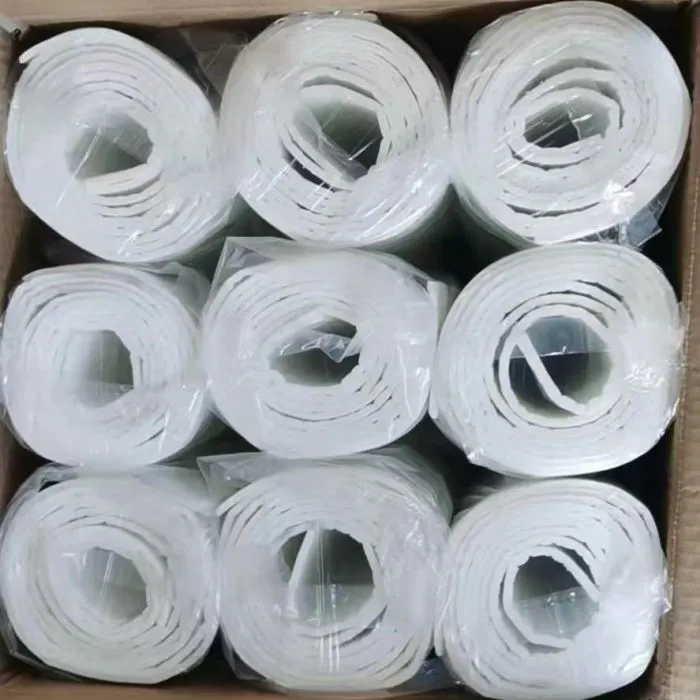

Packages and delivery:

FAQ

Q: How can I get price at soonest?

A: Please send WhatsApp message to +8619903978071 or send email to sales03@chrefractory.com

Q: Can I get sample for testing?

A: Sure, welcome to ask free sample. Kindly please pay freight charges from China to your country only

Q: What is MOQ of your product?

A: 100 pcs

Q: How can you guarantee your products quality

A: We can supply products SGS testing report. Welcome third party factory inspection as well.

Q: Which countries you mainly exporting to?

A: Our mainly markets including Asia, Middle East, South America and Europe. More than 50 countries.

Q: How long is the production time?

A: 14 days

Q: What payment term you can accept?

A: L/C, T/T, payment against copy of BL

Q: Can you do OEM? Or customized packages?

A: Sure! We can print packages according to your requirements

Q: Can I visit your factory?

A: Welcome at any time!
