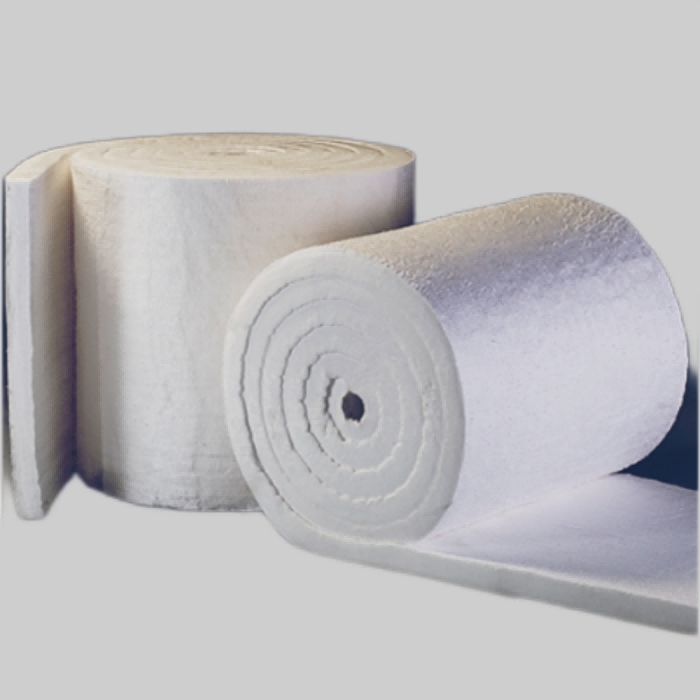

Product description
Fiber insulation blanket is one kind of new refractory fiber products made by needling blanket making process. White color, regular size, low bulk density, low thermal conductivity, easy cutting and installation, and chemical stability are its characteristics.
Application of fiber insulation blanket
Fiber insulation blanket are widely used in annealing furnaces, forging furnaces, bell-type furnaces, aluminum melting furnaces, sintering furnaces, carbonization furnaces, tempering furnaces, heating furnaces, ladle (cover) insulation linings, hot-dip galvanizing annealing furnaces, ring furnaces, many types Heat treatment furnaces; glass annealing furnaces, glass melting furnaces, high temperature test furnaces; roller kilns, shuttle kilns, tunnel kilns, push plate kilns, special ceramic firing kilns; cracking furnaces, reforming furnaces, hydrogen production furnaces, normal and subtractive furnaces Press furnace, coking furnace.
Advantages of fiber insulation blanket
◆ Lightweight material and easy installation
◆ Class A1 fire protection, permanently non-combustible
◆ Low thermal conductivity and strong thermal insulation performance
◆ Low hygroscopicity, stable physical properties
◆ Resistant to extrusion and strong impact resistance
The process is controlled at all levels and the whole process can be traced
Factory supplier, better prices
24-hour non-stop production factory to ensure on-time delivery
Physical and chemical index of fiber insulation blanket
|
Product Brand |
XWT40 |
XWT45 |
XWT48 |
XWT50 |
XWTZ15 |
|
Material |
Aluminum silicate |
High alumina |
Zirconia |
||
|
Al2O3% |
40-44 |
44-46 |
46-50 |
50-60 |
30-35 |
|
Al2O3+Si02% |
≥94 |
≥96 |
≥97 |
≥97 |
≥987(+Zr02) |
|
ZrO2% |
- |
- |
- |
- |
≥15 |
|
Fe2O3% |
≤1. 2 |
≤1.0 |
≤0.8 |
≤0.5 |
≤0.5 |
|
Na2O+K2O% |
≤0.5 |
≤0.5 |
≤0.2 |
≤0.2 |
≤0.2 |
|
Service temperature/℃ |
≤1000 |
≤1000 |
≤1100 |
≤1200 |
≤1350 |
|
Volume density /kg.m3 |
95~160 |
95~160 |
95~160 |
95~160 |
95~160 |
|
Thermal conductivity /W(m.k)
|
≤0.14 (600℃) ≤0.18 (800℃) |
≤0.14 (600℃) ≤0.18 (800℃) |
≤0.18 (800℃) ≤0.22 (1000℃) |
≤0.18 (800℃) ≤0.22 (1000℃) |
≤0.22 (1000℃) ≤0.28 (1200℃) |
|
Heating shrinkage ／％ |
≤3 (800℃,24h) |
≤3 (1000℃,24h) |
≤3 (1100℃,24h) |
≤3 (1200℃,24h) |
≤3 (1300℃,24h) |
|
General size |
7200mmX600mmX12(20,25,40,50)mm |
||||
Packages and delivery:
CH Refractories was founded in 1984, have advanced process equipment and raw material preparation system, and a full set of refractories conventional testing equipment, can ensure the quality before sending to customers.
annual output
120,000 tons.
qualified staff
ISO 9001/SGS testing report
exporting area
Middle east, South America, Asia and Europe
FAQ
Q: How can I get price at soonest?
Q: Can I get sample for testing?
Q: What is MOQ of your product?
Q: How can you guarantee your products quality
Q: Which countries you mainly exporting to?
Q: How long is the production time?
Q: What payment term you can accept?
Q: Can you do OEM? Or customized packages?
Q: Can I visit your factory?
