As a refractory cement supplier, I understand the importance of accurately measuring the hardness of refractory cement. Hardness is a critical property that determines the durability and performance of refractory cement in high - temperature applications. In this blog, I'll share some effective methods to measure the hardness of refractory cement.
Why Measuring the Hardness of Refractory Cement Matters
Refractory cement is used in a wide range of industries, including steel, glass, and ceramics, where it is exposed to extreme temperatures, abrasion, and chemical attacks. The hardness of the refractory cement directly affects its ability to withstand these harsh conditions. A harder refractory cement can resist wear and tear better, maintain its shape under pressure, and provide long - term stability in high - temperature environments. Therefore, accurate hardness measurement is essential for quality control, ensuring that the refractory cement meets the required standards for specific applications.
Common Methods for Measuring Hardness
1. Mohs Scale of Hardness
The Mohs scale is a qualitative scale that ranks minerals from 1 (softest) to 10 (hardest). While it is mainly used for minerals, it can also provide a rough estimate of the hardness of refractory cement. To use the Mohs scale, you can try scratching the surface of the refractory cement sample with minerals of known hardness. For example, if a sample can be scratched by calcite (hardness of 3 on the Mohs scale) but not by gypsum (hardness of 2), its hardness is between 2 and 3.
However, the Mohs scale has limitations when it comes to refractory cement. It only gives a relative measure of hardness and does not provide quantitative data. Also, the scratching process can damage the sample, which may not be desirable in some cases.
2. Rockwell Hardness Test
The Rockwell hardness test is a widely used method for measuring the hardness of metals and some non - metallic materials, including refractory cement. In this test, a diamond or a hardened steel ball indenter is pressed into the surface of the sample under a specific load. The depth of the indentation is then measured, and the hardness value is determined based on a pre - calibrated scale.
The advantage of the Rockwell hardness test is its speed and simplicity. It can provide a quick and accurate measurement of hardness. However, it requires specialized equipment, and the test may not be suitable for all types of refractory cement, especially those with a porous or heterogeneous structure.
3. Vickers Hardness Test
The Vickers hardness test is another popular method for measuring hardness. It uses a square - based pyramid - shaped indenter to make an indentation on the surface of the sample. The diagonal length of the indentation is measured, and the hardness value is calculated using a specific formula.
The Vickers hardness test is more accurate than the Mohs scale and can be used for a wide range of materials, including refractory cement. It is also suitable for measuring the hardness of small or thin samples. However, like the Rockwell test, it requires specialized equipment and a skilled operator to ensure accurate results.
4. Brinell Hardness Test
The Brinell hardness test involves pressing a hardened steel or carbide ball of a specific diameter into the surface of the sample under a known load. The diameter of the indentation left on the sample is measured, and the Brinell hardness number (BHN) is calculated.
The Brinell hardness test is suitable for measuring the hardness of large and thick samples of refractory cement. It can provide a reliable measure of the average hardness of the material. However, the test can be time - consuming, and the indentation may be relatively large, which can affect the integrity of the sample.
Factors Affecting the Hardness of Refractory Cement
Several factors can affect the hardness of refractory cement, and understanding these factors is crucial for accurate hardness measurement and quality control.
1. Composition

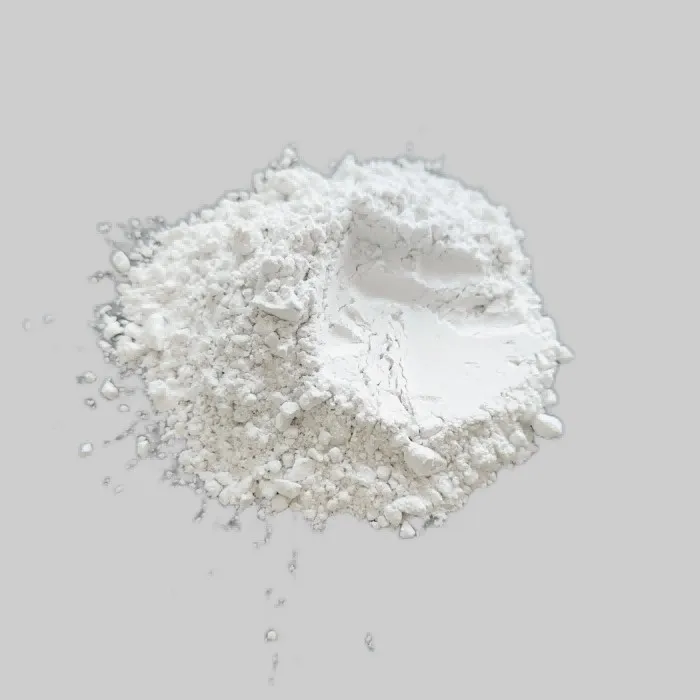

The chemical composition of refractory cement plays a significant role in determining its hardness. Different types of raw materials, such as alumina, silica, and magnesia, have different hardness properties. For example, refractory cement with a high alumina content generally has higher hardness and better wear resistance. As a supplier, we offer a variety of refractory cement products with different compositions to meet the specific needs of our customers. You can check out our Castable Refractory Cement 50 Lbs and 3000f Refractory Cement, which are formulated with carefully selected raw materials to ensure optimal hardness and performance.
2. Curing Conditions
The curing process is essential for the development of hardness in refractory cement. Proper curing allows the cement to hydrate and form a strong and dense structure. Factors such as temperature, humidity, and curing time can affect the degree of hydration and, consequently, the hardness of the cement. For example, curing at a higher temperature can accelerate the hydration process and result in a harder cement. However, if the temperature is too high, it can also cause cracking and reduce the overall quality of the cement.
3. Compaction
The degree of compaction during the installation of refractory cement can also affect its hardness. A well - compacted cement has fewer voids and a more uniform structure, which can lead to higher hardness. Insufficient compaction can result in a porous and weak cement, which is more prone to wear and damage.
Best Practices for Measuring Hardness
To obtain accurate and reliable hardness measurements of refractory cement, it is important to follow some best practices.
1. Sample Preparation
Proper sample preparation is crucial for accurate hardness testing. The sample should be representative of the actual refractory cement product. It should be cut or ground to a smooth and flat surface to ensure that the indenter makes a proper contact with the sample during the test.
2. Testing Environment
The testing environment can also affect the hardness measurement. The temperature and humidity should be controlled within a reasonable range to minimize the influence of environmental factors on the test results. For example, a high - humidity environment can cause the sample to absorb moisture, which can affect its hardness.
3. Multiple Measurements
Taking multiple measurements at different locations on the sample can help to obtain a more accurate representation of the hardness of the refractory cement. This is especially important for materials with a heterogeneous structure, where the hardness may vary from one location to another.
Conclusion

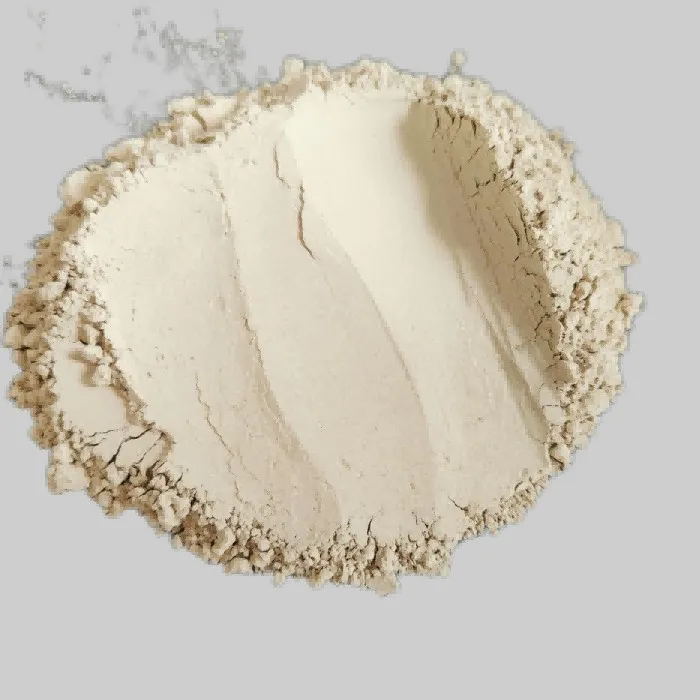

Measuring the hardness of refractory cement is an important part of quality control and ensuring the performance of the product in high - temperature applications. There are several methods available for measuring hardness, each with its own advantages and limitations. As a refractory cement supplier, we are committed to providing high - quality products with consistent hardness. We offer a range of refractory cement products, such as Refractory Cement 25kg, that are carefully tested to meet the required hardness standards.
If you are interested in our refractory cement products or have any questions about hardness measurement and product selection, we encourage you to contact us for procurement and further discussions. Our team of experts is ready to assist you in finding the best solution for your specific needs.
References
- ASTM International. (Year). Standard test methods for hardness of materials. ASTM Publication.
- Callister, W. D., & Rethwisch, D. G. (Year). Materials science and engineering: An introduction. Wiley.
- Schneider, H., & Schwetz, K. A. (Year). Refractories handbook. Wiley - VCH.
