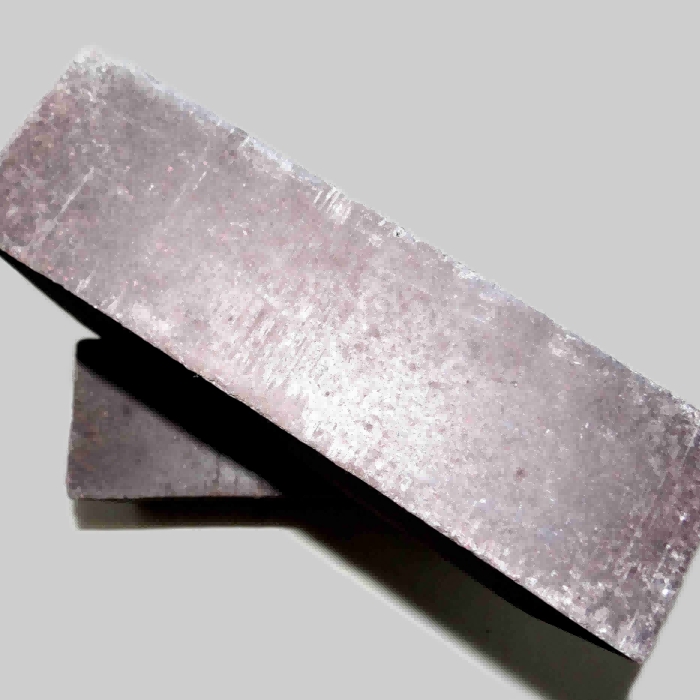

Product description
The refractory mag chrome brick is a product made of high-purity magnesia and imported chrome concentrate, which is made by adding a small amount of additives and high pressure and high temperature. Generally there are three different mag chrome brick according to manufacturing method, which are:
1.Common mag chrome brick is made by sintered magnesia and refractory level chrome ore as raw materials. The space between refractory grains is bonded with silicate.
2.Direct-bonded mag chrome brick is made by chrome ore with low content of impurities and pure magnesite,firing at the temperature above 1700°C.
3.Semi-rebonded and fuse-rebonded mag chrome brick are made by fused magnesite chrome sinter.
Application of mag chrome brick:
Mag chrome brick mainly used in cement rotary kiln, glass kiln regenerator chamber, steelmaking furnace lining, refining ladle permanent layer, non-ferrous metallurgy furnace, lime kiln, mixing furnace and refractory high temperature kiln lining.
Advantages of CH Refractories manufactured mag chrome brick:
Selected raw materials: Sufficient raw materials and selected quality ensure product quality.
Standardized production workshop:We have sufficient production capacity for large-volume orders and can customize various refractory products.
Fully automated production:Strict control on product quality and standardized production workshops.
Sufficient stock:The large warehouse has sufficient supply to meet your various requirments and save your time
Physical and chemical index of mag chrome brick
|
Items |
ZMGe |
ZMGe |
ZMGe |
ZMGe |
ZMGe |
ZMGe |
||||||
|
/ |
20A |
20B |
18A |
18B |
16A |
16B |
14A |
14B |
12A |
12B |
8A |
8B |
|
Mgo% ≥ |
45 |
40 |
50 |
45 |
52 |
47 |
60 |
55 |
65 |
60 |
65 |
60 |
|
Cr2O3% ≥ |
30 |
30 |
26 |
26 |
24 |
24 |
20 |
20 |
16 |
16 |
16 |
16 |
|
Fe2O3% |
8-15 |
8-15 |
7-15 |
7-13 |
6-13 |
6-13 |
5-13 |
5-13 |
5-12 |
5-12 |
5-12 |
5-12 |
|
SiO2% ≤ |
1.5 |
2.5 |
1.5 |
2.5 |
1.5 |
2.5 |
1.5 |
2.5 |
1.5 |
2.5 |
1.5 |
2.5 |
|
Apparent porosity/% ≤ |
15 |
16 |
15 |
16 |
15 |
16 |
15 |
16 |
15 |
16 |
15 |
16 |
|
Bulk density g/cm3 ≥ |
3.38 |
3.38 |
3.33 |
3.33 |
3.30 |
3.30 |
3.25 |
3.25 |
3.20 |
3.20 |
3.20 |
3.20 |
|
CCS /MPa ≥ |
50 |
50 |
50 |
50 |
50 |
50 |
50 |
50 |
50 |
50 |
50 |
50 |
|
0.2MPa refractoriness under load ≥ |
1700 |
1700 |
1700 |
1700 |
1700 |
1700 |
1700 |
1700 |
1700 |
1700 |
1700 |
1700 |

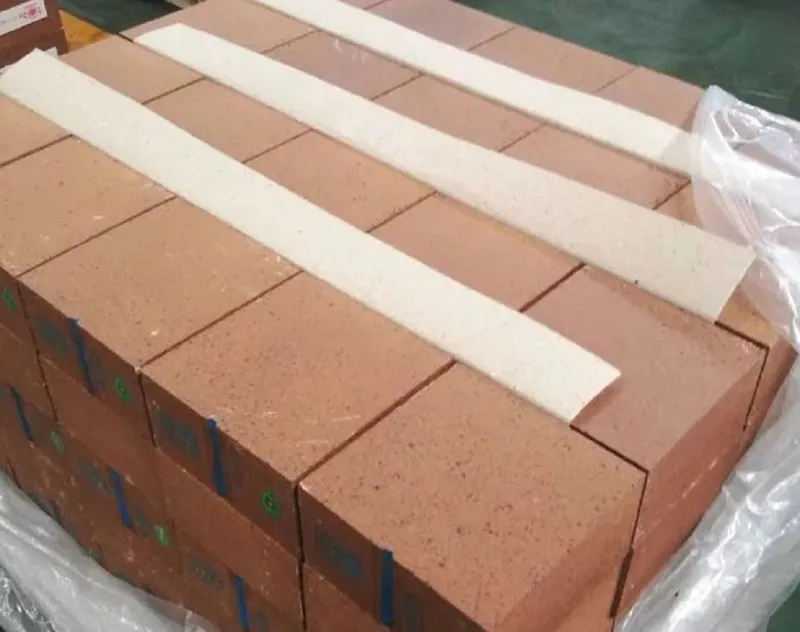

Packages:
Physical and chemical index of mag chrome brick
|
Items |
ZMGe |
ZMGe |
ZMGe |
ZMGe |
ZMGe |
ZMGe |
||||||
|
/ |
20A |
20B |
18A |
18B |
16A |
16B |
14A |
14B |
12A |
12B |
8A |
8B |
|
Mgo% ≥ |
45 |
40 |
50 |
45 |
52 |
47 |
60 |
55 |
65 |
60 |
65 |
60 |
|
Cr2O3% ≥ |
30 |
30 |
26 |
26 |
24 |
24 |
20 |
20 |
16 |
16 |
16 |
16 |
|
Fe2O3% |
8-15 |
8-15 |
7-15 |
7-13 |
6-13 |
6-13 |
5-13 |
5-13 |
5-12 |
5-12 |
5-12 |
5-12 |
|
SiO2% ≤ |
1.5 |
2.5 |
1.5 |
2.5 |
1.5 |
2.5 |
1.5 |
2.5 |
1.5 |
2.5 |
1.5 |
2.5 |
|
Apparent porosity/% ≤ |
15 |
16 |
15 |
16 |
15 |
16 |
15 |
16 |
15 |
16 |
15 |
16 |
|
Bulk density g/cm3 ≥ |
3.38 |
3.38 |
3.33 |
3.33 |
3.30 |
3.30 |
3.25 |
3.25 |
3.20 |
3.20 |
3.20 |
3.20 |
|
CCS /MPa ≥ |
50 |
50 |
50 |
50 |
50 |
50 |
50 |
50 |
50 |
50 |
50 |
50 |
|
0.2MPa refractoriness under load ≥ |
1700 |
1700 |
1700 |
1700 |
1700 |
1700 |
1700 |
1700 |
1700 |
1700 |
1700 |
1700 |
