Description

Technical Parameters

Product description

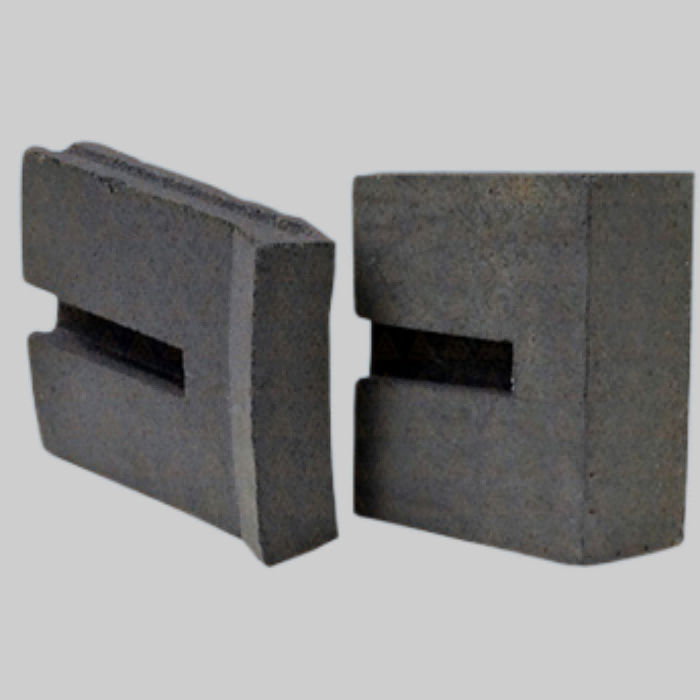

Silicon carbide refractory bricks manufactured by CH Refractories has high thermal conductivity, good wear resistance, thermal shock resistance and corrosion resistance. Can be used for aluminum electrolytic cell lining, molten aluminum conduit and ceramic kiln kiln utensils, large and medium-sized blast furnace body, furnace waist and furnace belly, aluminum refining furnace lining, zinc distillation tank lining, etc. Silicon carbide brick is silicon carbide (sic) as the main raw material, according to the requirements with a variety of bonding agents, by high pressure molding, corundum silicon carbide brick products have good thermal stability and high thermal conductivity, and good corrosion resistance, is an ideal energy-saving material for industrial kilns.

Application:

The application of silicon carbide refractory bricks are distinguished according to different binder: Clay bonded silicon carbide bricks are refractory products fired with silicon carbide as the main raw material and clay as the binding agent. This kind of silicon carbide bricks are used as ceramic kiln furniture (shed boards, brackets, saggers, etc.), muffle covers for muffle furnaces, furnace lining bricks for aluminum refining furnaces, distillation pots for zinc distillation furnaces, cement rotary kiln coolers, etc.

Physical and chemical index of silicon carbide refractory bricks

Items	Oxide-bonded silicon carbide brick	Corundum silicon carbide brick	Mullite carbide brick	High alumina silicon carbide brick
SiC%	≥90	≥70	≥65	≥20
AL2O3%			≥20	≥55
Apparent porosity%	≤17	≤22	≤20	≤20
Bulk density g/cm3	≥2.5	≥2.6	≥2.3	≥2.5
Crushing strength Mpa	≥100	≥100	≥80	≥80
Refractoriness under load ℃(0.2Mpa,0.6%)	≥1650	≥1700	≥1600	≥1600
Application	Mainly used for non-ferrous metal smelting: industrial ceramic bearing plate, push plate, saggar; Muffle plate for annealing furnace; The inner lining and igniter of the circulating vulcanized bed boiler; Waste incinerator lining, etc.

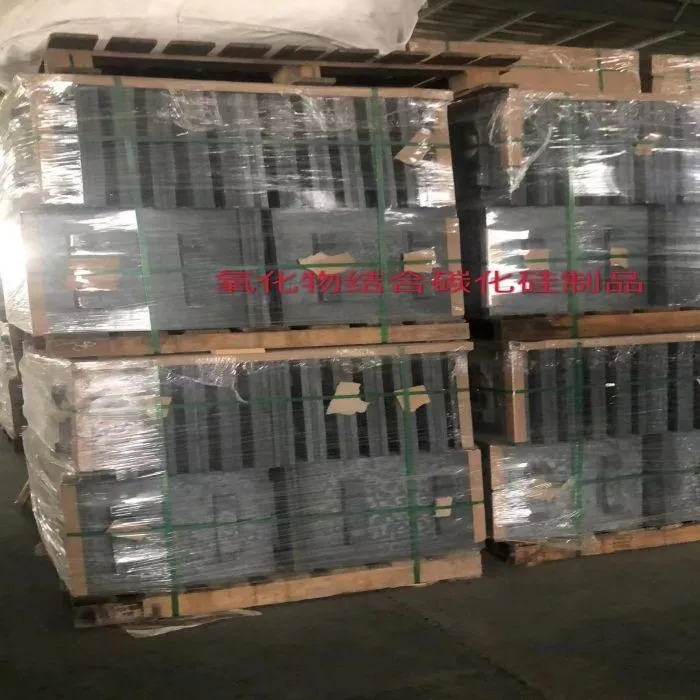

Packages:

Company introduction

We are experts at this industry

CH Refractories have strong technical force, established stable technical cooperation relations with Luoyang Refractory Research Institute, Zhengzhou University High Temperature Research Institute, University of Science and Technology Beijing, Northeastern University, Anshan Iron and Steel Institute and other scientific research units and colleges and universities, it's also the production, teaching and research base of the University of Science and Technology Beijing.

Workshop equipment

1000 tons of brick press 2 sets, 630 tons of brick press 4 sets, 400 tons of brick press 14 sets, 315 tons of brick press 22 sets, 160 tons of brick press 2 sets, 60 tons of brick press 8 sets

How to control quality

CH Refractories is in strict accordance with ISO9001 international quality system standards. In order to ensure the high purity of raw materials, the inspection and selection of the main raw materials are all manually completed

Products application

metallurgical, coking, cement industry, electric power industry, chemical and general industrial furnaces. The annual production of a variety of shaped and unshaped refractory materials 120,000 tons

FAQ

Q: How can I get price at soonest?

A: Please send WhatsApp message to +8619903978071 or send email to sales03@chrefractory.com

Q: Can I get sample for testing?

A: Sure, welcome to ask free sample. Kindly please pay freight charges from China to your country only

Q: What is MOQ of your product?

A: Generally the MOQ is 2 tons. If the fire bricks shape is complicated and needed in small quantity, whose quantity and size can be customized.

Q: How can you guarantee your products quality

A: We can supply products SGS testing report. Welcome third party factory inspection as well.

Q: Which countries you mainly exporting to?

A: Our mainly markets including Asia, Middle East, South America and Europe. More than 50 countries.

Q: How long is the production time?

A: For standard fire bricks and unshaped refractory products, the manufacturing capacity is 100 tons one day. Complicated shape bricks need around 20 days manufacturing time.

Q: What payment term you can accept?

A: L/C, T/T, payment against copy of BL

Q: Can you do OEM? Or customized packages?

A: Sure! We can print packages according to your requirements

Q: Can I visit your factory?

A: Welcome at any time!
