Product description

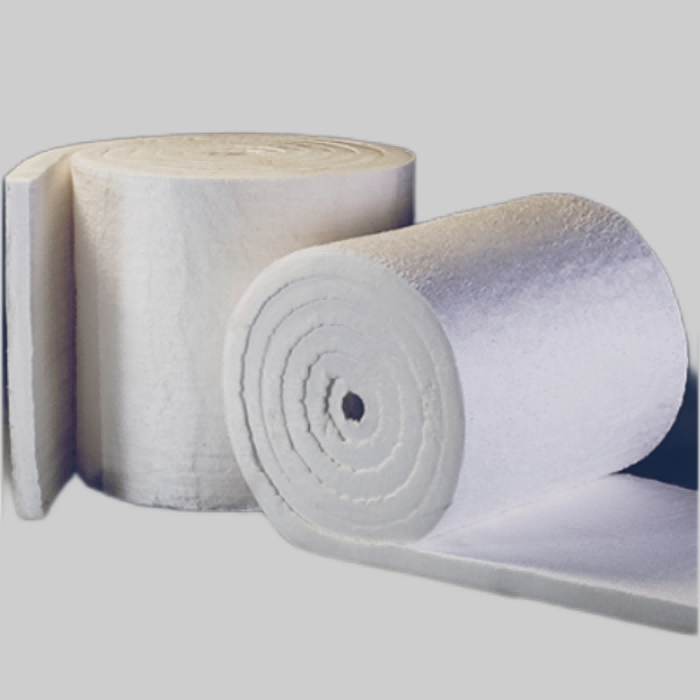

The main component of high-alumina ceramic fiber blankets is alumina (Al2O3), with a content of more than 90%, so it has extremely high fire resistance and corrosion resistance. The material can maintain stable chemical properties at high temperatures and even in a molten state, and will not fail due to oxidation, reduction and other reactions. In addition, the high-alumina ceramic fiber blanket also has excellent thermal insulation properties. Its thermal conductivity is extremely low, which can effectively prevent heat transfer and thus play the role of thermal insulation.
Application of aluminum silicate fiber blanket

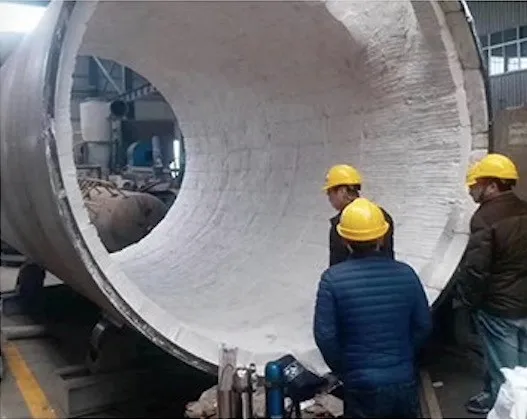

It can widely be used as lining for kiln and furnace, and insulation layer for high temperature pipe.
The ceramic fiber blanket manufactured by CH Refractories is characterized by superior chemical stability, low heat loss, superior resistance to thermal shock, good acoustic and thermal insulation. Multiple choices on density and dimension prop up the fine insulating performance in various industrial applications.
Advantages of aluminum silicate fiber blanket
◆High temperature resistance, can withstand 1000-1430 degrees.
◆ Good thermal stability, can maintain good stability under high temperature environment
◆ It is light in weight and absorbs less heat when used as a thermal insulation material.
Physical and chemical index of aluminum silicate fiber blanket
|
Product Brand |
XWT40 |
XWT45 |
XWT48 |
XWT50 |
XWTZ15 |
|
Material |
Aluminum silicate |
High alumina |
Zirconia |
||
|
Al2O3% |
40-44 |
44-46 |
46-50 |
50-60 |
30-35 |
|
Al2O3+Si02% |
≥94 |
≥96 |
≥97 |
≥97 |
≥987(+Zr02) |
|
ZrO2% |
- |
- |
- |
- |
≥15 |
|
Fe2O3% |
≤1. 2 |
≤1.0 |
≤0.8 |
≤0.5 |
≤0.5 |
|
Na2O+K2O% |
≤0.5 |
≤0.5 |
≤0.2 |
≤0.2 |
≤0.2 |
|
Service temperature/℃ |
≤1000 |
≤1000 |
≤1100 |
≤1200 |
≤1350 |
|
Volume density /kg.m3 |
95~160 |
95~160 |
95~160 |
95~160 |
95~160 |
|
Thermal conductivity /W(m.k)
|
≤0.14 (600℃) ≤0.18 (800℃) |
≤0.14 (600℃) ≤0.18 (800℃) |
≤0.18 (800℃) ≤0.22 (1000℃) |
≤0.18 (800℃) ≤0.22 (1000℃) |
≤0.22 (1000℃) ≤0.28 (1200℃) |
|
Heating shrinkage ／％ |
≤3 (800℃,24h) |
≤3 (1000℃,24h) |
≤3 (1100℃,24h) |
≤3 (1200℃,24h) |
≤3 (1300℃,24h) |
|
General size |
7200mmX600mmX12(20,25,40,50)mm |
||||
