Product description
According to the type of cementing agent, furnace castable refractory can be divided into alumina cement refractory castables, aluminum-60 cement refractory castables, low calcium aluminate cement castables and pure calcium aluminate cement refractory castables. Aluminum salt cement refractory castables have the characteristics of rapid hardening, high strength, good thermal shock stability, and high refractoriness. Therefore, they are widely used in general industrial kilns and thermal equipment in metallurgy, petrochemicals, hydropower, building materials, machinery and other industrial sectors. On the market, its maximum operating temperature is 1400-100℃, and some can reach around 1800℃.
Advantages of furnace castable refractory
The type and dosage of clay binder have an important impact on its performance. The choice of soft clay binder requires good plasticity, strong dispersion, good adhesion, wide sintering temperature range, and high refractoriness.
Physical and chemical index of furnace castable refractory
|
Items |
High aluminum |
Mullite |
Corundum |
|
|
/ |
CH-LCC65 |
CH-LCC70 |
CH-LCC85 |
|
|
AL2O3 % ≥ |
65 |
70 |
85 |
|
|
Bulk density (110℃×24h) g/cm3 ≥ |
2.5 |
2.6 |
2.8 |
|
|
Flexural strength/ MPa ≥ |
110℃×24h |
10 |
11 |
12 |
|
1400℃×3h |
12 |
13 |
14 |
|
|
Compressive strength/MPa ≥ |
110℃×24h |
80 |
90 |
100 |
|
1400℃×3h |
90 |
90 |
100 |
|
|
PLC(1400℃×3h)/ % ≤ |
±0.5 |
±0.5 |
±0.5 |
|
|
Maximum Service temperature/℃ |
1500 |
1550 |
1600 |
|

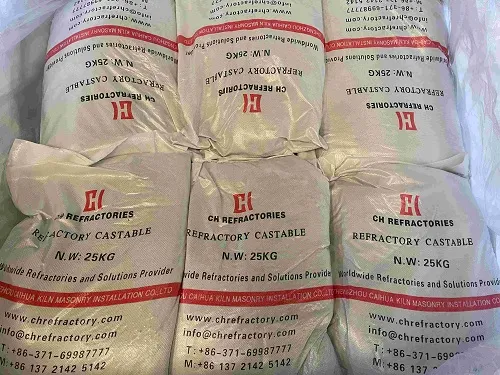

Packages
CH Refractories was founded in 1984, have advanced process equipment and raw material preparation system, and a full set of refractories conventional testing equipment, can ensure the quality before sending to customers.
CH Refractories mainly produce refractory materials for metallurgical, coking, cement industry, electric power industry, chemical and general industrial furnaces. Annual production of a variety of shaped and unshaped refractory materials 120,000 tons.
Proven Experience
CH Refractories was founded in 1984 with decades experience in producing refractory products
Professional Team
More than 30 years manufacturing experience and 10 years exporting experience
exporting area
The refractory products exported to Middle east, South America, Middle Asia, Southeast Asia, Africa and other regions.
FAQ
Q: How can I get price at soonest?
Q: Can I get sample for testing?
Q: What is MOQ of your product?
Q: How can you guarantee your products quality
Q: Which countries you mainly exporting to?
Q: How long is the production time?
Q: What payment term you can accept?
Q: Can you do OEM? Or customized packages?
Q: Can I visit your factory?
