Product description

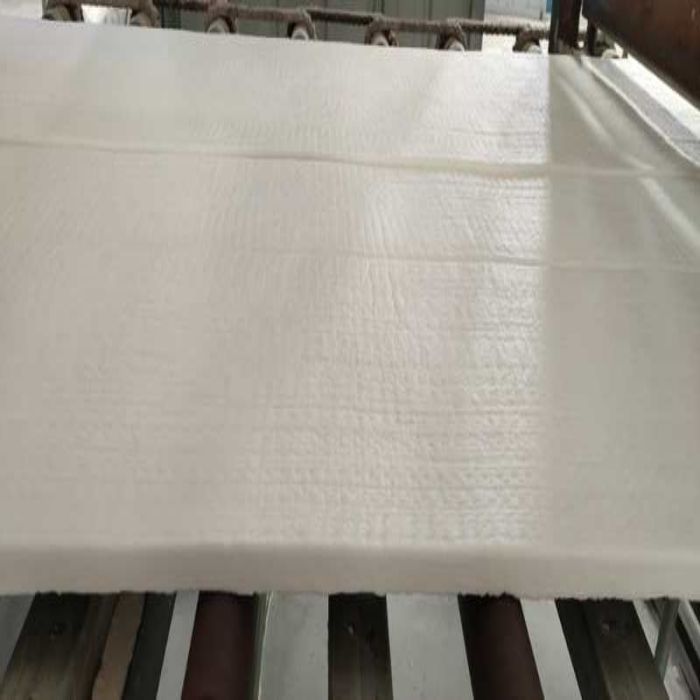

The high temperature ceramic fiber blanket has excellent thermal insulation properties. Its thermal conductivity is extremely low, which can effectively prevent heat transfer and thus play the role of thermal insulation.

Application of high temperature ceramic fiber blanket

◆ Industrial furnace insulation: High-aluminum ceramic fiber blankets can be used as lining materials for furnaces, which can effectively reduce heat loss, improve the thermal efficiency of furnaces, and reduce energy consumption.
◆ High-temperature pipeline insulation: In petrochemical, metallurgical and other industries, high-temperature pipelines are one of the common equipment. High-aluminum ceramic fiber blankets can be used as insulation materials for the outer layer of pipes to reduce heat loss and protect pipes from high temperatures.

Advantages of CH Refractories manufactured high temperature ceramic fiber blanket

◆ High temperature resistance, the maximum operating temperature can reach 1300℃.

◆ Low thermal conductivity and good thermal insulation performance. When used under the same conditions, the thermal conductivity of aluminum silicate products is more than 30% lower than other insulation materials.

◆ Customized size

Physical and chemical index of high temperature ceramic fiber blanket

Product Brand	XWT40	XWT45	XWT48	XWT50	XWTZ15
Material	Aluminum silicate			High alumina	Zirconia
Al2O3%	40-44	44-46	46-50	50-60	30-35
Al2O3+Si02%	≥94	≥96	≥97	≥97	≥987(+Zr02)
ZrO2%	-	-	-	-	≥15
Fe2O3%	≤1. 2	≤1.0	≤0.8	≤0.5	≤0.5
Na2O+K2O%	≤0.5	≤0.5	≤0.2	≤0.2	≤0.2
Service temperature/℃	≤1000	≤1000	≤1100	≤1200	≤1350
Volume density /kg.m3	95~160	95~160	95~160	95~160	95~160
Thermal conductivity /W(m.k)	≤0.14 (600℃) ≤0.18 (800℃)	≤0.14 (600℃) ≤0.18 (800℃)	≤0.18 (800℃) ≤0.22 (1000℃)	≤0.18 (800℃) ≤0.22 (1000℃)	≤0.22 (1000℃) ≤0.28 (1200℃)
Heating shrinkage ／％	≤3 (800℃,24h)	≤3 (1000℃,24h)	≤3 (1100℃,24h)	≤3 (1200℃,24h)	≤3 (1300℃,24h)
General size	7200mmX600mmX12(20,25,40,50)mm

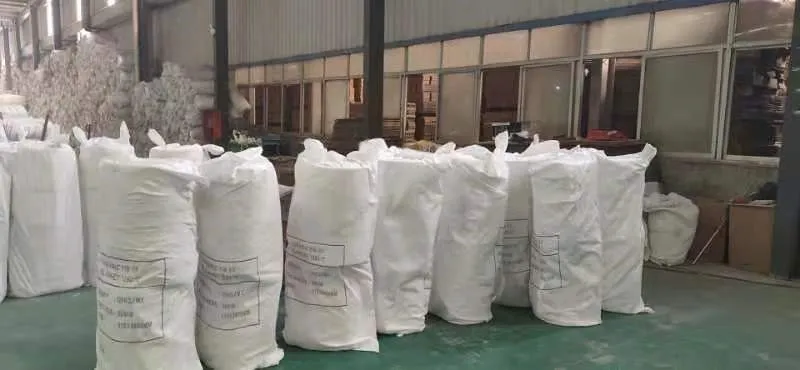

Packages and delivery:
