Product description

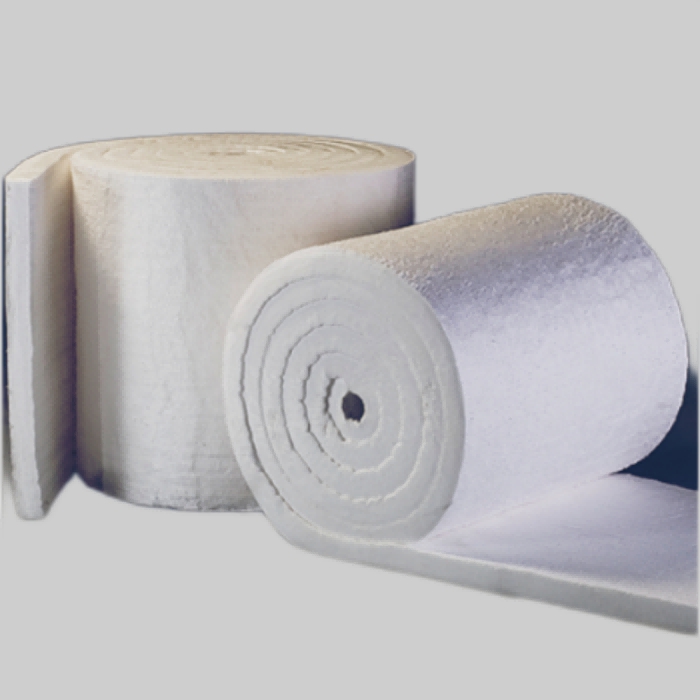

Integrating refractory, heat insulation and heat preservation, refractory fiber blanket is a refractory and heat insulating material made from aluminum silicate using resistance furnace needle punching process. It has good chemical stability, low heat capacity, good thermal stability and Thermal conductivity is low.

Application of refractory fiber blanket

Refractory fiber blanket used in the chemical industry, construction industry, electronics industry, kilns, industrial furnaces, high-temperature equipment, high-temperature pipelines and other fields for thermal insulation.

Advantages of refractory fiber blanket

◆ High temperature resistance, the maximum operating temperature can reach 1300℃.

◆ Low thermal conductivity and good thermal insulation performance. When used under the same conditions, the thermal conductivity of aluminum silicate products is more than 30% lower than other insulation materials.

◆ It has good sound absorption and sound insulation performance, and has good sound attenuation and sound insulation effect.

◆ It has good electrical insulation and high dielectric constant; it can be used as high-frequency insulating material.

Physical and chemical index of refractory fiber blanket

Product Brand	XWT40	XWT45	XWT48	XWT50	XWTZ15
Material	Aluminum silicate			High alumina	Zirconia
Al2O3%	40-44	44-46	46-50	50-60	30-35
Al2O3+Si02%	≥94	≥96	≥97	≥97	≥987(+Zr02)
ZrO2%	-	-	-	-	≥15
Fe2O3%	≤1. 2	≤1.0	≤0.8	≤0.5	≤0.5
Na2O+K2O%	≤0.5	≤0.5	≤0.2	≤0.2	≤0.2
Service temperature/℃	≤1000	≤1000	≤1100	≤1200	≤1350
Volume density /kg.m3	95~160	95~160	95~160	95~160	95~160
Thermal conductivity /W(m.k)	≤0.14 (600℃) ≤0.18 (800℃)	≤0.14 (600℃) ≤0.18 (800℃)	≤0.18 (800℃) ≤0.22 (1000℃)	≤0.18 (800℃) ≤0.22 (1000℃)	≤0.22 (1000℃) ≤0.28 (1200℃)
Heating shrinkage ／％	≤3 (800℃,24h)	≤3 (1000℃,24h)	≤3 (1100℃,24h)	≤3 (1200℃,24h)	≤3 (1300℃,24h)
General size	7200mmX600mmX12(20,25,40,50)mm
