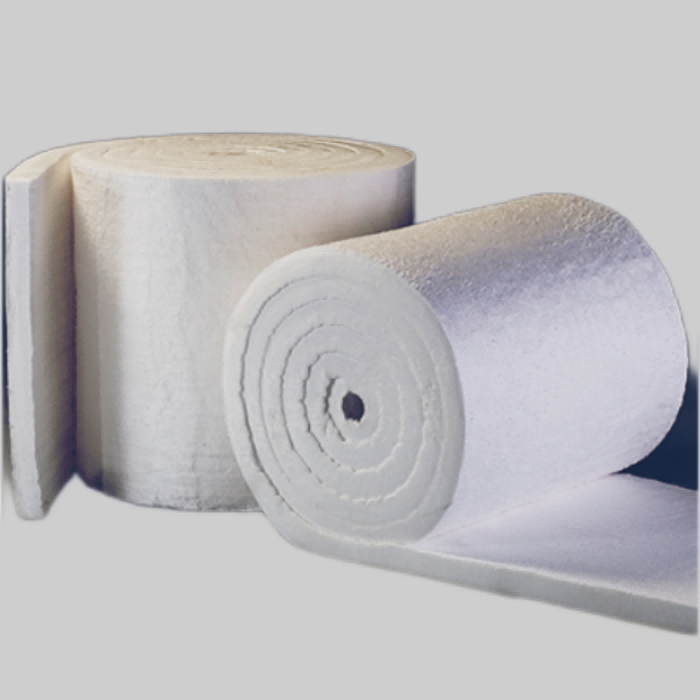

Product description
High temp ceramic blanket is made of burnt gemstone as the main raw material, and is made through processes such as melting, filament dispensing (appropriate amount of adhesive is added during the filament dispensing process), solidification in the curing chamber, and cutting. The whole process is automatically controlled by PLC, and the product is a thermal insulation material formed in integrated manufacturing process.
Application of high temp ceramic blanket
High temp ceramic blanket are widely used in annealing furnaces, forging furnaces, bell-type furnaces, aluminum melting furnaces, sintering furnaces, carbonization furnaces, tempering furnaces, heating furnaces, ladle insulation linings, hot-dip galvanizing annealing furnaces, ring furnaces, many types Heat treatment furnaces; glass annealing furnaces, glass melting furnaces, high temperature test furnaces; roller kilns, shuttle kilns, tunnel kilns, push plate kilns, special ceramic firing kilns; cracking furnaces, reforming furnaces, hydrogen production furnaces, normal and subtractive furnaces Press furnace, coking furnace.
Advantages of high temp ceramic blanket
Selected raw materials: Sufficient raw materials and selected quality ensure product quality.
Standardized production workshop:We have sufficient production capacity for large-volume orders and can customize various refractory products.
Fully automated production:Strict control on product quality and standardized production workshops.
Sufficient stock:The large warehouse has sufficient supply to meet your various requirments and save your time
Physical and chemical index of high temp ceramic blanket
|
Product Brand |
XWT40 |
XWT45 |
XWT48 |
XWT50 |
XWTZ15 |
|
Material |
Aluminum silicate |
High alumina |
Zirconia |
||
|
Al2O3% |
40-44 |
44-46 |
46-50 |
50-60 |
30-35 |
|
Al2O3+Si02% |
≥94 |
≥96 |
≥97 |
≥97 |
≥987(+Zr02) |
|
ZrO2% |
- |
- |
- |
- |
≥15 |
|
Fe2O3% |
≤1. 2 |
≤1.0 |
≤0.8 |
≤0.5 |
≤0.5 |
|
Na2O+K2O% |
≤0.5 |
≤0.5 |
≤0.2 |
≤0.2 |
≤0.2 |
|
Service temperature/℃ |
≤1000 |
≤1000 |
≤1100 |
≤1200 |
≤1350 |
|
Volume density /kg.m3 |
95~160 |
95~160 |
95~160 |
95~160 |
95~160 |
|
Thermal conductivity /W(m.k)
|
≤0.14 (600℃) ≤0.18 (800℃) |
≤0.14 (600℃) ≤0.18 (800℃) |
≤0.18 (800℃) ≤0.22 (1000℃) |
≤0.18 (800℃) ≤0.22 (1000℃) |
≤0.22 (1000℃) ≤0.28 (1200℃) |
|
Heating shrinkage ／％ |
≤3 (800℃,24h) |
≤3 (1000℃,24h) |
≤3 (1100℃,24h) |
≤3 (1200℃,24h) |
≤3 (1300℃,24h) |
|
General size |
7200mmX600mmX12(20,25,40,50)mm |
||||
Packages and delivery:

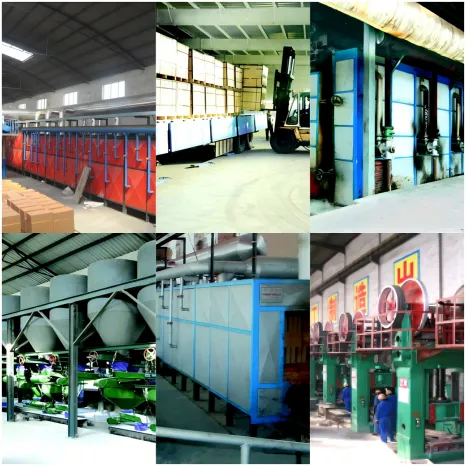

Factory Introduction
Why choose us?
The production process of CH Refractories is in strict accordance with ISO9001 international quality system standards. In order to ensure the high purity of raw materials, the inspection and selection of the main raw materials are all manually completed, and each material can flow into the next process after the manual inspection and selection of the inspection personnel. Auxiliary materials can be used only after passing inspection.
