Product description

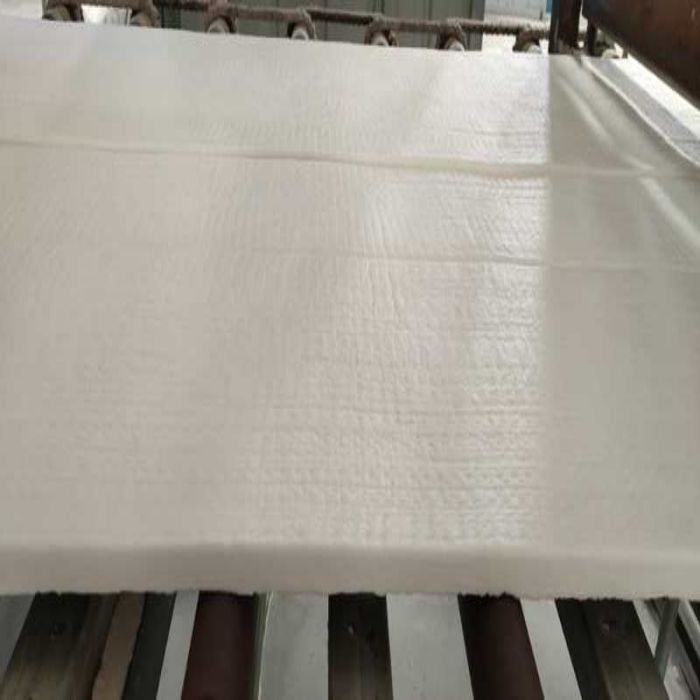

The zirconium-ceramic fiber blanket 128 kg m3 is made of high-quality burnt gemstones that have been melted at a high temperature of more than 2,000 degrees Celsius. A certain amount of zirconium oxide is added to the blanket. It is shaped after spinning, heat setting, acupuncture, and then rolled and packaged. The zirconium-containing fiber blanket has many advantages such as high temperature resistance (1430 degrees), good extensibility, strong shock resistance, light weight, good heat insulation, and strong stability. It does not deform at high temperatures of 1,400 degrees, so zirconium-containing fiber blankets are often used in the chemical industry, construction industry, electronics industry, kilns, industrial furnaces, high-temperature equipment, high-temperature pipelines and other fields for thermal insulation and insulation.
Application of ceramic fiber blanket 128 kg m3
1. Industrial furnace insulation: High-aluminum ceramic fiber blankets can be used as lining materials for furnaces, which can effectively reduce heat loss, improve the thermal efficiency of furnaces, and reduce energy
2. Heat insulation of kilns, electric furnaces and other equipment: High-aluminum ceramic fiber blankets can also be used for heat insulation of various kilns, electric furnaces and other equipment to protect the equipment from high temperature erosion and extend the service life of the equipment.
3. High-rise building fire protection, heat insulation kiln door, roof insulation, high temperature filtration material
Advantages of ceramic fiber blanket 128 kg m3
1. High temperature resistance, can withstand 1430 degrees.
2. It can compensate for the deformation of the furnace shell so that there are no gaps between components.
3. Low thermal conductivity will bring high energy saving effect and have the ability to resist thermal shock.
Physical and chemical index of ceramic fiber blanket 128 kg m3
|
Product Brand |
XWT40 |
XWT45 |
XWT48 |
XWT50 |
XWTZ15 |
|
Material |
Aluminum silicate |
High alumina |
Zirconia |
||
|
Al2O3% |
40-44 |
44-46 |
46-50 |
50-60 |
30-35 |
|
Al2O3+Si02% |
≥94 |
≥96 |
≥97 |
≥97 |
≥987(+Zr02) |
|
ZrO2% |
- |
- |
- |
- |
≥15 |
|
Fe2O3% |
≤1. 2 |
≤1.0 |
≤0.8 |
≤0.5 |
≤0.5 |
|
Na2O+K2O% |
≤0.5 |
≤0.5 |
≤0.2 |
≤0.2 |
≤0.2 |
|
Service temperature/℃ |
≤1000 |
≤1000 |
≤1100 |
≤1200 |
≤1350 |
|
Volume density /kg.m3 |
95~160 |
95~160 |
95~160 |
95~160 |
95~160 |
|
Thermal conductivity /W(m.k)
|
≤0.14 (600℃) ≤0.18 (800℃) |
≤0.14 (600℃) ≤0.18 (800℃) |
≤0.18 (800℃) ≤0.22 (1000℃) |
≤0.18 (800℃) ≤0.22 (1000℃) |
≤0.22 (1000℃) ≤0.28 (1200℃) |
|
Heating shrinkage ／％ |
≤3 (800℃,24h) |
≤3 (1000℃,24h) |
≤3 (1100℃,24h) |
≤3 (1200℃,24h) |
≤3 (1300℃,24h) |
|
General size |
7200mmX600mmX12(20,25,40,50)mm |
||||

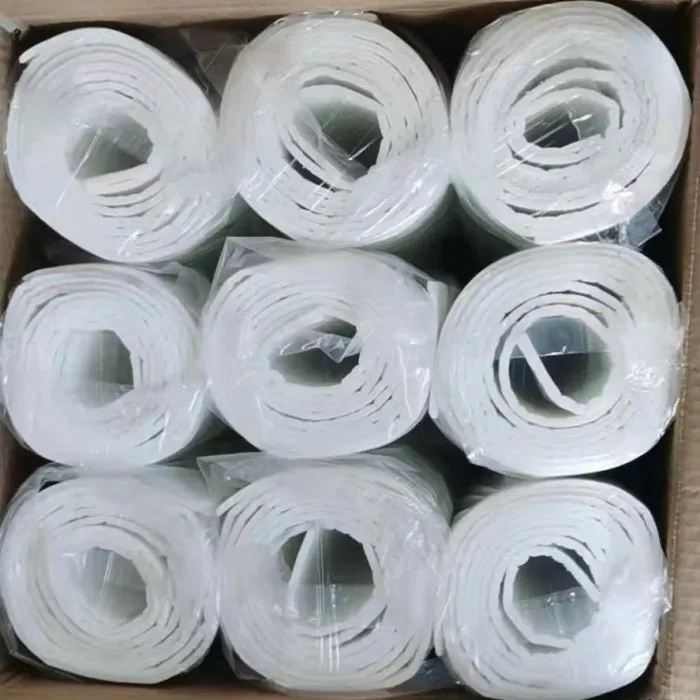

Packages and delivery:
FAQ
Q: What is Foreign Trade-Express?
Q: How can I get price at soonest?
Q: Can I get sample for testing?
Q: What is MOQ of your product?
Q: How can you guarantee your products quality
Q: Which countries you mainly exporting to?
Q: How long is the production time?
Q: What payment term you can accept?
Q: Can you do OEM? Or customized packages?
Q: Can I visit your factory?
Physical and chemical index of ceramic fiber blanket 128 kg m3
|
Product Brand |
XWT40 |
XWT45 |
XWT48 |
XWT50 |
XWTZ15 |
|
Material |
Aluminum silicate |
High alumina |
Zirconia |
||
|
Al2O3% |
40-44 |
44-46 |
46-50 |
50-60 |
30-35 |
|
Al2O3+Si02% |
≥94 |
≥96 |
≥97 |
≥97 |
≥987(+Zr02) |
|
ZrO2% |
- |
- |
- |
- |
≥15 |
|
Fe2O3% |
≤1. 2 |
≤1.0 |
≤0.8 |
≤0.5 |
≤0.5 |
|
Na2O+K2O% |
≤0.5 |
≤0.5 |
≤0.2 |
≤0.2 |
≤0.2 |
|
Service temperature/℃ |
≤1000 |
≤1000 |
≤1100 |
≤1200 |
≤1350 |
|
Volume density /kg.m3 |
95~160 |
95~160 |
95~160 |
95~160 |
95~160 |
|
Thermal conductivity /W(m.k)
|
≤0.14 (600℃) ≤0.18 (800℃) |
≤0.14 (600℃) ≤0.18 (800℃) |
≤0.18 (800℃) ≤0.22 (1000℃) |
≤0.18 (800℃) ≤0.22 (1000℃) |
≤0.22 (1000℃) ≤0.28 (1200℃) |
|
Heating shrinkage ／％ |
≤3 (800℃,24h) |
≤3 (1000℃,24h) |
≤3 (1100℃,24h) |
≤3 (1200℃,24h) |
≤3 (1300℃,24h) |
|
General size |
7200mmX600mmX12(20,25,40,50)mm |
||||
