Description

Technical Parameters

Product description

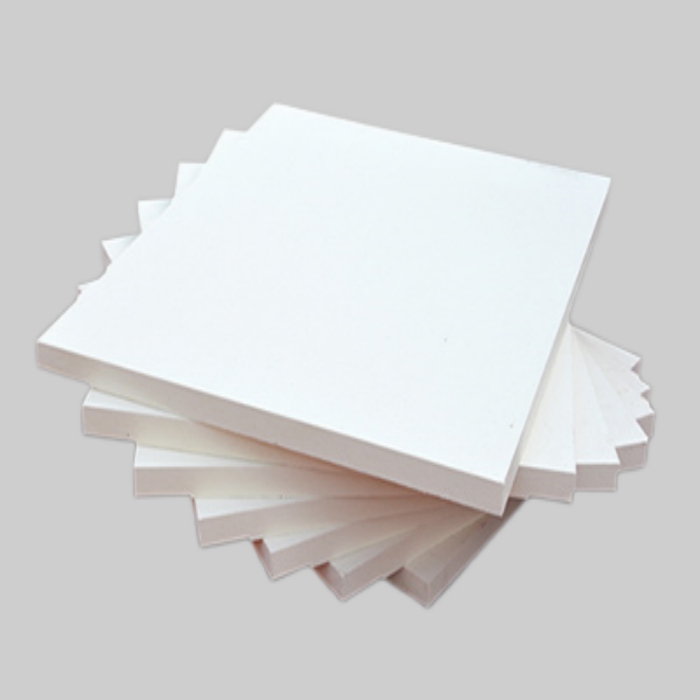

High temperature ceramic insulation board is processed by wet vacuum forming process. The strength of this type of product is higher than fiber blanket and vacuum forming felt, and it is suitable for high-temperature fields that require rigid strength of the product.

Application of high temperature ceramic insulation board

●Steel industry: expansion joints, lining insulation, insulation sheets and mold insulation;
●Non-ferrous metal industry: backing insulation material, tundish and launder cover, used for pouring copper and copper-containing alloys;
●Ceramic industry: lightweight kiln car structure and kiln hot surface lining, kiln temperature zone separation and fire-stopping materials;

Advantages of high temperature ceramic insulation board

◆Lightweight and low thermal conducitivty

◆High working temperature resistance and insulation

◆Superior strength for easy installation and maintenance

◆Low fiber shot contents and high resilience

◆Low heat storage for high efficiency enery savings

◆Can be foled, compressed for modules or blocks as insulation

Physical and chemical index of high temperature ceramic insulation board

Item	XWK40	XWK45	XWK48	XWK50	XWBZ15
Material	Aluminum silicate			High alumina	Zirconia
Al2O3%	40-44	44-46	46-50	50-60	30-35
Al2O3+Si02%	≥94	≥97	≥98	≥98	≥98 (+Zr02)
ZrO2%	-	-	-	-	≥15
Fe2O3%	≤1. 2	≤1.0	≤0.8	≤0.5	≤0.5
Na2O+K2O%	≤0.5	≤0.5	≤0.2	≤0.2	≤0.2
Service temperature ℃	≤1000	≤1000	≤1100	≤1200	≤1350
Volume density /kg.m3	200~600	200~600	200~600	200~600	200~600
Thermal conductivity /W(m.k)	≤0.14 (600℃) ≤0.18 (800℃)	≤0.14 (600℃) ≤0.18 (800℃)	≤0.18 (800℃) ≤0.22 (1000℃)	≤0.18 (800℃) ≤0.22 (1000℃)	≤0.88 (1000℃) ≤0.28 (1200℃)
Heating shrinkage ／％	≤1.5 (900℃,24H)	≤1.5 (1000℃,24H)	≤1.5 (1100℃,24H)	≤1.5 (1200℃,24H)	≤1.5 (1300℃,24H)
General size	600mmX400mmX(10-50)mm 900mmX600mmX(10-50)mm

FAQ

Q: How can I get price at soonest?

A: Please send WhatsApp message to +8619903978071 or send email to sales03@chrefractory.com

Q: Can I get sample for testing?

A: Sure, welcome to ask free sample. Kindly please pay freight charges from China to your country only

Q: What is MOQ of your product?

A: 100 pcs

Q: How can you guarantee your products quality

A: We can supply products SGS testing report. Welcome third party factory inspection as well.

Q: Which countries you mainly exporting to?

A: Our mainly markets including Asia, Middle East, South America and Europe. More than 50 countries.

Q: How long is the production time?

A:7-15 days according to order quantity

Q: What payment term you can accept?

A: L/C, T/T, payment against copy of BL

Q: Can you do OEM? Or customized packages?

A: Sure! We can print packages according to your requirements

Q: Can I visit your factory?

A: Welcome at any time!
