Product description

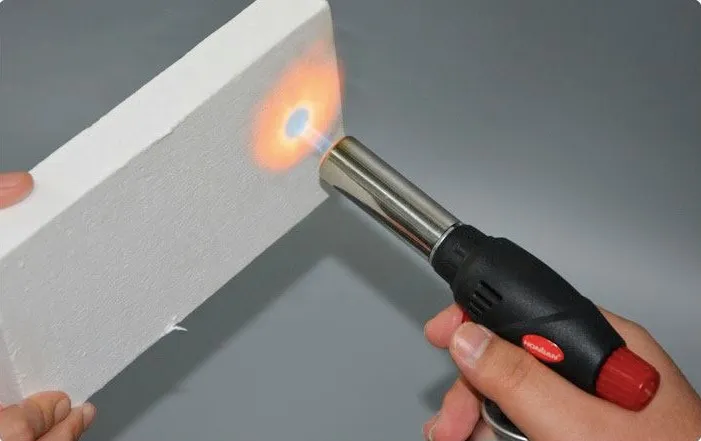

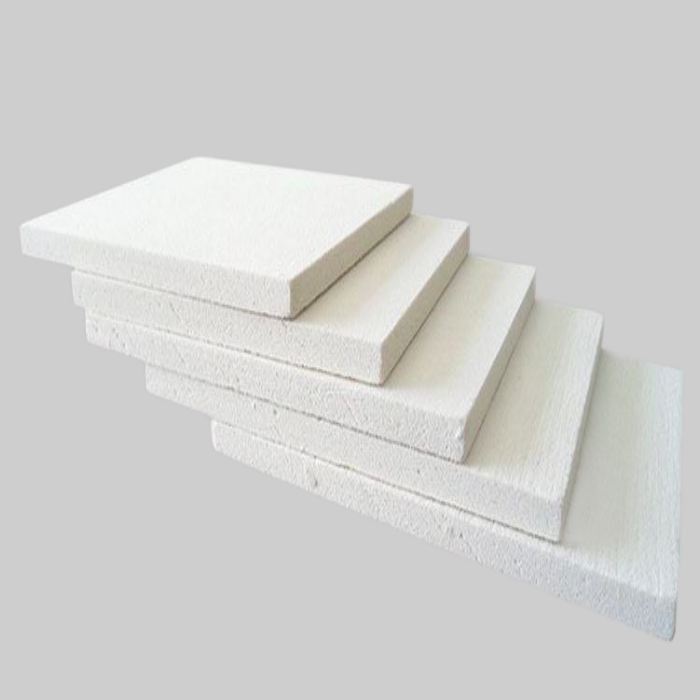

The ceramic fiber thermal insulation board is made from refractory fiber by adding suitable binders through wet suction vacuum molding process. It has good performance on size, roughness, and radian, and has the characteristics on high strength, low thermal conductivity, good thermal shock resistance and spalling resistance. It can be easily cut and installed, and can widely be used for kiln, furnace, and other high temperature equipment.
CH Refractories manufactured Refractory ceramic fiber board is customized, size can be made according to requirements.

Application of ceramic fiber thermal insulation board

1. Backing insulation for kilns in cement and other building materials industries;
2. Kiln backing insulation in petrochemical, metallurgy, ceramics and glass industries;
3. Backing insulation of heat treatment kiln;
4. Backing insulation for non-ferrous metal industry;
5. High temperature reaction and heating equipment backing insulation

Advantages of ceramic fiber thermal insulation board

●Low heat capacity and low thermal conductivity;

●Non-brittle material, good toughness;

●Accurate size and good flatness;

●Easy to cut and install, convenient for construction;

●Excellent wind erosion resistance;

Physical and chemical index of ceramic fiber thermal insulation board

Item	XWK40	XWK45	XWK48	XWK50	XWBZ15
Material	Aluminum silicate			High alumina	Zirconia
Al2O3%	40-44	44-46	46-50	50-60	30-35
Al2O3+Si02%	≥94	≥97	≥98	≥98	≥98 (+Zr02)
ZrO2%	-	-	-	-	≥15
Fe2O3%	≤1. 2	≤1.0	≤0.8	≤0.5	≤0.5
Na2O+K2O%	≤0.5	≤0.5	≤0.2	≤0.2	≤0.2
Service temperature ℃	≤1000	≤1000	≤1100	≤1200	≤1350
Volume density /kg.m3	200~600	200~600	200~600	200~600	200~600
Thermal conductivity /W(m.k)	≤0.14 (600℃) ≤0.18 (800℃)	≤0.14 (600℃) ≤0.18 (800℃)	≤0.18 (800℃) ≤0.22 (1000℃)	≤0.18 (800℃) ≤0.22 (1000℃)	≤0.88 (1000℃) ≤0.28 (1200℃)
Heating shrinkage ／％	≤1.5 (900℃,24H)	≤1.5 (1000℃,24H)	≤1.5 (1100℃,24H)	≤1.5 (1200℃,24H)	≤1.5 (1300℃,24H)
General size	600mmX400mmX(10-50)mm 900mmX600mmX(10-50)mm

FAQ

Q: How can I get price at soonest?

A: Please send WhatsApp message to +8619903978071 or send email to sales03@chrefractory.com

Q: Can I get sample for testing?

A: Sure, welcome to ask free sample. Kindly please pay freight charges from China to your country only

Q: What is MOQ of your product?

A: 100 pcs

Q: How can you guarantee your products quality

A: We can supply products SGS testing report. Welcome third party factory inspection as well.

Q: Which countries you mainly exporting to?

A: Our mainly markets including Asia, Middle East, South America and Europe. More than 50 countries.

Q: How long is the production time?

A: 15 days generally

Q: What payment term you can accept?

A: L/C, T/T, payment against copy of BL

Q: Can you do OEM? Or customized packages?

A: Sure! We can print packages according to your requirements

Q: Can I visit your factory?

A: Welcome at any time!
