Description

Technical Parameters

Product description

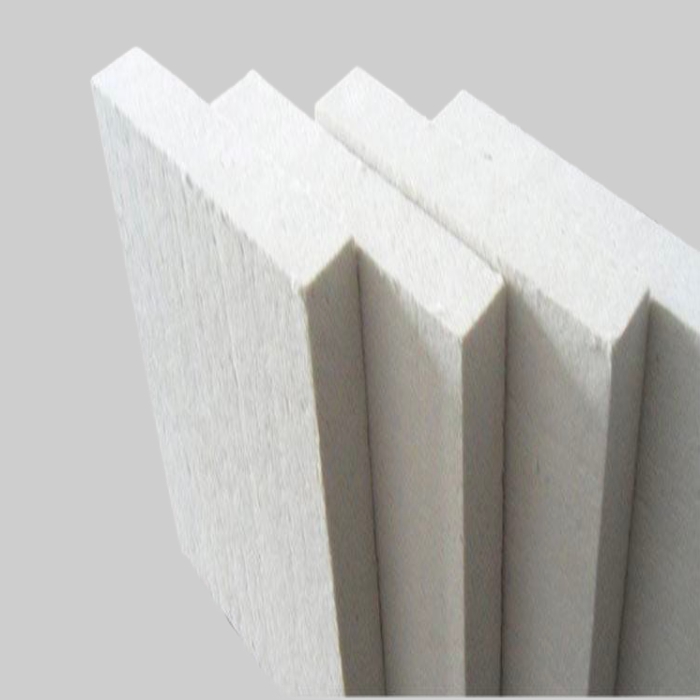

Refractory insulation board is made of ceramic fiber cotton produced by resistance furnace injection fiber forming process as raw material and processed by vacuum forming process. It has good performance on size, roughness, and radian, and has the characteristics on high strength, low thermal conductivity, good thermal shock resistance and spalling resistance. It can be easily cut and installed.

Application of refractory insulation board

1. Backing insulation for kilns in cement and other building materials industries;
2. Kiln backing insulation in petrochemical, metallurgy, ceramics and glass industries;
3. Backing insulation of heat treatment kiln;

Advantages of refractory insulation board

◆Lightweight and low thermal conductivity

◆High working temperature resistance and insulation

◆Continuous production, uniform fiber distribution and stable performance

◆Accurate size and good flatness

Physical and chemical index of refractory insulation board

Item	XWK40	XWK45	XWK48	XWK50	XWBZ15
Material	Aluminum silicate			High alumina	Zirconia
Al2O3%	40-44	44-46	46-50	50-60	30-35
Al2O3+Si02%	≥94	≥97	≥98	≥98	≥98 (+Zr02)
ZrO2%	-	-	-	-	≥15
Fe2O3%	≤1. 2	≤1.0	≤0.8	≤0.5	≤0.5
Na2O+K2O%	≤0.5	≤0.5	≤0.2	≤0.2	≤0.2
Service temperature ℃	≤1000	≤1000	≤1100	≤1200	≤1350
Volume density /kg.m3	200~600	200~600	200~600	200~600	200~600
Thermal conductivity /W(m.k)	≤0.14 (600℃) ≤0.18 (800℃)	≤0.14 (600℃) ≤0.18 (800℃)	≤0.18 (800℃) ≤0.22 (1000℃)	≤0.18 (800℃) ≤0.22 (1000℃)	≤0.88 (1000℃) ≤0.28 (1200℃)
Heating shrinkage ／％	≤1.5 (900℃,24H)	≤1.5 (1000℃,24H)	≤1.5 (1100℃,24H)	≤1.5 (1200℃,24H)	≤1.5 (1300℃,24H)
General size	600mmX400mmX(10-50)mm 900mmX600mmX(10-50)mm

We are experts at this industry

CH Refractories was founded in 1984, have advanced process equipment and raw material preparation system, and a full set of refractories conventional testing equipment, can ensure the quality before sending to customers.

Professional Team

We have 30 years manufacturing experience and 10 years exporting experience

exporting area

Middle east, South America, Asia and Europe

qualified staff

ISO 9001/SGS testing report

FAQ

Q: How can I get price at soonest?

A: Please send WhatsApp message to +8619903978071 or send email to sales03@chrefractory.com

Q: Can I get sample for testing?

A: Sure, welcome to ask free sample. Kindly please pay freight charges from China to your country only

Q: What is MOQ of your product?

A: 100 pcs

Q: How can you guarantee your products quality

A: We can supply products SGS testing report. Welcome third party factory inspection as well.

Q: Which countries you mainly exporting to?

A: Our mainly markets including Asia, Middle East, South America and Europe. More than 50 countries.

Q: How long is the production time?

A: 7-15 days

Q: What payment term you can accept?

A: L/C, T/T, payment against copy of BL

Q: Can you do OEM? Or customized packages?

A: Sure! We can print packages according to your requirements

Q: Can I visit your factory?

A: Welcome at any time!
