Product description

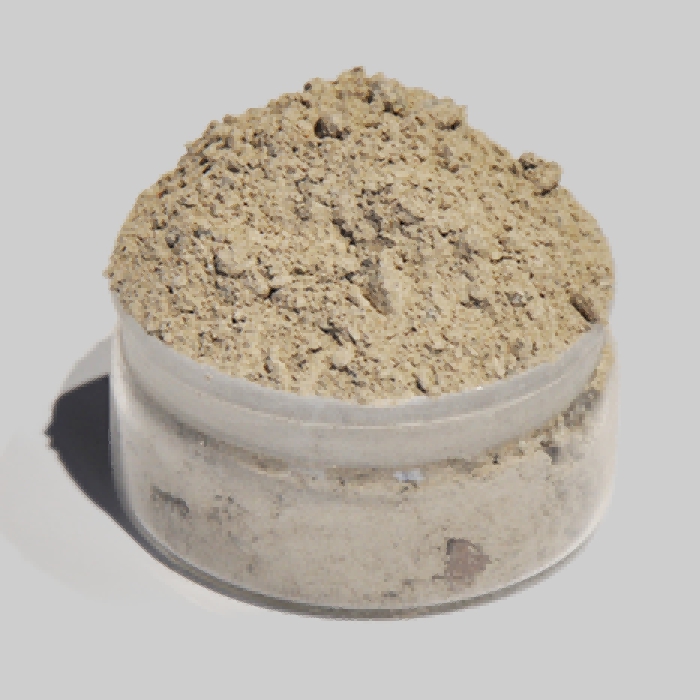

Insulating castable refractory are mainly made of lightweight refractory aggregates, powders, and binder admixtures.
insulating castable refractory can be divided into: according to volume density:
Semi-light insulation castable, bulk density is 1.0~1.8g/cm³;
Lightweight refractory castable, bulk density is 0.4~1.0g/cm³;
Ultra-light refractory castable with a bulk density of less than 0.4g/cm³.
The smaller the density, the better the thermal insulation performance, and the higher the price.
Classification of insulating castable refractory
Insulating castable refractory classified by operating temperature can be divided into three categories:
Low-temperature insulation (lightweight) refractory castable, operating temperature is 600~900C;
Medium temperature insulating (lightweight) refractory castable, operating temperature is 900-1200C;
High-temperature insulation (lightweight) refractory castables, operating temperature >1200C.
Application of insulating castable refractory
Physical and chemical index of insulating castable refractory
|
Items |
CH-0.6 |
CH-0.8 |
CH-1.0 |
CH-1.2 |
CH-1.4 |
CH-1.6 |
|
Bulk density g/cm3 ≥ |
0.6 |
0.8 |
1.0 |
1.2 |
1.4 |
1.6 |
|
Compressive strength (110℃×24h) MPa ≥ |
1.5 |
2 |
3 |
4 |
8 |
18 |
|
PLC (800℃×3h)/ % |
0～1.7 |
0～1.5 |
0～1.2 |
0～0.8 |
0～0.7 |
0～0.6 |
|
Thermal Conductivity (350±25℃) W/m.k ≤ |
0.20 |
0.25 |
0.35 |
0.45 |
0.60 |
0.70 |
|
Application temp /℃≤ |
620 |
800 |
1000 |
1100 |
1200 |
1300 |

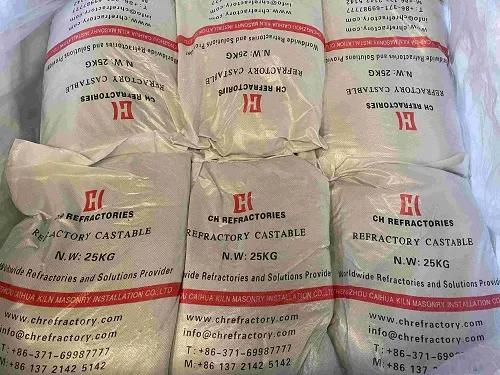

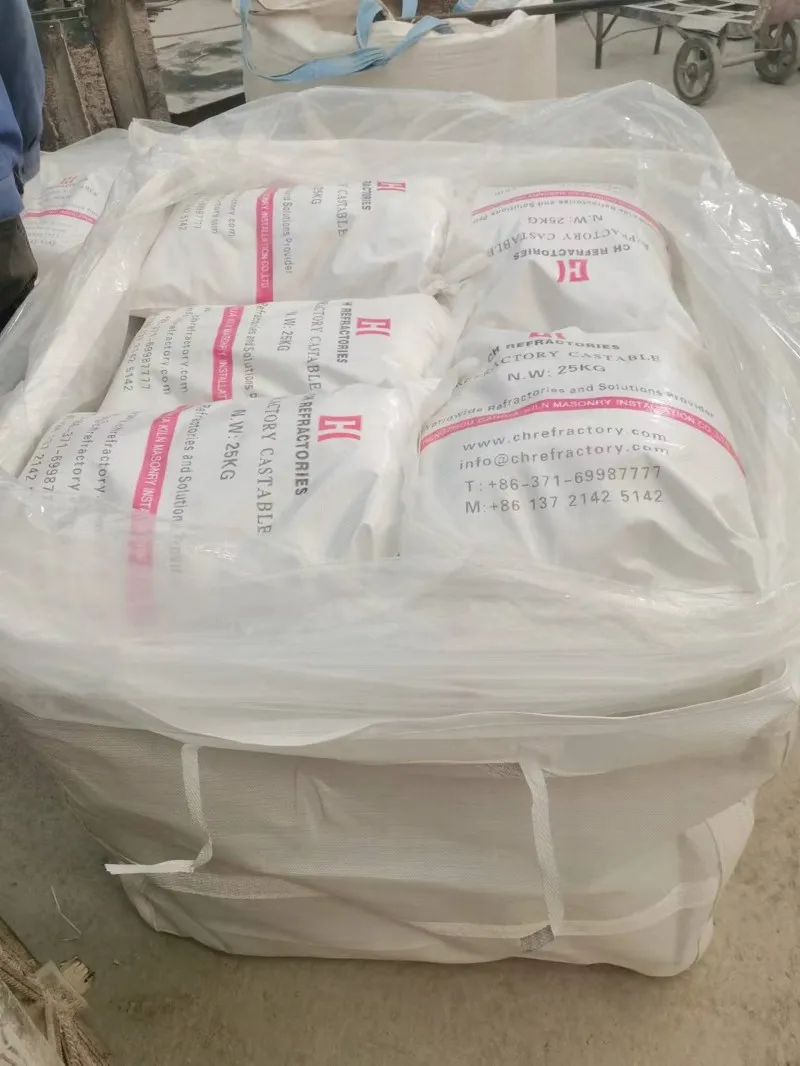

Packages
CH Refractories was founded in 1984, have advanced process equipment and raw material preparation system, and a full set of refractories conventional testing equipment, can ensure the quality before sending to customers.
CH Refractories mainly produce refractory materials for metallurgical, coking, cement industry, electric power industry, chemical and general industrial furnaces. Annual production of a variety of shaped and unshaped refractory materials 120,000 tons.
exporting area
Middle east, South America, Middle Asia, Southeast Asia, Africa and other regions.
Proven Experience
CH Refractories was founded in 1984 with decades experience in producing refractory products
Professional Team
We have 30 years manufacturing experience and 10 years exporting experience
FAQ
Q: How can I get price at soonest?
Q: Can I get sample for testing?
Q: What is MOQ of your product?
Q: How can you guarantee your products quality
Q: Which countries you mainly exporting to?
Q: How long is the production time?
Q: What payment term you can accept?
Q: Can you do OEM? Or customized packages?
Q: Can I visit your factory?
