Castable ceramic insulation are high temperature resistant castable that used for insulation layer of high temperature kiln or furnace, the working temperature is up to 1000-1300 degree
Send Inquiry
Description
Technical Parameters
Product description

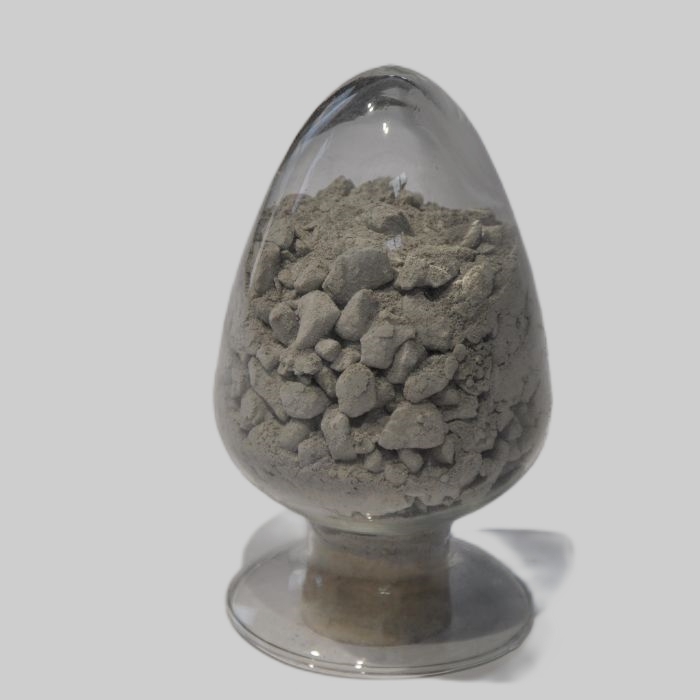

Castable ceramic insulation is made of aluminate cement, ceramsite, high-aluminum fine materials, and a number of additives. This product has the characteristics of light volume, high compressive strength, and resistance to acid and acidic gas corrosion. This type of refractory castable has the characteristics of light weight, high compressive strength, acid and acid gas corrosion resistance, heat insulation, thermal insulation, and low breakdown rate. It is easy to construct and is an ideal product for construction in areas with alkali corrosion resistance under high temperatures. Good workability, strong bonding force, long initial setting time and construction operability time, rapid strength growth, strong impermeability, no need for acidification treatment, easy to ensure the density and fullness of masonry mortar joints, and can significantly improve the interior of the chimney The air tightness and integrity of the lining wall and the anti-corrosion ability of the lining.

31



Application of castable ceramic insulation



castable ceramic insulation have a wide range of applications. They are commonly used as linings of kilns, thermal equipment, flues and smoke windows in industrial sectors such as metallurgical machinery, petrochemicals, electric power and building materials. Thermal insulation (thermal insulation) layer. But now, with the improvement of the material of lightweight refractory castables and the advancement of preparation technology, there are many occasions where it is directly used as the working lining of atmosphere furnaces. Generally, low-temperature and medium-temperature lightweight castables are mainly used as thermal insulation linings and are not in direct contact with flames. A large part of high-temperature lightweight castables are directly used as working linings that are not in contact with the melt or solid medium in the furnace. In particular, it can be used as the working lining of winter seed heating furnaces and heat treatment furnaces, which can greatly save energy consumption.

40



Physical and chemical index of castable ceramic insulation



Items

CH-0.6

CH-0.8

CH-1.0

CH-1.2

CH-1.4

CH-1.6

Bulk density g/cm3 ≥

0.6

0.8

1.0

1.2

1.4

1.6

Compressive strength (110℃×24h) MPa ≥

1.5

2

3

4

8

18

PLC (800℃×3h)/ %

0~1.7

0~1.5

0~1.2

0~0.8

0~0.7

0~0.6

Thermal Conductivity (350±25℃) W/m.k ≤

0.20

0.25

0.35

0.45

0.60

0.70

Application temp /℃≤

620

800

1000

1100

1200

1300

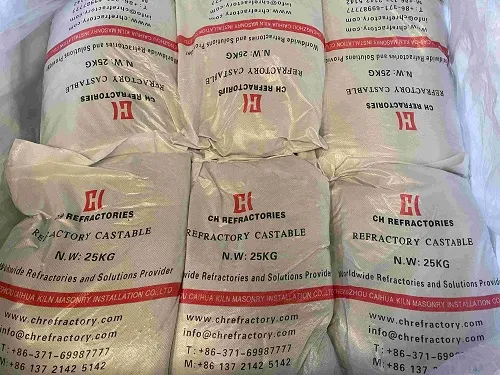

Packages



37



why choose us?

CH Refractories was founded in 1984, have advanced process equipment and raw material preparation system, and a full set of refractories conventional testing equipment, can ensure the quality before sending to customers.

CH Refractories mainly produce refractory materials for metallurgical, coking, cement industry, electric power industry, chemical and general industrial furnaces. Annual production of a variety of shaped and unshaped refractory materials 120,000 tons. The refractory products exported to Middle east, South America, Middle Asia, Southeast Asia, Africa and other regions.

Proven Experience

CH Refractories was founded in 1984 with decades experience in producing refractory products

annual output

120,000 tons.

qualified staff

ISO 9001/SGS testing report



FAQ

Q: How can I get price at soonest?

A: Please send WhatsApp message to +8619903978071 or send email to sales03@chrefractory.com

Q: Can I get sample for testing?

A: Sure, welcome to ask free sample. Kindly please pay freight charges from China to your country only

Q: What is MOQ of your product?

A: 10 tons

Q: How can you guarantee your products quality

A: We can supply products SGS testing report. Welcome third party factory inspection as well.

Q: Which countries you mainly exporting to?

A: Our mainly markets including Asia, Middle East, South America and Europe. More than 50 countries.

Q: How long is the production time?

A: 7-10 days

Q: What payment term you can accept?

A: L/C, T/T, payment against copy of BL

Q: Can you do OEM? Or customized packages?

A: Sure! We can print packages according to your requirements

Q: Can I visit your factory?

A: Welcome at any time!





Hot Tags: castable ceramic insulation, China castable ceramic insulation manufacturers, factory, durable fire brick, fire brick importer, top grade fire brick, fire brick for heating system, fireproof brick, fire brick with standard size
