Product description

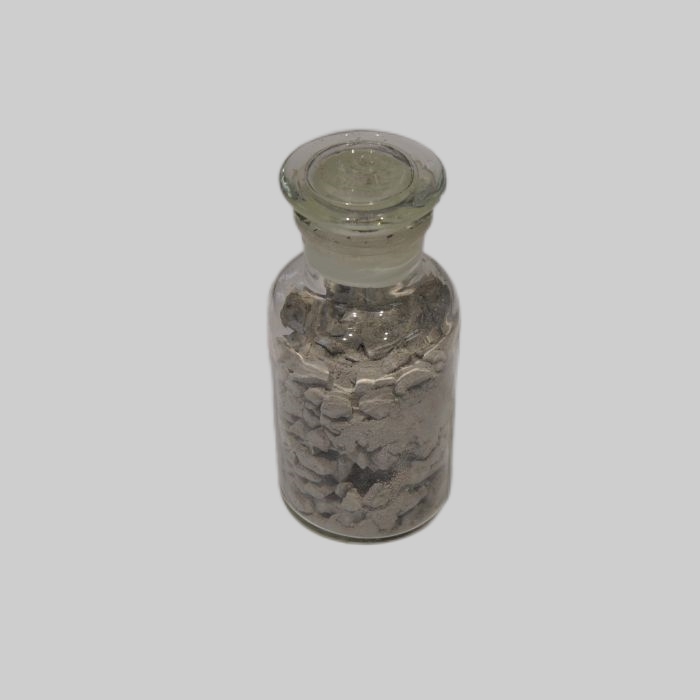

Refractory castable concrete was also called refractory castables. The production process of refractory castable concrete is simple, labor-saving and energy-saving, with high construction efficiency and good quality. It can be prepared on site or materials with excellent performance can be selected as needed. Therefore, refractory castable is an unshaped refractory material that is used in large amounts and has a wide range of applications in furnace construction projects.
Application of refractory castable concrete :
Refractory castables are used in various heating furnaces, soaking furnaces, circulating fluidized bed boilers, waste incinerators, waste heat power generation boilers, hot blast furnaces, continuous casting tundish, hot metal tanks and tapping troughs, etc.
Physical and chemical index of refractory castable concrete
|
Items |
CH-75 |
CH-80 |
|
|
AL2O3 % ≥ |
75 |
80 |
|
|
SiO2 % ≤ |
20 |
16 |
|
|
Bulk density g/cm3 ≥ |
2.6 |
2.7 |
|
|
Flexural strength/MPa ≥ |
110℃×24h |
7.0 |
8.0 |
|
1100℃×3h |
11 |
12 |
|
|
Compressive strength/ MPa ≥ |
110℃×24h |
60 |
70 |
|
1100℃×3h |
70 |
85 |
|
|
Normal temperature wear/ cm3≤ |
8 |
9 |
|
|
Refractoriness /℃ ≥ |
1790 |
1790 |
|
|
Thermal shock stability (900℃ ,water-cooling) / times≥ |
20 |
20 |
|
|
PLC (1000℃×3h) / % ≤ |
-0.25 |
-0.25 |
|
|
The self flow value /mm ≥ |
200 |
200 |
|

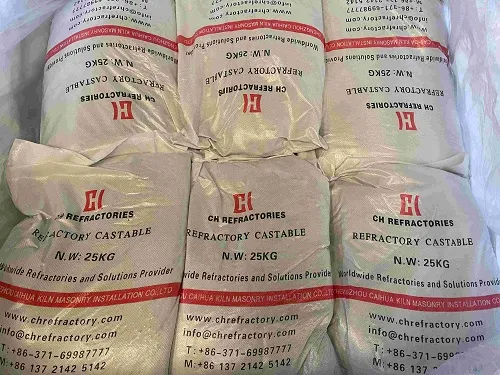

Packages

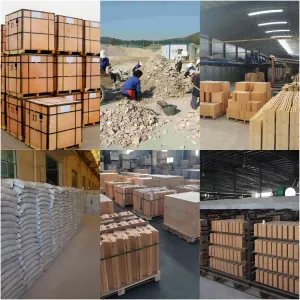

CH Refractories mainly produce refractory materials for metallurgical, coking, cement industry, electric power industry, chemical and general industrial furnaces. Annual production of a variety of shaped and unshaped refractory materials 120,000 tons. The refractory products exported to Middle east, South America, Middle Asia, Southeast Asia, Africa and other regions.
01
High Quality
CH Refractories producing products inder the ISO 9001 standard, and we provide SGS testing report for each order
02
Advanced Equipment
2 sets 1000 tons of brick press , 4 sets 630 tons of brick press, 14 sets 400 tons of brick press , 22 sets 315 tons of brick press, 2 sets 160 tons of brick press ,8 sets 60 tons of brick press . Also have a full set of refractories conventional testing equipment, can ensure the quality before sending products to customers.
03
Professional Team
More than 30 years manufacturing experience and 10 years exporting experience
04
Custom Service
Integrated factory strength to support all kinds of refractory products customization
FAQ
Q: How can I get price at soonest?
Q: Can I get sample for testing?
Q: What is MOQ of your product?
Q: How can you guarantee your products quality
Q: Which countries you mainly exporting to?
Q: How long is the production time?
Q: What payment term you can accept?
Q: Can you do OEM? Or customized packages?
Q: Can I visit your factory?
