Product description

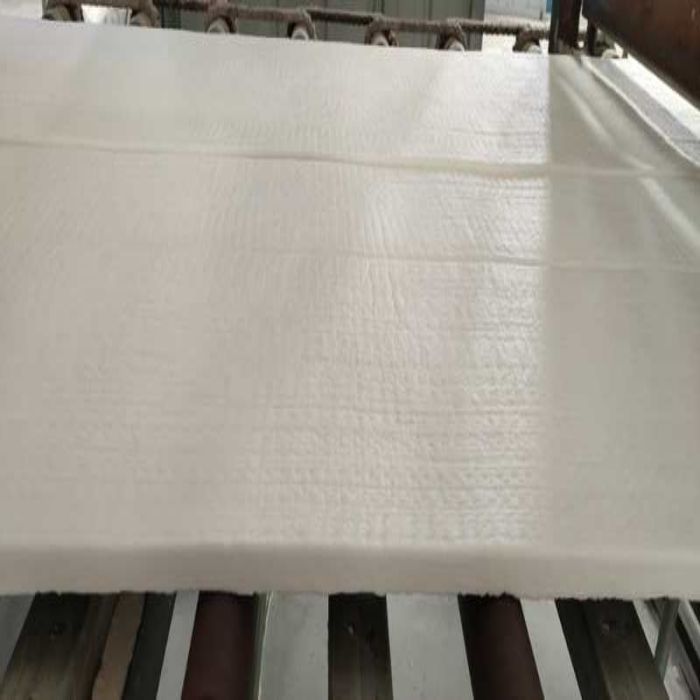

The refractory insulation blanket is made of high-quality burnt gemstones that have been melted at a high temperature of more than 2,000 degrees Celsius. A certain amount of zirconium oxide is added to the blanket. It is shaped after spinning, heat setting, acupuncture, and then rolled and packaged.
Application of refractory insulation blanket
The blanket are used for chemical industry, construction industry, electronics industry, kilns, industrial furnaces, high-temperature equipment, high-temperature pipelines and other fields for thermal insulation.
Advantages of refractory insulation blanket
◆Lightweight and low thermal conducitivty
◆High working temperature resistance and insulation
◆Superior strength for easy installation and maintenance
◆Low fiber shot contents and high resilience
◆Low heat storage for high efficiency enery savings
◆Can be foled, compressed for modules or blocks as insulation
Physical and chemical index of refractory insulation blanket
|
Product Brand |
XWT40 |
XWT45 |
XWT48 |
XWT50 |
XWTZ15 |
|
Material |
Aluminum silicate |
High alumina |
Zirconia |
||
|
Al2O3% |
40-44 |
44-46 |
46-50 |
50-60 |
30-35 |
|
Al2O3+Si02% |
≥94 |
≥96 |
≥97 |
≥97 |
≥987(+Zr02) |
|
ZrO2% |
- |
- |
- |
- |
≥15 |
|
Fe2O3% |
≤1. 2 |
≤1.0 |
≤0.8 |
≤0.5 |
≤0.5 |
|
Na2O+K2O% |
≤0.5 |
≤0.5 |
≤0.2 |
≤0.2 |
≤0.2 |
|
Service temperature/℃ |
≤1000 |
≤1000 |
≤1100 |
≤1200 |
≤1350 |
|
Volume density /kg.m3 |
95~160 |
95~160 |
95~160 |
95~160 |
95~160 |
|
Thermal conductivity /W(m.k)
|
≤0.14 (600℃) ≤0.18 (800℃) |
≤0.14 (600℃) ≤0.18 (800℃) |
≤0.18 (800℃) ≤0.22 (1000℃) |
≤0.18 (800℃) ≤0.22 (1000℃) |
≤0.22 (1000℃) ≤0.28 (1200℃) |
|
Heating shrinkage ／％ |
≤3 (800℃,24h) |
≤3 (1000℃,24h) |
≤3 (1100℃,24h) |
≤3 (1200℃,24h) |
≤3 (1300℃,24h) |
|
General size |
7200mmX600mmX12(20,25,40,50)mm |
||||

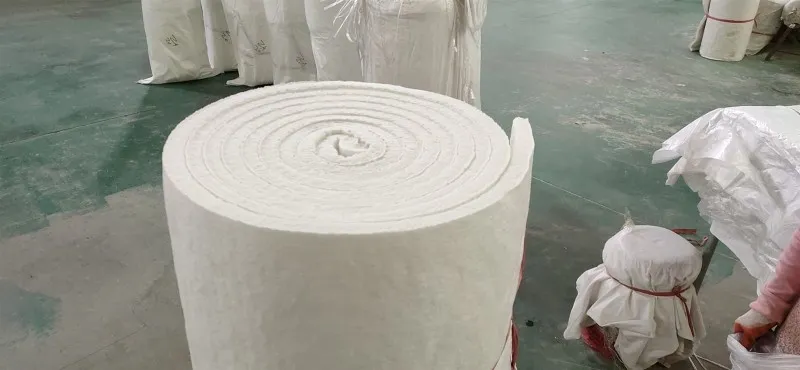

Packages and delivery:
why choose us?
The production process of CH Refractories is in strict accordance with ISO9001 international quality system standards. In order to ensure the high purity of raw materials, the inspection and selection of the main raw materials are all manually completed, and each material can flow into the next process after the manual inspection and selection of the inspection personnel. Auxiliary materials can be used only after passing inspection.
large enterprise scale
Efficient and precise processing and testing equipment.
Standardized Production
Passed ISO9001 certification and obtained relevant patent certificates.
High-Quality Customized Services
No intermediate links, providing one-stop service from design, processing, mold trial to mass production.
FAQ
Q: How can I get price at soonest?
Q: Can I get sample for testing?
Q: What is MOQ of your product?
Q: How can you guarantee your products quality
Q: Which countries you mainly exporting to?
Q: How long is the production time?
Q: What payment term you can accept?
Q: Can you do OEM? Or customized packages?
Q: Can I visit your factory?
