Product description

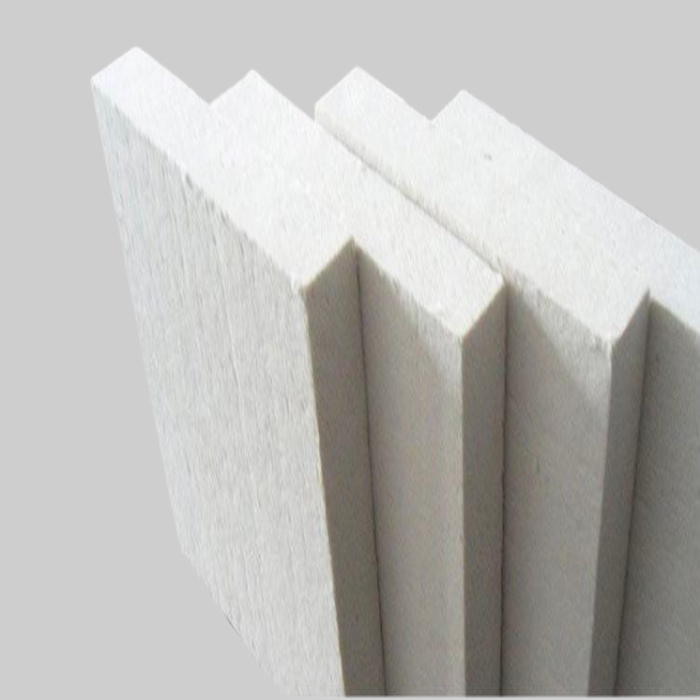

Refractory fiber board is made of ceramic fiber cotton produced by resistance furnace injection fiber forming process as raw material and processed by vacuum forming process. It is a lightweight, flexible refractory fiber insulation material, which is processed from a combination of high-purity refractory oxides and organic binders.
Application of refractory fiber board
● Ceramic industry: lightweight kiln car structure and kiln hot surface lining, kiln temperature zone separation and fire-stopping materials;
● Backing insulation for kilns in cement and other building materials industries;
● Light industry: Lining of combustion chambers of industrial and domestic boilers
Advantages of refractory fiber board
Selected raw materials: Sufficient raw materials and selected quality ensure product quality.
Fully automated production:Strict control on product quality and standardized production workshops.
Physical and chemical index of refractory fiber board
|
Item |
XWK40 |
XWK45 |
XWK48 |
XWK50 |
XWBZ15 |
|
Material |
Aluminum silicate |
High alumina |
Zirconia |
||
|
Al2O3% |
40-44 |
44-46 |
46-50 |
50-60 |
30-35 |
|
Al2O3+Si02% |
≥94 |
≥97 |
≥98 |
≥98 |
≥98 (+Zr02) |
|
ZrO2% |
- |
- |
- |
- |
≥15 |
|
Fe2O3% |
≤1. 2 |
≤1.0 |
≤0.8 |
≤0.5 |
≤0.5 |
|
Na2O+K2O% |
≤0.5 |
≤0.5 |
≤0.2 |
≤0.2 |
≤0.2 |
|
Service temperature ℃ |
≤1000 |
≤1000 |
≤1100 |
≤1200 |
≤1350 |
|
Volume density /kg.m3
|
200~600 |
200~600 |
200~600 |
200~600 |
200~600 |
|
Thermal conductivity /W(m.k)
|
≤0.14 (600℃) ≤0.18 (800℃) |
≤0.14 (600℃) ≤0.18 (800℃) |
≤0.18 (800℃) ≤0.22 (1000℃) |
≤0.18 (800℃) ≤0.22 (1000℃) |
≤0.88 (1000℃) ≤0.28 (1200℃) |
|
Heating shrinkage ／％ |
≤1.5 (900℃,24H) |
≤1.5 (1000℃,24H) |
≤1.5 (1100℃,24H) |
≤1.5 (1200℃,24H) |
≤1.5 (1300℃,24H) |
|
General size |
600mmX400mmX(10-50)mm 900mmX600mmX(10-50)mm |
||||
