Product description

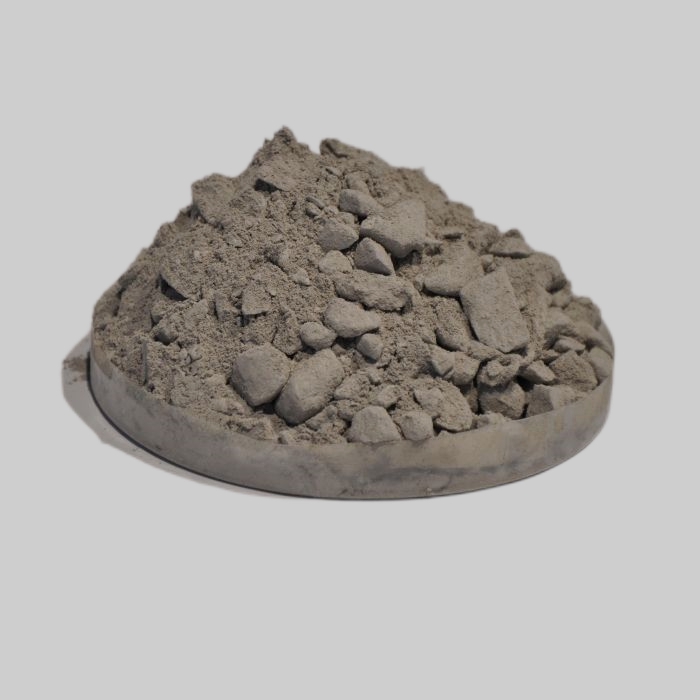

The high strength castable refractory lining is prepared by adding special grade aluminum bauxite clinker or corundum as aggregate and powder, adding binder, admixture and heat-resistant stainless steel fiber. It has the characteristics of high compressive strength, high flexural strength, thermal shock resistance, wear resistance and volume stability. Such high strength castable refractory is suitable for furnace wall, furnace roof, furnace of cemented bed boiler, kiln mouth, cooling machine and feed tank of cement kiln. And other parts.
Applications of castable refractory lining:
Refractory castables are used in various heating furnaces, soaking furnaces, circulating fluidized bed boilers, waste incinerators, waste heat power generation boilers, hot blast furnaces, continuous casting tundish, hot metal tanks and tapping troughs, etc.
Physical and chemical index of castable refractory lining
|
Brands |
GL-85 |
GL-70 |
GL-60 |
NT-50 |
NT-42 |
|
Al2O3 , /% ≥ |
85 |
70 |
60 |
50 |
42 |
|
CaO /% ≤ |
- |
- |
- |
- |
- |
|
Refractoriness/ ℃ ≥ |
1780 |
1720 |
1700 |
1660 |
1640 |
|
Test temperature after burning is not more than ±1%(Insulation3h)/℃ |
1500 |
1450 |
1400 |
1400 |
1350 |
|
Compressive strength (after drying at 110±5°C)/Mpa ≥ |
35 |
35 |
30 |
30 |
25 |
|
Flexural strength (after drying at 110±5°C)/Mpa ≥ |
5 |
5 |
4 |
4 |
3.5 |
Packages
Factory introduction

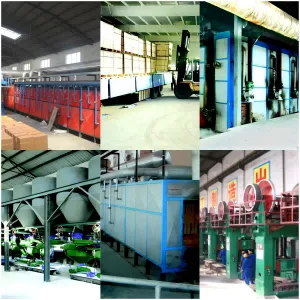

Zhengzhou Caihua Kiln Masonry Installation Co., Ltd, be called for short of CH Refractories was founded in 1984, have advanced process equipment and raw material preparation system.

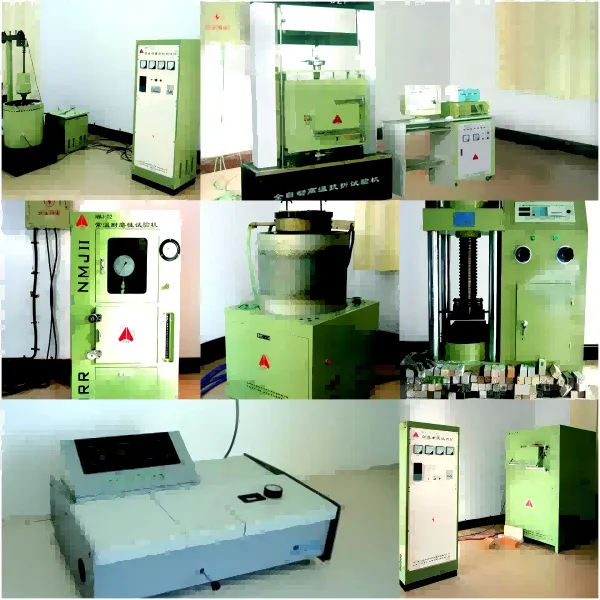

A full set of refractories conventional testing equipment, can ensure the quality before sending to customers.

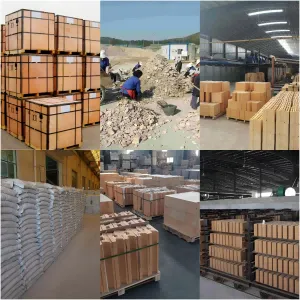

CH Refractories mainly produce refractory materials for metallurgical, coking, cement industry, electric power industry, chemical and general industrial furnaces. Annual production of a variety of shaped and unshaped refractory materials 120,000 tons. The refractory products exported to Middle east, South America, Middle Asia, Southeast Asia, Africa and other regions.
FAQ
Q: What is Foreign Trade-Express?
Q: How can I get price at soonest?
Q: Can I get sample for testing?
Q: What is MOQ of your product?
Q: How can you guarantee your products quality
Q: Which countries you mainly exporting to?
Q: How long is the production time?
Q: What payment term you can accept?
Q: Can you do OEM? Or customized packages?
Q: Can I visit your factory?
