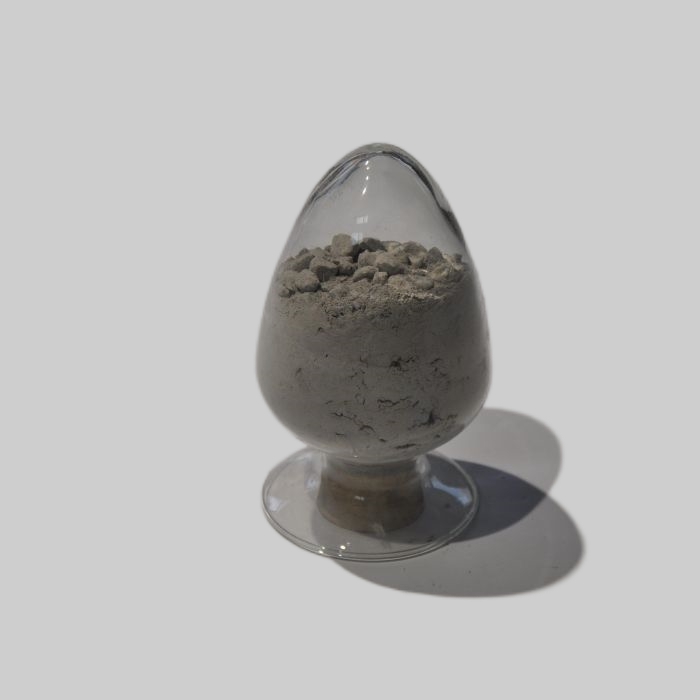

Product description
Castable refractory mix used in areas subject to large mechanical forces or strong thermal shocks, if an appropriate amount of stainless steel fiber is added, the toughness of the material will be significantly increased. In insulating castable refractory mix, adding inorganic fibers can not only enhance the toughness, but also help to improve its thermal insulation properties. Since the basic material composition (such as aggregates and powders, admixtures, binders and admixtures), setting and hardening process, construction methods, etc. of refractory castables are similar to concrete in civil engineering, it was also called refractory castables. Concrete.
Applications of castable refractory mix:
The production process of refractory castables is simple, labor-saving and energy-saving, with high construction efficiency and good quality. It can be prepared on site or materials with excellent performance can be selected as needed. Therefore, castable refractory mix is an unshaped refractory material that is used in large amounts and has a wide range of applications in furnace construction projects.
Physical and chemical index of castable refractory mix
|
Brands |
GL-85 |
GL-70 |
GL-60 |
NT-50 |
NT-42 |
|
Al2O3 , /% ≥ |
85 |
70 |
60 |
50 |
42 |
|
CaO /% ≤ |
- |
- |
- |
- |
- |
|
Refractoriness/ ℃ ≥ |
1780 |
1720 |
1700 |
1660 |
1640 |
|
Test temperature after burning is not more than ±1%(Insulation3h)/℃ |
1500 |
1450 |
1400 |
1400 |
1350 |
|
Compressive strength (after drying at 110±5°C)/Mpa ≥ |
35 |
35 |
30 |
30 |
25 |
|
Flexural strength (after drying at 110±5°C)/Mpa ≥ |
5 |
5 |
4 |
4 |
3.5 |

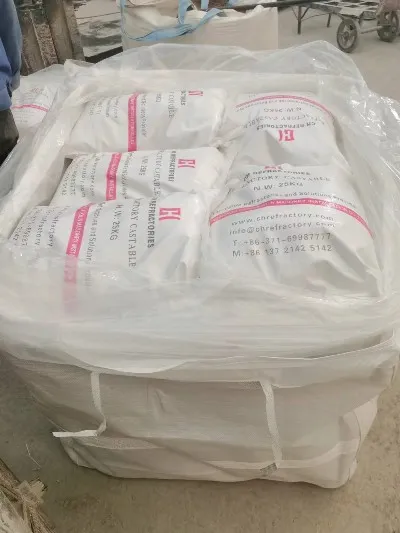

Packages
Factory introduction

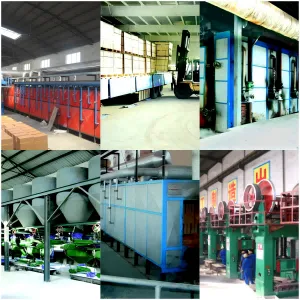

Zhengzhou Caihua Kiln Masonry Installation Co., Ltd, be called for short of CH Refractories was founded in 1984, have advanced process equipment and raw material preparation system.

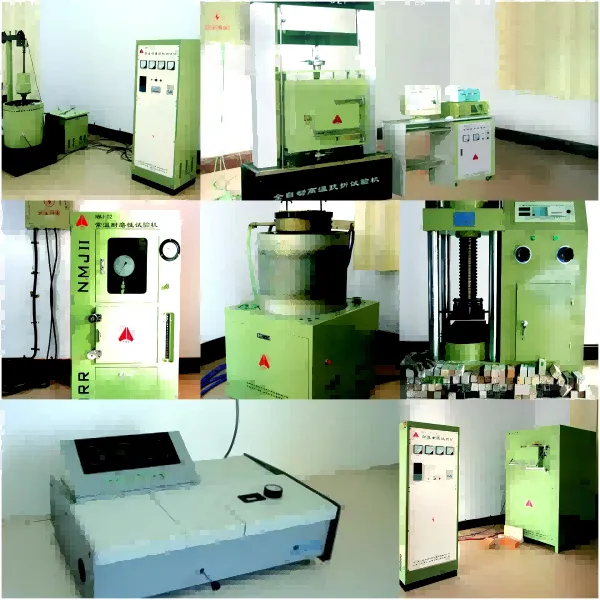

A full set of refractories conventional testing equipment, can ensure the quality before sending to customers.

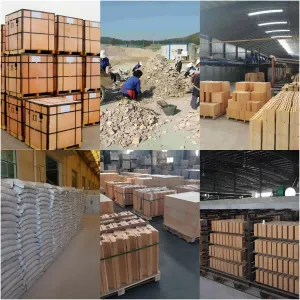

CH Refractories mainly produce refractory materials for metallurgical, coking, cement industry, electric power industry, chemical and general industrial furnaces. Annual production of a variety of shaped and unshaped refractory materials 120,000 tons. The refractory products exported to Middle east, South America, Middle Asia, Southeast Asia, Africa and other regions.
FAQ
Q: What is Foreign Trade-Express?
Q: How can I get price at soonest?
Q: Can I get sample for testing?
Q: What is MOQ of your product?
Q: How can you guarantee your products quality
Q: Which countries you mainly exporting to?
Q: How long is the production time?
Q: What payment term you can accept?
Q: Can you do OEM? Or customized packages?
Q: Can I visit your factory?
