Product description

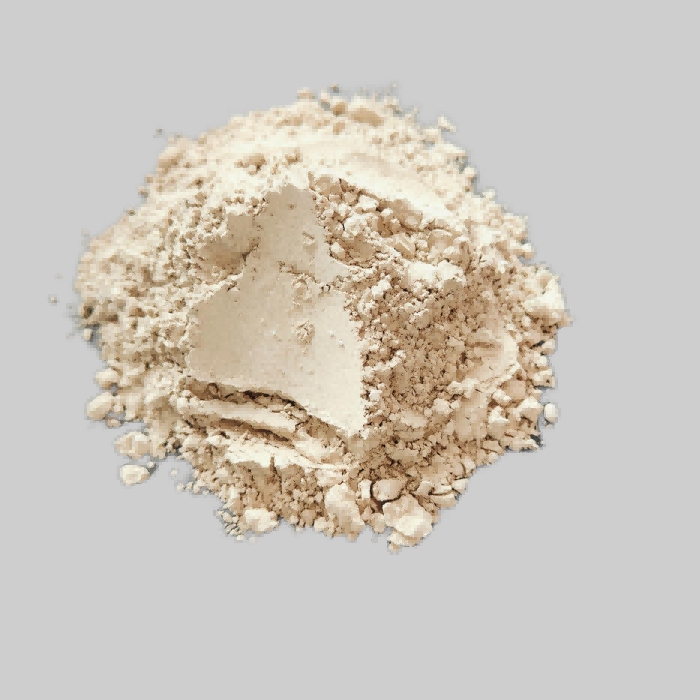

High heat refractory cement is also very useful in boiler construction, and refractory cement is also one of the most needed refractory castables, refractory cement is also called aluminate cement. The raw material of aluminate cement is bauxite and limestone, which is made by calcination, and the clinker with calcium aluminate as the main component and alumina content of about 50% is then ground into hydraulic cementing material, which is also a kind of special cement.
The thermal stability of refractory cement is good, the aggregate is almost clinker, the expansion and the reduction of the cement phase is low, so the thermal expansion of masonry is smaller than that of brick, the temperature stress is relatively small, and the structure also has a variety of mesh, needle, chain crystalline phase, resistance to temperature is relatively strong, such as for pouring the pit furnace mouth and the furnace cover, the furnace life can be extended to one and a half years; And refractory brick and refractory brick of the same texture is about the same, but because the refractory cement is not net more sintering, the initial smelting shrinkage is larger, so the load softening point is slightly lower than the refractory brick, but anyway, using refractory cement is still better than the refractory brick..

Chemical and physical index of high heat refractory cement
|
Brand |
CA50- A600 |
CA50-A700 |
CA50-A900 |
CA-70 |
|
|
Chemical Composition (%) |
Al2O3 |
≥50 |
≥51 |
≥53.5 |
68.5-70.5 |
|
SiO2 |
≤7.8 |
≤7.5 |
≤5.5 |
≤0.5 |
|
|
Fe2O3 |
≤2.5 |
≤2.5 |
≤2.5 |
≤0.2 |
|
|
CaO |
/ |
/ |
/ |
28.5-30.5 |
|
|
MgO |
/ |
/ |
/ |
≤0.4 |
|
|
R2O |
≤0.4 |
≤0.4 |
≤0.4 |
≤0.4 |
|
|
S |
≤0.1 |
≤0.1 |
≤0.1 |
/ |
|
|
Cl |
≤0.1 |
≤0.1 |
≤0.1 |
/ |
|
|
325 mesh residue on sieve(%) |
≤15 |
≤12 |
≤8 |
/ |
|
|
d50(μm) |
/ |
/ |
/ |
11-14 |
|
|
-45μm(%) |
/ |
/ |
/ |
≤8.0 |
|
|
Specific Surface (m2/kg) |
≥300 |
≥320 |
≥350 |
/ |
|
|
Setting time(h:min) |
Initial setting (min) |
≥45 |
≥60 |
≥90 |
120-180 |
|
Final Setting (min) |
≤6 |
≤6 |
≤6 |
150-240 |
|
|
Cold Modulus of Rupture (MPa) |
24 hour |
≥6 |
≥6.5 |
≥8 |
7.5-10 |
|
72 hour |
≥7 |
≥7.5 |
≥10 |
10-12 |
|
|
Cold Crushing Strength (Mpa) |
24hour |
≥45 |
≥55 |
≥72 |
40-50 |
|
72hour |
≥55 |
≥65 |
≥82 |
45-55 |
|

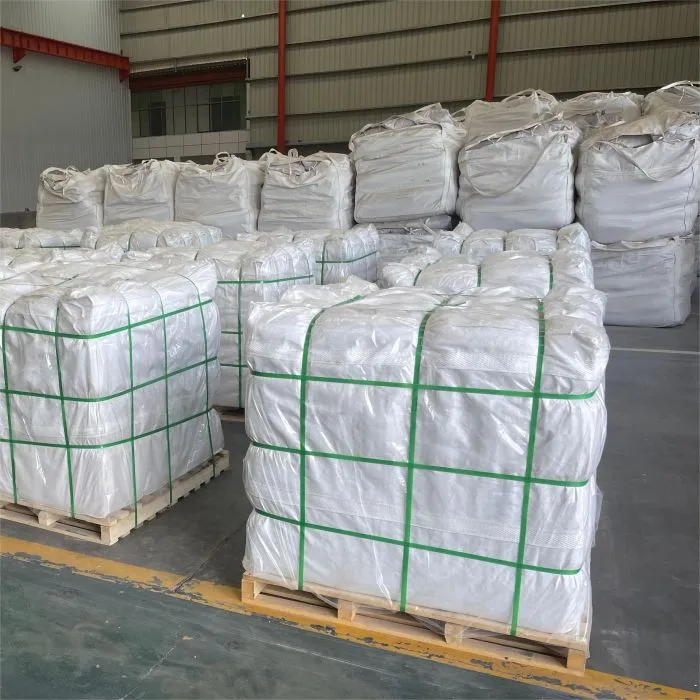

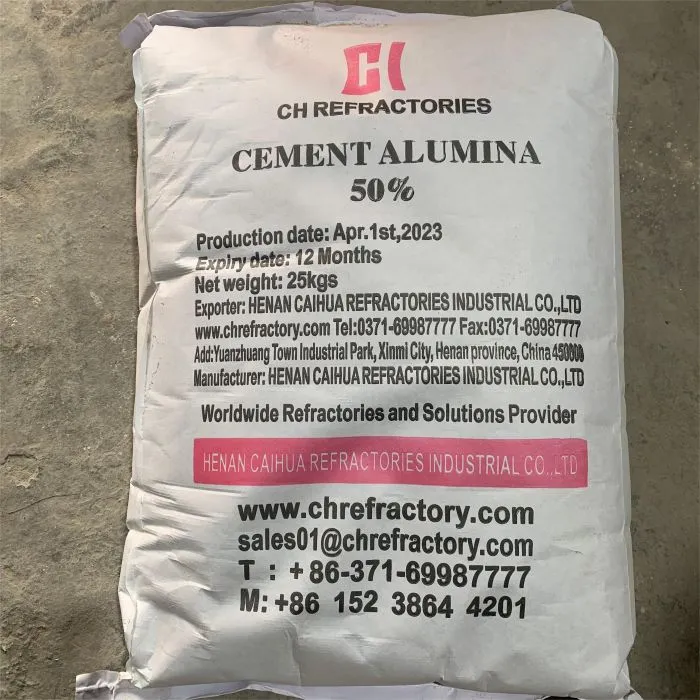

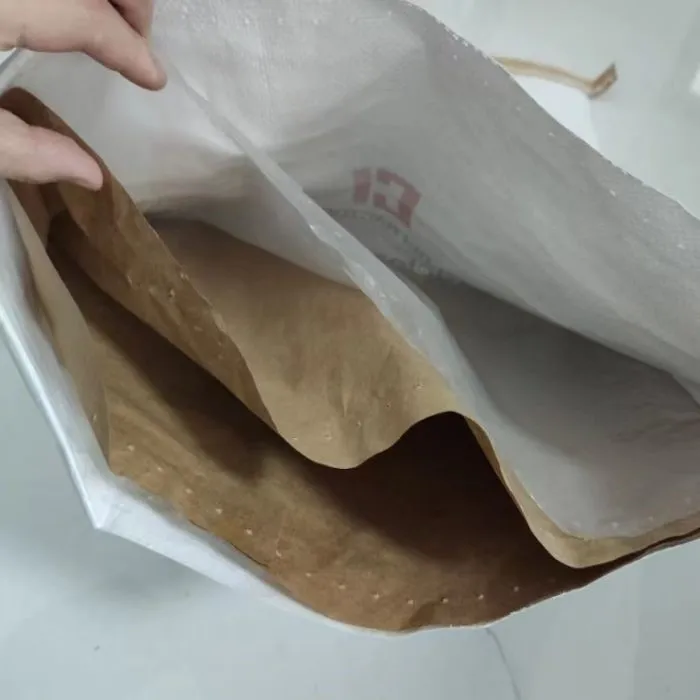

Packages:

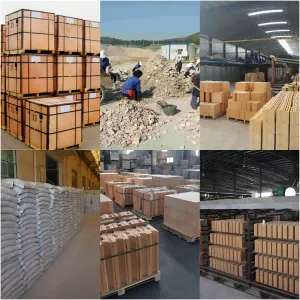

CH Refractories was founded in 1984, have advanced process equipment and raw material preparation system, and a full set of refractories conventional testing equipment, can ensure the quality before sending to customers.
CH Refractories mainly produce refractory materials for metallurgical, coking, cement industry, electric power industry, chemical and general industrial furnaces. Annual production of a variety of shaped and unshaped refractory materials 120,000 tons. The refractory products exported to Middle east, South America, Middle Asia, Southeast Asia, Africa and other regions.

01
High Quality
CH Refractories producing products according to the ISO 9001 international standard
02
Advanced Equipment
CH Refractories have advanced refractory products manufacturing process equipment and raw material preparation system, batching using electronic batching car, mixing using 750 forced mixer
03
Professional Team
More than 30 years manufacturing experience and 10 years exporting experience
04
Custom Service
Integrated factory strength to support all kinds of refractory products customization
