Product description

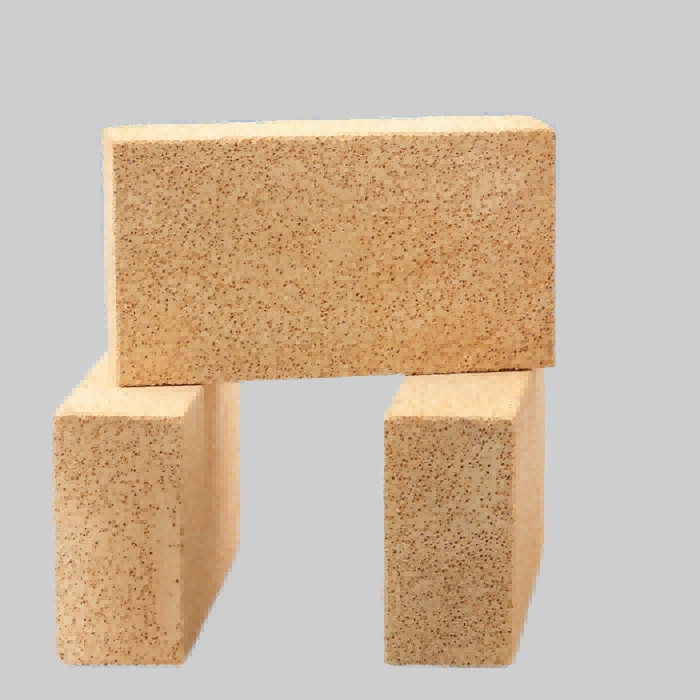

Insulating fire bricks k23: refers to the aluminum content of 30%-46% light firebrick, with clay clinker or light clinker and plastic clay as the main raw material, using combustible method production. The bulk density is 0.75-1.20g/cm3, the compressive strength is 2.0-5.9MPa, the thermal conductivity is 0.221-0.442W (m.k), the service temperature is 1200-1400℃, used for various industrial furnaces do not contact the melt and no corrosive gas action of the heat insulation layer material.
Advantages of insulating fire bricks k23:
Insulating fire bricks k23 can resist acid and alkali corrosion and metal oxide corrosion. It is suitable for various industrial environments and can ensure the integrity and stability of the furnace structure.
Application of insulating fire bricks k23
Used in refractory hot surface linings and backing insulation layers of other refractory materials, Refractory insulation materials for industrial furnaces such as cracking furnace tubular heating furnaces, reforming furnaces, hot blast furnaces, ladle insulation linings, shuttle kilns, tunnel kilns, ceramic track kilns, and push plate kilns in the steel, metallurgical, and chemical industries.
Physical and chemical index of insulating fire bricks k23
|
Brands |
Clay Insulation Brick |
|||
|
/ |
CH-NG-0.5 |
CH-NG-0.6 |
CH-NG-0.8 |
CH-NG-1.0 |
|
BD g/cm3 ≥ |
0.5 |
0.6 |
0.8 |
1 |
|
CCS/Mpa ≥ |
1.5 |
2 |
2.5 |
3.4 |
|
The reheating line changes by no more than 2% of the test temperature/℃≤ |
1250 |
1300 |
1350 |
1350 |
|
Thermal conductivity average temperature 350±25℃(W/m.k) |
0.18 |
0.25 |
0.35 |
0.5 |
|
0.1MpaRefractoriness under load (RUL)/℃ ≥ |
1160 |
1250 |
1280 |
1300 |
|
Fe2O3% |
2.5 |
2.5 |
2 |
2 |
|
Maximum use temperature/℃ |
1150 |
1200 |
1280 |
1300 |

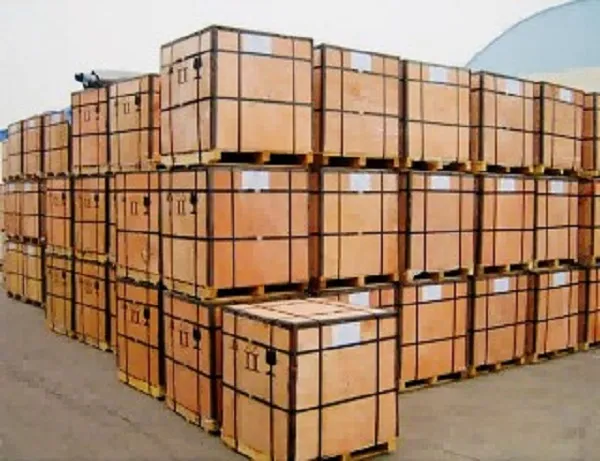

Packages and delivery:
Factory introduction
Zhengzhou Caihua Kiln Masonry Installation Co., Ltd, be called for short of CH Refractories was founded in 1984, have advanced process equipment and raw material preparation system.
A full set of refractories conventional testing equipment, can ensure the quality before sending to customers. Annual production of a variety of shaped and unshaped refractory materials 120,000 tons.
CH Refractories mainly produce refractory materials for metallurgical, coking, cement industry, electric power industry, chemical and general industrial furnaces. The refractory products exported to Middle east, South America, Middle Asia, Southeast Asia, Africa and other regions.
FAQ
Q: What is Foreign Trade-Express?
Q: How can I get price at soonest?
Q: Can I get sample for testing?
Q: What is MOQ of your product?
Q: How can you guarantee your products quality
Q: Which countries you mainly exporting to?
Q: How long is the production time?
Q: What payment term you can accept?
Q: Can you do OEM? Or customized packages?
Q: Can I visit your factory?
