Product description

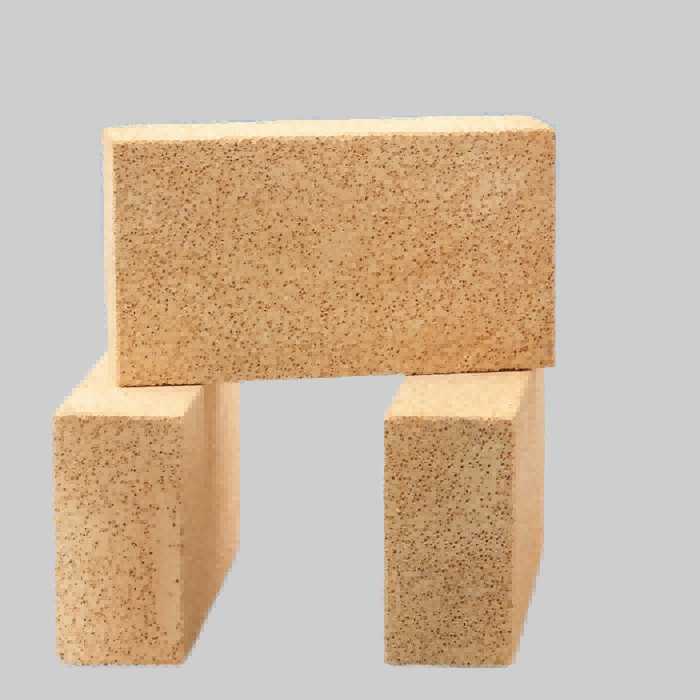

K 23 brick is made of local top grade fireclay materials under the high temperature according to the lastest national standard. The temperature in the 1200-1400 ℃. Ingredients are mixed with water made of plastic material or mud, mud with extrusion or pouring shape, 1250-1350 ℃ after dry burning oxidation atmosphere. The volume density of commonly used insulated clay brick is 0.75-1.2 g/cm3.
Advantages of k 23 brick:
Erosion resistance: High alumina poly light bricks can resist acid and alkali corrosion and metal oxide corrosion. It is suitable for various industrial environments and can ensure the integrity and stability of the furnace structure.
High temperature resistance: High-alumina polylight bricks use high-purity alumina as the main component and have excellent high-temperature resistance. In high temperature environments, it can maintain stable physical and chemical properties, is not prone to ablation and deformation, and extends its service life.
Application of k 23 brick
Used in refractory hot surface linings and backing insulation layers of other refractory materials, Refractory insulation materials for industrial furnaces such as cracking furnace tubular heating furnaces, reforming furnaces, hot blast furnaces, ladle insulation linings, shuttle kilns, tunnel kilns, ceramic track kilns, and push plate kilns in the steel, metallurgical, and chemical industries.
Physical and chemical index of k 23 brick
|
Brands |
CH-LG-0.6 |
CH-LG-0.8 |
CH-LG-1.0 |
|
BD g/cm3 ≥ |
0.6 |
0.8 |
1 |
|
CCS /Mpa ≥ |
1.96 |
2.94 |
4 |
|
The reheating line changes by no more than 2% of the test temperature /℃≤ |
1350 |
1400 |
1450 |
|
Thermal conductivity average temperature 350±25℃(W/m.k) |
0.25 |
0.32 |
0.45 |
|
0.1MpaRUL/℃ ≥ |
1300 |
1350 |
1380 |
|
Al2O3 /%≥ |
48 |
48 |
48 |
|
Fe2O3 /% |
1.8 |
1.6 |
1.5 |
|
Maximum use temperature /℃ |
1300 |
1350 |
1380 |
Packages and delivery:
Because k 23 brick with smaller bulk density whose strength is not as strong as heavy weight fire bricks, when delivering, CH Refractories will package insulating firebricks with special packages to protect insulating clay bricks from damage.
Factory introduction

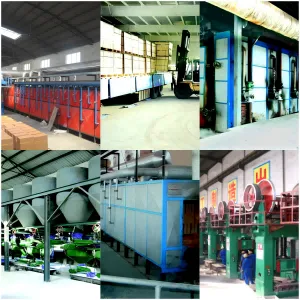

Zhengzhou Caihua Kiln Masonry Installation Co., Ltd, be called for short of CH Refractories was founded in 1984, have advanced process equipment and raw material preparation system.

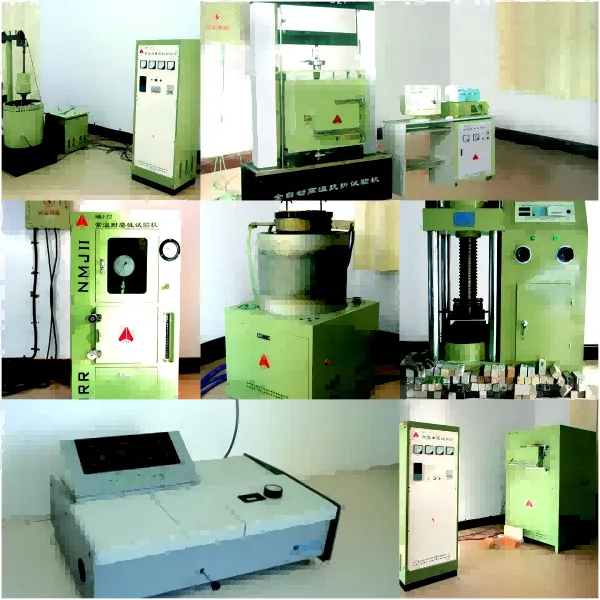

A full set of refractories conventional testing equipment, can ensure the quality before sending to customers. Annual production of a variety of shaped and unshaped refractory materials 120,000 tons.
CH Refractories mainly produce refractory materials for metallurgical, coking, cement industry, electric power industry, chemical and general industrial furnaces. The refractory products exported to Middle east, South America, Middle Asia, Southeast Asia, Africa and other regions.
FAQ
Q: What is Foreign Trade-Express?
Q: How can I get price at soonest?
Q: Can I get sample for testing?
Q: What is MOQ of your product?
Q: How can you guarantee your products quality
Q: Which countries you mainly exporting to?
Q: How long is the production time?
Q: What payment term you can accept?
Q: Can you do OEM? Or customized packages?
Q: Can I visit your factory?
