Product description

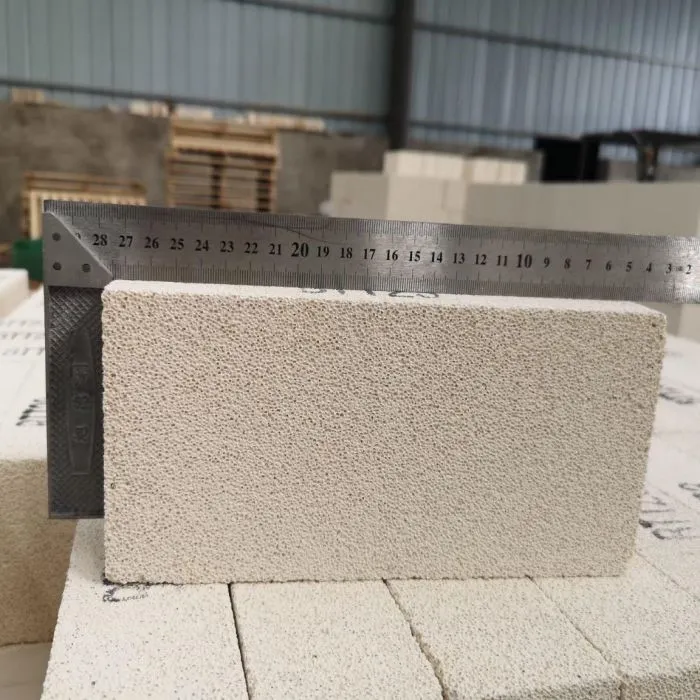

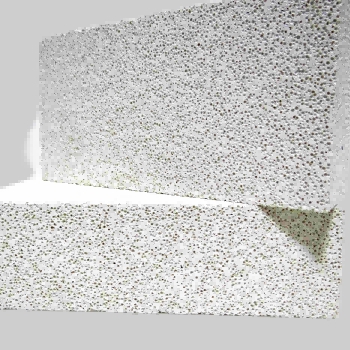

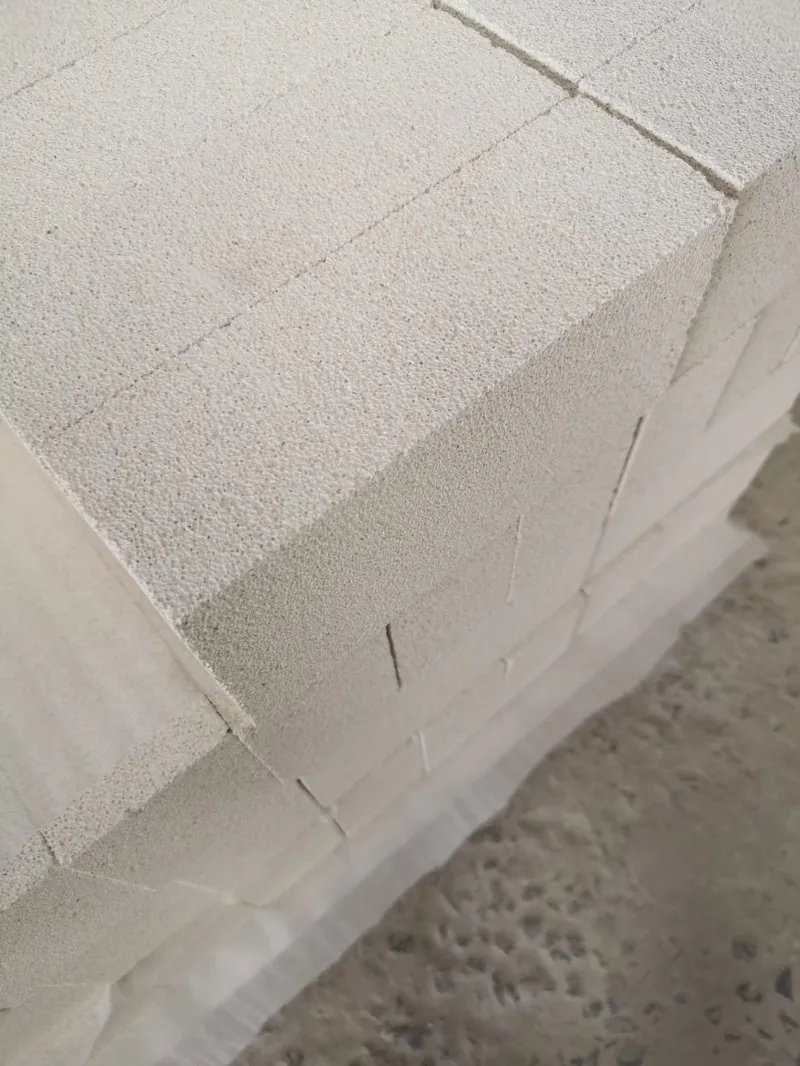

Mullite insulation brick: refers to the Al2O3 content of 50%-85% light firebrick, with mullite as the main crystalline phase and the combination of high quality insulation materials. The main characteristics are: high strength of high temperature structure, low creep at high temperature, small thermal expansion coefficient, strong floc resistance, excellent thermal shock resistance. According to the different aluminum content and volume density, the use of temperature of 1350-1700℃, can directly contact the flame furnace working layer lining.
Advantages of mullite insulation brick:
Low thermal conductivity, low hot melt, low impurity content, fire resistance and temperature resistance, good thermal shock stability, significant energy saving effect, etc.
Applications of mullite insulation brick:
◆Glass industries iron & steel industries
◆Ceramics industries non-ferrous metals industries
◆Heat surface fireproof lining other fire-proof back lining
◆Electrolytic Aluminum industries power generation industries
Physical and chemical index of mullite insulation brick
|
Brands |
JM23-0.6 |
JM23-0.8 |
JM23-1.0 |
JM26-0.6 |
JM26-0.8 |
JM26-1.0 |
JM28-1.0 |
JM28-1.2 |
|
Bulk density g/cm3 ≥ |
0.6 |
0.8 |
1.0 |
0.6 |
0.8 |
1.0 |
1.0 |
1.2 |
|
CCS/Mpa ≥ |
1.5 |
2.5 |
4.2 |
1.5 |
3.2 |
4.0 |
4.0 |
5 |
|
thermal shock resistance(1100℃)/times ≥ |
10 |
20 |
20 |
10 |
20 |
20 |
20 |
20 |
|
The reheating line changes by no more than 1% of the test temperature ℃/%≤ |
1300x12 |
1300x12 |
1300x12 |
1400x12 |
1400x12 |
1400x12 |
1500x12 |
1500x12 |
|
Thermal conductivity average temperature350±25℃(W/m.k) |
0.2 |
0.23 |
0.33 |
0.2 |
0.25 |
0.33 |
0.35 |
0.4 |
|
Al2O3%≥ |
48 |
49 |
50 |
55 |
57 |
57 |
60 |
67 |
|
Fe2O3% |
0.9 |
0.9 |
0.9 |
0.8 |
0.8 |
0.8 |
0.7 |
0.6 |
Packages and delivery:
