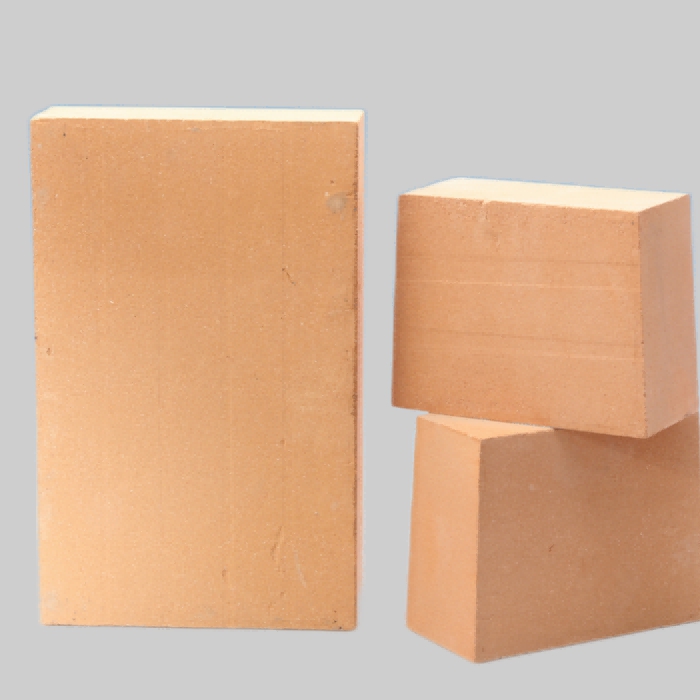

Product description
K 26 firebrick is also named high-aluminium heat insulation brick, are used in building heat insulating walls or heat preserving walls, which is basically for preserving or insulation heat. Refractory insulation thermal brick contains more than 48% alumina oxide. This kind of thermal brick for sale does not directly exposed to high temperature inside kilns or furnaces, thermal brick only built closely to the kiln wall as insulations.
Advantages of k 26 firebrick:
Low thermal conductivity, low hot melt, low impurity content, fire resistance and temperature resistance, good thermal shock stability, significant energy saving effect, etc.
Application of k 26 firebrick
Used in refractory hot surface linings and backing insulation layers of other refractory materials, Refractory insulation materials for industrial furnaces such as cracking furnace tubular heating furnaces, reforming furnaces, hot blast furnaces, ladle insulation linings, shuttle kilns, tunnel kilns, ceramic track kilns, and push plate kilns in the steel, metallurgical, and chemical industries.
Physical and chemical index of k 26 firebrick
|
Brands |
Clay Insulation Brick |
|||
|
/ |
CH-NG-0.5 |
CH-NG-0.6 |
CH-NG-0.8 |
CH-NG-1.0 |
|
BD g/cm3 ≥ |
0.5 |
0.6 |
0.8 |
1 |
|
CCS/Mpa ≥ |
1.5 |
2 |
2.5 |
3.4 |
|
The reheating line changes by no more than 2% of the test temperature/℃≤ |
1250 |
1300 |
1350 |
1350 |
|
Thermal conductivity average temperature 350±25℃(W/m.k) |
0.18 |
0.25 |
0.35 |
0.5 |
|
0.1MpaRefractoriness under load (RUL)/℃ ≥ |
1160 |
1250 |
1280 |
1300 |
|
Fe2O3% |
2.5 |
2.5 |
2 |
2 |
|
Maximum use temperature/℃ |
1150 |
1200 |
1280 |
1300 |

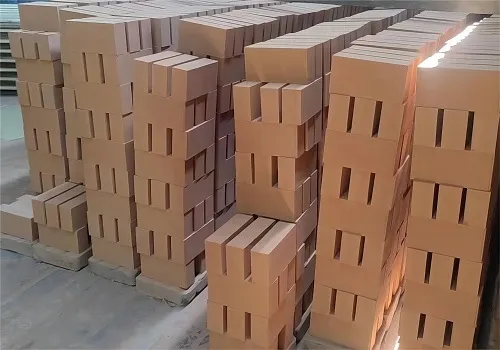

Packages and delivery:
Because k 26 firebrick with smaller bulk density whose strength is not as strong as heavy weight fire bricks, when delivering, CH Refractories will package insulating firebricks with special packages to protect insulating clay bricks from damage.
Products Description
Our latest projects
Shanghai Jwell machinery Workshop co-operation projects
Shanghai Jwell machinery Workshop co-operation projects
Lorem ipsum dolor sit amet,consectetur adipisicing elit. Delectus,natus numquam unde qui pariatur porro necessitatibus harum libero commodi rem veritatis in nisi vero odit tenetur esse quidem inventore ex. Sunt nam mollitia,accusantium voluptates
Shanghai Jwell machinery Workshop co-operation projects
Lorem ipsum dolor sit amet,consectetur adipisicing elit. Delectus,natus numquam unde qui pariatur porro necessitatibus harum libero commodi rem veritatis in nisi vero odit tenetur esse quidem inventore ex. Sunt nam mollitia,accusantium voluptates
Shanghai Jwell machinery Workshop co-operation projects
Lorem ipsum dolor sit amet,consectetur adipisicing elit. Delectus,natus numquam unde qui pariatur porro necessitatibus harum libero commodi rem veritatis in nisi vero odit tenetur esse quidem inventore ex. Sunt nam mollitia,accusantium voluptates
Factory introduction

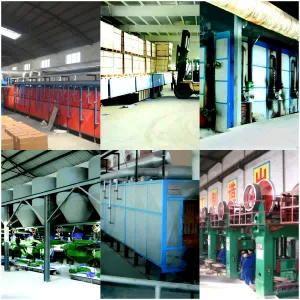

Zhengzhou Caihua Kiln Masonry Installation Co., Ltd, be called for short of CH Refractories was founded in 1984, have advanced process equipment and raw material preparation system.

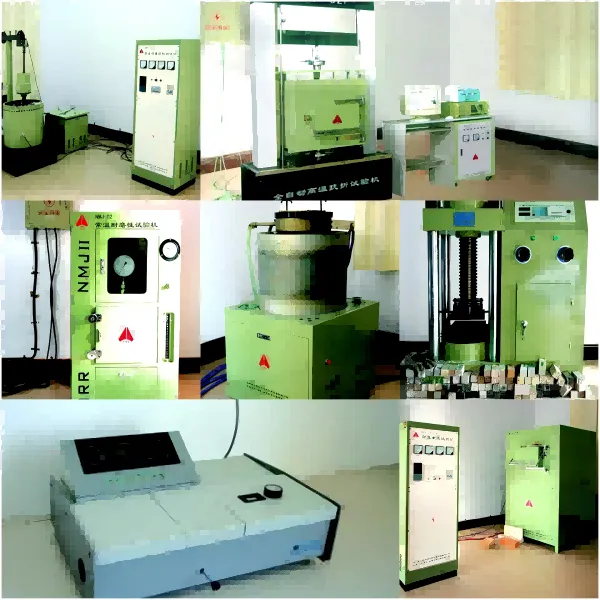

A full set of refractories conventional testing equipment, can ensure the quality before sending to customers. Annual production of a variety of shaped and unshaped refractory materials 120,000 tons.
CH Refractories mainly produce refractory materials for metallurgical, coking, cement industry, electric power industry, chemical and general industrial furnaces. The refractory products exported to Middle east, South America, Middle Asia, Southeast Asia, Africa and other regions.
