Product description
Light weight k23 soft fire brick is also named high-aluminium heat insulation brick, are used in building heat insulating walls or heat preserving walls, which is basically for preserving or insulation heat. Refractory insulation thermal brick contains more than 48% alumina oxide.
Advantages of CH Refractories manufactured k23 soft fire brick:
Excellent thermal insulation properties: insulated firebrick have low thermal conductivity, which can effectively isolate heat transfer inside and outside the furnace and improve energy utilization efficiency. At the same time, it can reduce the temperature rise of the outer wall, protect the furnace structure and reduce heat
High temperature resistance: High-alumina polylight bricks use high-purity alumina as the main component and have excellent high-temperature resistance. In high temperature environments, it can maintain stable physical and chemical properties, is not prone to ablation and deformation, and extends its service life.
Physical and chemical index of k23 soft fire brick
|
Brands |
CH-LG-0.6 |
CH-LG-0.8 |
CH-LG-1.0 |
|
BD g/cm3 ≥ |
0.6 |
0.8 |
1 |
|
CCS /Mpa ≥ |
1.96 |
2.94 |
4 |
|
The reheating line changes by no more than 2% of the test temperature /℃≤ |
1350 |
1400 |
1450 |
|
Thermal conductivity average temperature 350±25℃(W/m.k) |
0.25 |
0.32 |
0.45 |
|
0.1MpaRUL/℃ ≥ |
1300 |
1350 |
1380 |
|
Al2O3 /%≥ |
48 |
48 |
48 |
|
Fe2O3 /% |
1.8 |
1.6 |
1.5 |
|
Maximum use temperature /℃ |
1300 |
1350 |
1380 |

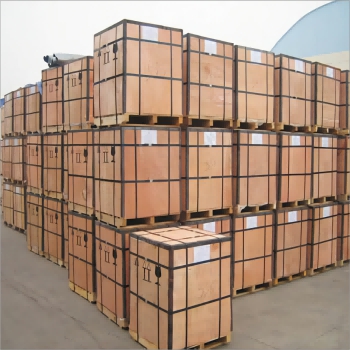

Packages and delivery:
How to control quality?
CH Refractories was founded in 1984 and have advanced refractory products manufacturing process equipment and raw material preparation system, batching using electronic batching car, mixing using 750 forced mixer, molding equipment: 2 sets 1000 tons of brick press , 4 sets 630 tons of brick press, 14 sets 400 tons of brick press , 22 sets 315 tons of brick press, 2 sets 160 tons of brick press ,8 sets 60 tons of brick press . Also have a full set of refractories conventional testing equipment, can ensure the quality before sending products to customers.
FAQ
Q: How can I get price at soonest?
Q: Can I get sample for testing?
Q: What is MOQ of your product?
Q: How can you guarantee your products quality
Q: Which countries you mainly exporting to?
Q: How long is the production time?
Q: What payment term you can accept?
Q: Can you do OEM? Or customized packages?
Q: Can I visit your factory?
Physical and chemical index of k23 soft fire brick
|
Brands |
CH-LG-0.6 |
CH-LG-0.8 |
CH-LG-1.0 |
|
BD g/cm3 ≥ |
0.6 |
0.8 |
1 |
|
CCS /Mpa ≥ |
1.96 |
2.94 |
4 |
|
The reheating line changes by no more than 2% of the test temperature /℃≤ |
1350 |
1400 |
1450 |
|
Thermal conductivity average temperature 350±25℃(W/m.k) |
0.25 |
0.32 |
0.45 |
|
0.1MpaRUL/℃ ≥ |
1300 |
1350 |
1380 |
|
Al2O3 /%≥ |
48 |
48 |
48 |
|
Fe2O3 /% |
1.8 |
1.6 |
1.5 |
|
Maximum use temperature /℃ |
1300 |
1350 |
1380 |
