Product description

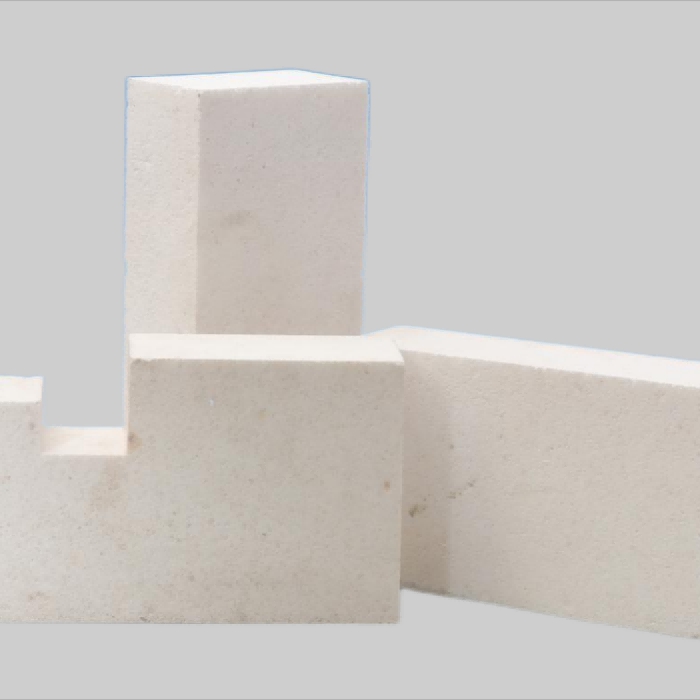

Zirconium corundum brick is also named AZS brick. It is based on three chemical components of the Al2O3-ZrO2-SiO2 ternary phase diagram and widely used for glass kiln. The glass kiln brick is arranged according to the order of its contents. Al2O3 takes A, ZrO2 takes Z, and SiO2 takes S. The national standard uses this abbreviation. For example, No.33 cast zirconia corundum brick, abbreviated as AZS-33#, No. 36 cast zirconia corundum brick, abbreviated as AZS-36#, No. 41 cast zirconia corundum brick, abbreviated as AZS-41#.
Advantages of CH Refractories manufactured AZS Brick:
Dense structure, low porosity,
It has the characteristics of high volume density, high mechanical strength and high temperature structural strength, and strong resistance to glass liquid erosion.
Application of AZS brick

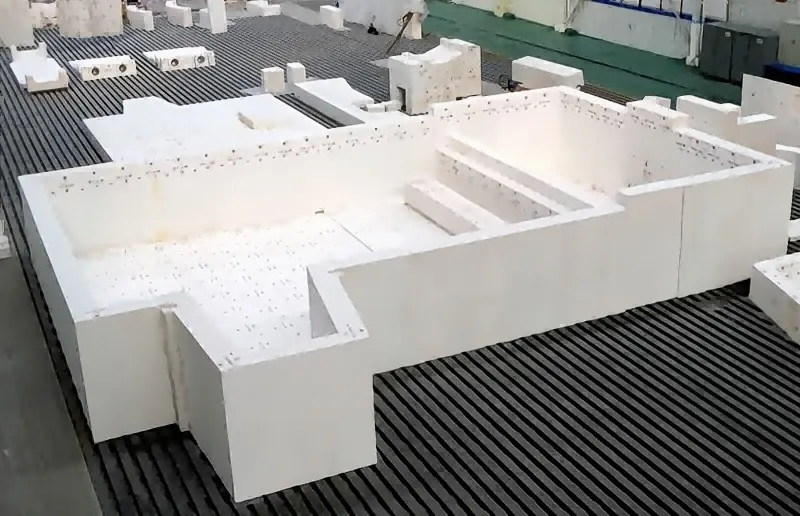

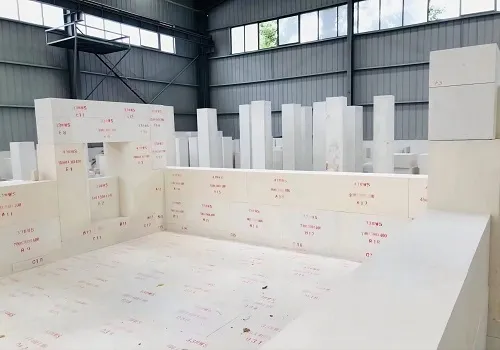

It is used as the first floor paving brick of glass industrial tank kiln or as sub-layer paving brick to build the bottom and wall of glass tank kiln and thermal equipment such as heat storage checker bricks.
Physical and chemical index of AZS Brick
|
Brand |
AZS33-Y |
AZS36-Y |
AZS41-Y |
|
|
Chemical compostion％ |
Zr02 |
32.00-36.00 |
35.00-40.00 |
40.00-44.00 |
|
Si02 |
≤16.00 |
≤14.00 |
≤13.00 |
|
|
Na20 |
≤1.45 |
≤1.45 |
≤1.30 |
|
|
Fe2O3+TiO2+CaO+MgO+Na2O+K2O |
≤2.00 |
≤2.00 |
≤2.00 |
|
|
Fe2O3+TiO2 |
≤0.30 |
≤0.30 |
≤0.30 |
|
|
Bulk density g/cm3 |
≥3. 75 |
≥3. 80 |
≥3. 95 |
|
|
Apparent porosity |
≤1.5% |
≤1.0% |
≤1.0% |
|
|
Staticanti-corrosion rate of glass liquid(normal soda-lime glassmeglass,1500℃x36h) |
≤1.50mm/24h |
≤1.40mm/24h |
≤1.30mm/24h |
|
|
Exudation temperature of vitreous phase |
≥1400℃ |
≥1400℃ |
≥1400℃ |
|
|
Bubble precipitation rate (normal soda lime glassmeglass,1300℃x10h)) |
≤2.0% |
≤1.5% |
≤1.0% |
|
|
Vitreous phase seepage amount(1500°Cx4h) |
≤2.0% |
≤3.0% |
≤3.0% |
|
|
Volume weight |
PT,QX |
≥3. 45g/cm3 |
≥3. 45g/cm3 |
≥3. 55g/cm3 |
|
ZWS |
≥3. 60g/cm3 |
≥3. 70g/cm3 |
≥3. 85g/cm3 |
|
|
WS |
≥3. 70g/cm3 |
≥3. 80g/cm3 |
≥3. 95g/cm3 |
|
FAQ
Q: What is Foreign Trade-Express?
Q: How can I get price at soonest?
Q: Can I get sample for testing?
Q: What is MOQ of your product?
Q: How can you guarantee your products quality
Q: Which countries you mainly exporting to?
Q: How long is the production time?
Q: What payment term you can accept?
Q: Can you do OEM? Or customized packages?
Q: Can I visit your factory?
